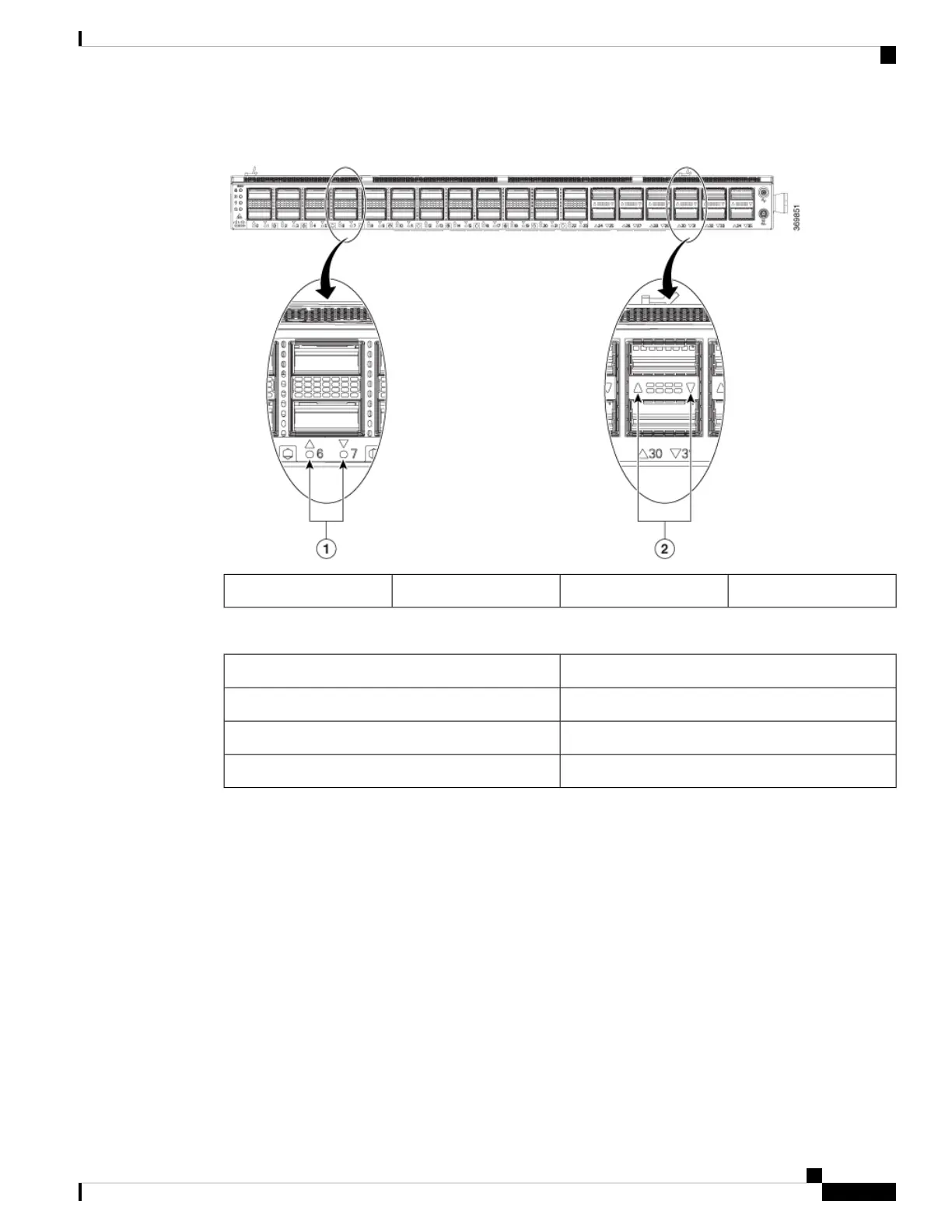

Figure 22: Port Status LED - Cisco 8201 Chassis
100G Port Status LED2400G Port Status LED1
Table 6: Port Status LEDs (one per port)
DescriptionLED Color
Port is administratively shut down.Off
Port is administratively enabled and the link is down.Amber
Port is administratively enabled and the link is up.Green
