1-12
Cisco Video Surveillance 8620/8630 IP Camera Reference Guide
Chapter 1 Getting Started
Hardware Installation

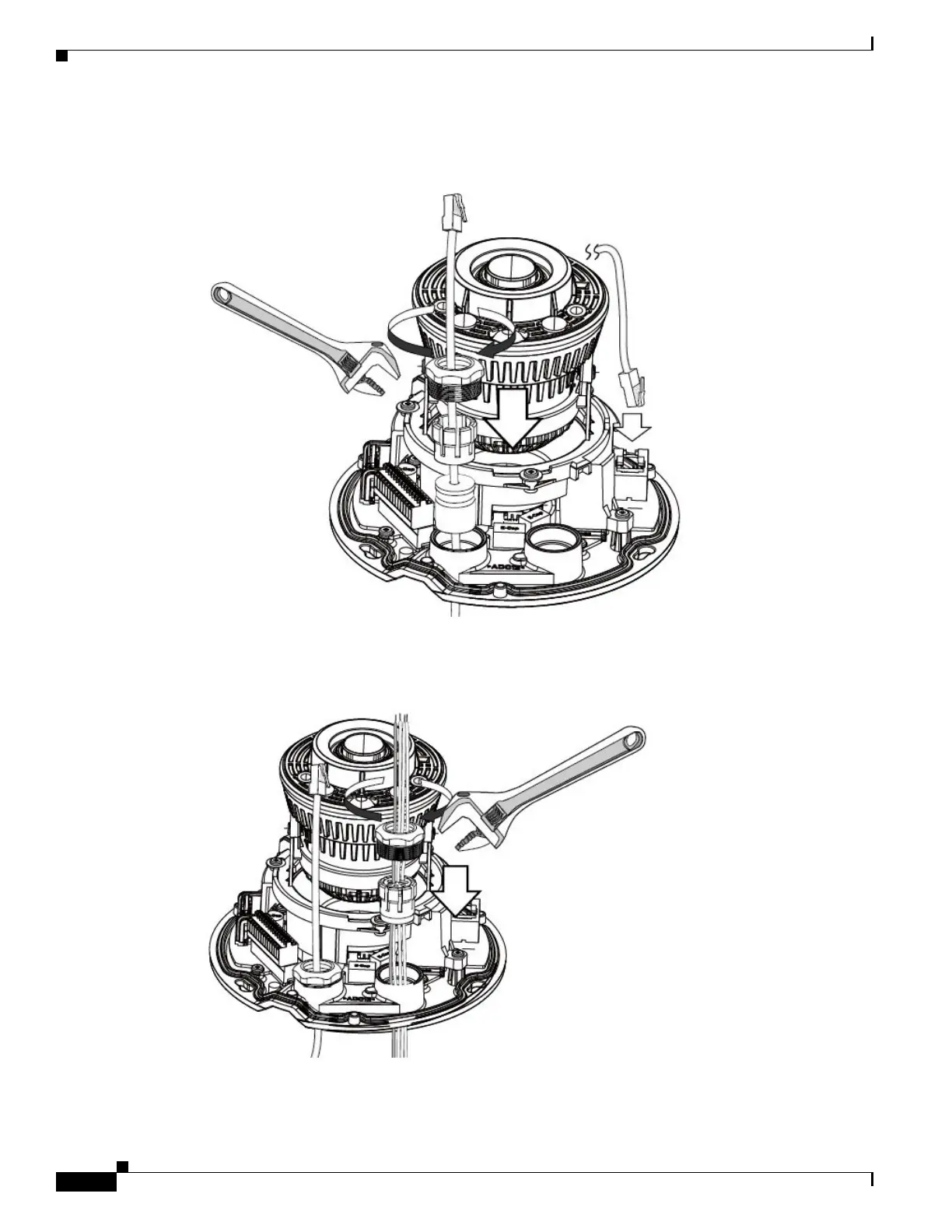

Step 6 Use a crescent wrench to tighten the hex nut from top. Make sure the waterproof cable gland is properly
installed. Connect the Ethernet cable to the RJ45 socket.
Step 7 Pass the DI/DO, audio, and power wires through the waterproof cable gland components, and through
the rubber seal as shown below. Tighten the cable gland components using a crescent wrench.
