Chapter 3 Connecting the Router
Connecting an xDSL Line

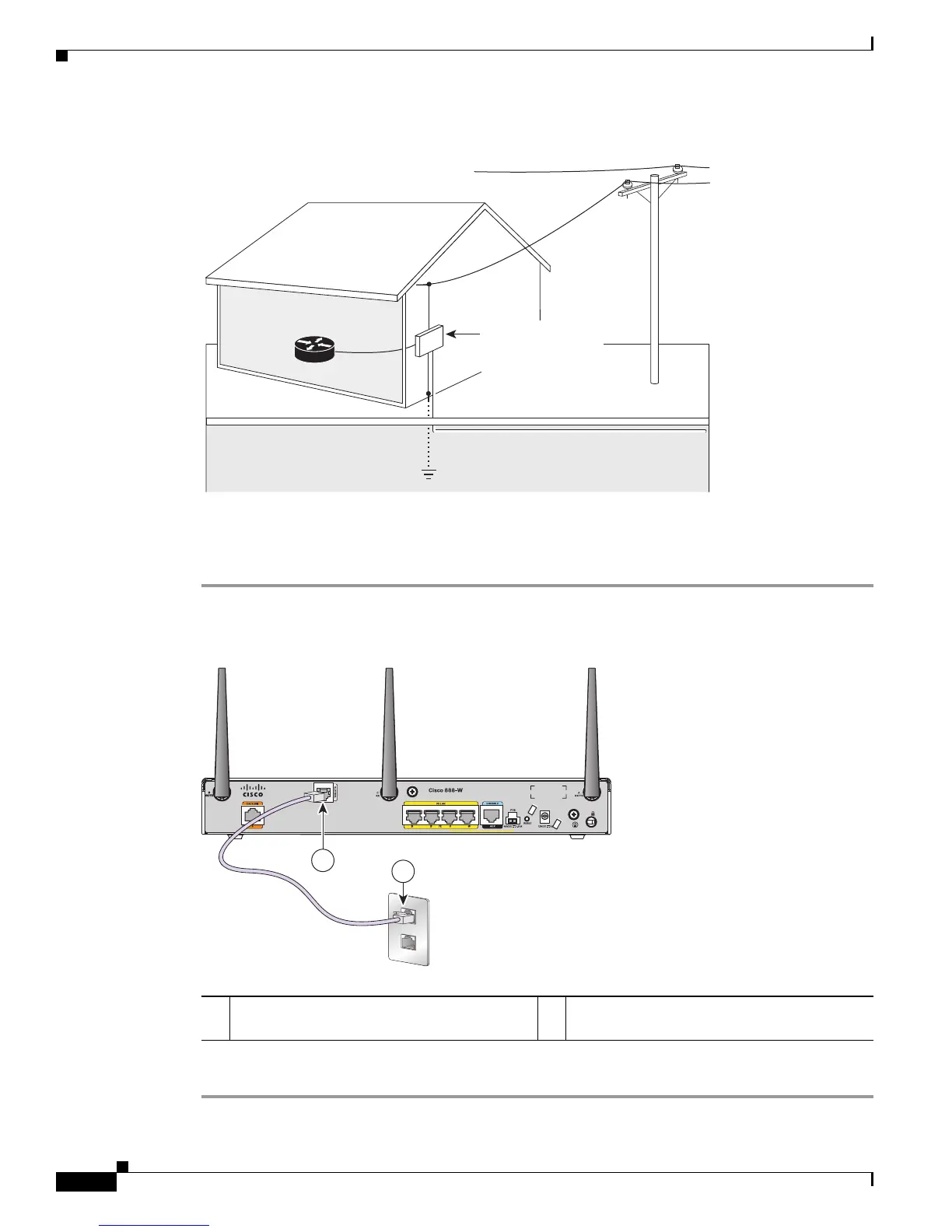

Figure 3-22 Primary Protection Device Location
To connect the router to a global industry standard symmetrical high-speed DSL (G.SHDSL) line,
very-high-speed digital subscriber line 2 (VDSL2) port, or an ADSL2+ line, follow these steps:
Step 1 Connect one end of an RJ-11 (RJ-45 on 880 E models) cable to the port on the router. See Figure 3-23.
Figure 3-23 Connecting the xDSL Line
Step 2
Connect the other end of the cable to the DSL wall jack.
Router
Home or Business
Service Utilities Entrance
or Demarcation Point
Network Interface Box/
Network Interface Device/
Station Protector
Building Ground Rod connected to
Service entrance and Primary Protection
* Alternative Underground Service Entrance
Note: Primary Protection
may be located Outside
or Inside of Premise
Telecom Service
Overhead Service
Entrance
281392
1 G.SHDSL port, VDSL2oPOTs port, or
ADSL2+ port
2 DSL wall jack
232175
2
1

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
