Chapter 1 Product Overview
Cisco 890 Series ISRs

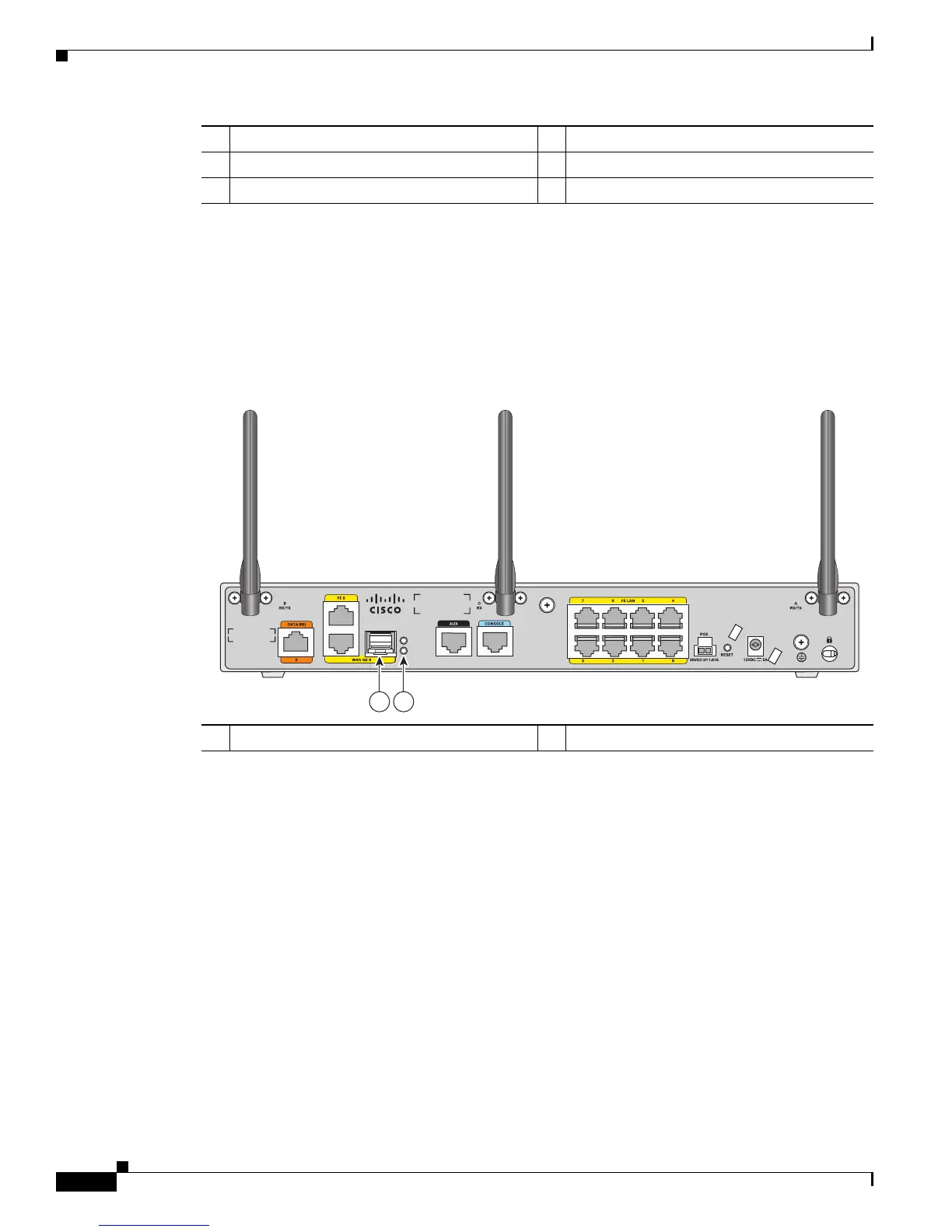

Figure 1-34 shows the location of the SFP port in a Cisco 892F-W router.
Figure 1-34 SFP Port Location in a Cisco 892F-W Router
Cisco 892FSP, Cisco 896VA, Cisco 897VA, and Cisco 898EA
The Cisco 892FSP, 896VA, 897VA (897VA, 897VAM, 897VAW, 897VAMW), and 898EA routers have
the following features:
• Integrated 8-port 10/100/1000 Gigabit Ethernet (GE) switch for connecting to the LAN
• Two 10/100/1000 GE ports for the Cisco 892FSP
• One 10/100/1000 GE port for the Cisco 896VA, 897VA, and the Cisco 898EA. Either the SFP socket
or the 10/100/1000 GE port can be active at a given time, but not both.
• Single console and auxiliary ports for configuration and management
• 512 MB of on-board memory (upgrade option to 1 GB)
• 256 MB flash memory for the Cisco 896VA, 897VA, and Cisco 898EA
• One USB 2.0 port
4 Auxiliary port 10 Earth ground connection
5 Console port 11 Kensington security slot
6 8-port 10/100 Ethernet switch
1. The Cisco 890 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected
to ethernet ports 0 through 3. If this feature was not configured with the factory order you must order and install it to enable
the PoE function.
2. The Data BRI port is available only on the Cisco 892 router models.
3. The V.92 port (not shown) is available only on the Cisco 891 router models and is located between the console port and the
Ethernet switch.
1 SFP port 2 SFP LEDs
278179
Cisco 892F-W
SFP
EN
S
21
