Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 3 Connecting the Router
Connecting a Modem to the Auxiliary Port
Terminal Emulator Settings
Use the following settings for the terminal emulator connection:
• 9600 baud
• 8 data bits, no parity
• 1 stop bit
• No flow control
When the terminal emulator establishes communications, the router prompt is displayed.
For more information on terminal emulation settings, see Applying Correct Terminal Emulator Settings
for Console Connections.
Connecting a Modem to the Auxiliary Port
To connect a modem to the router, follow these steps:
Step 1 Connect the RJ-45 end of the adapter cable to the Aux port on the router as shown in Figure 3-6.

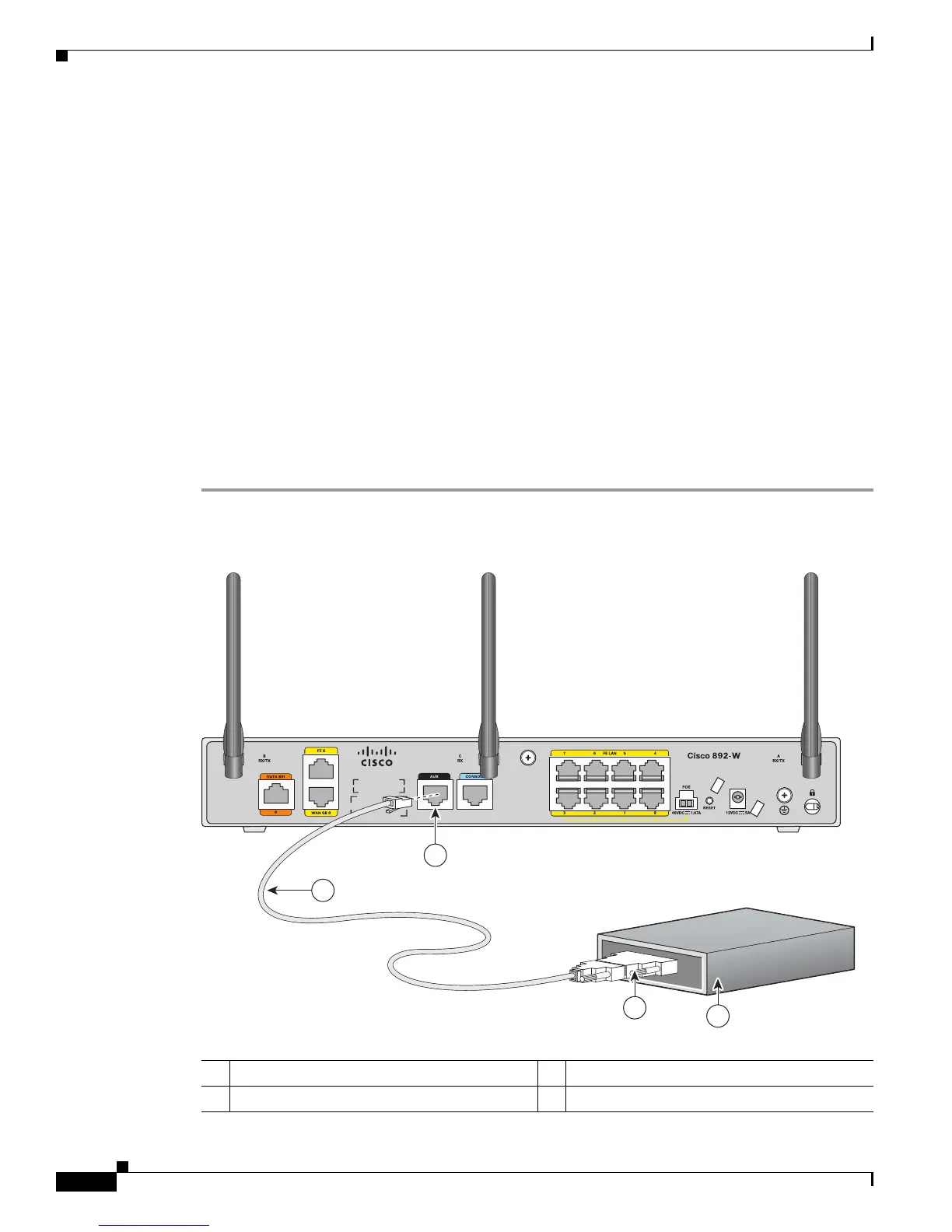

Figure 3-6 Connecting a Modem to the Aux Port
1 Aux port (RJ-45) 3 DB-9 to DB-25 modem adapter (if required)
2 Light blue console cable 4 Modem
272386
1
2
3
4

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
