1-14
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco 880 Series ISRs
Figure 1-11 shows the back panel details of the Cisco 888W data router. Nonwireless routers do not have
antennas on the back panel. However, the feature locations are similar across all Cisco 880 series data
routers.

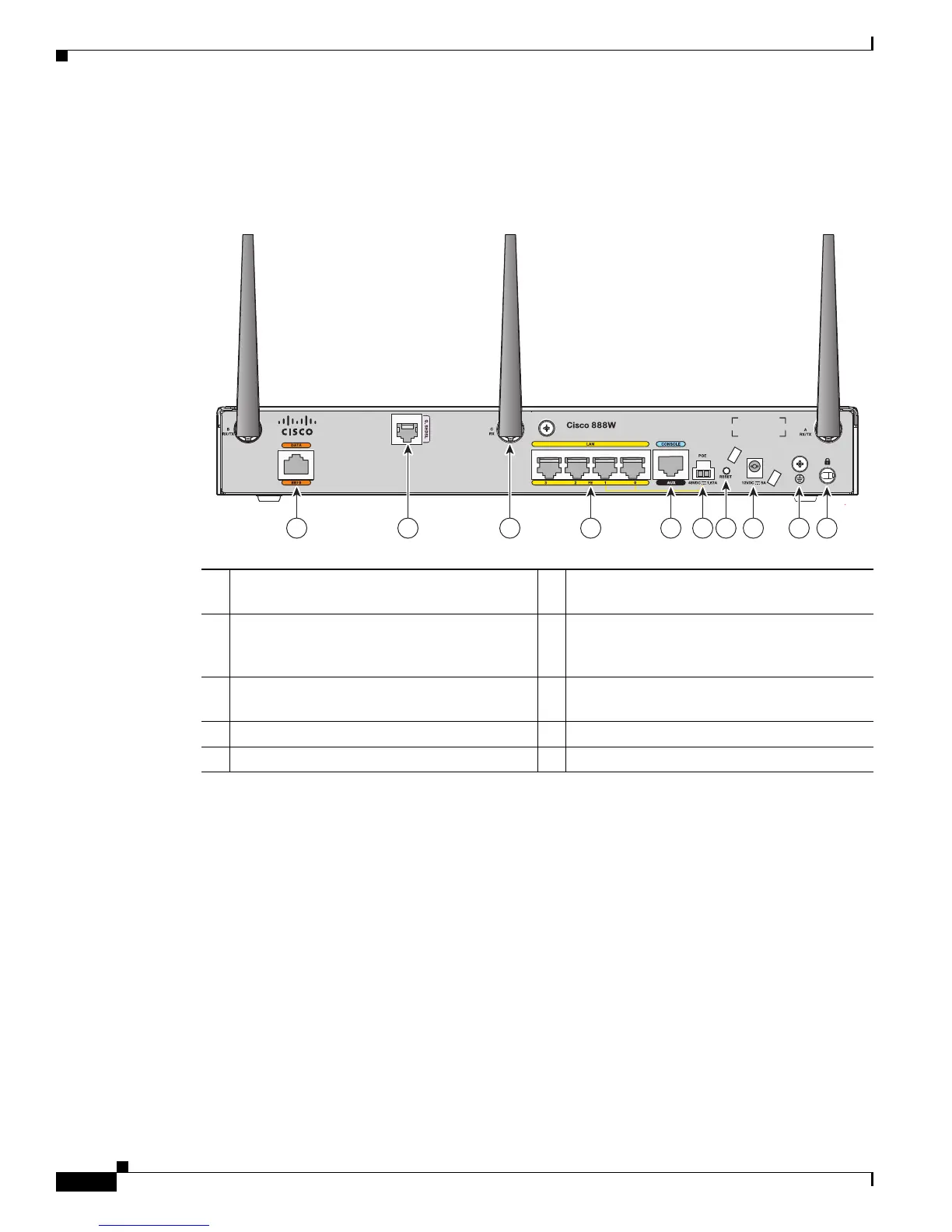

Figure 1-11 Back Panel of the Cisco 888W Data Router
Cisco 880 Series Voice and Data Routers
The Cisco 880 series voice and data routers provide both voice and data ports. The voice ports managed
voice services that interface with Foreign Exchange Station (FXS), Foreign Exchange Office (FXO), or
BRI connections.
1 ISDN port—not available on 3G models 6 PoE power connector for optional PoE
module
1
2 Primary WAN port
2
—G.SHDSL,
VDSLoPOTS, ADSLoPOTS, ADSLoISDN,
or 10/100 FE
7 Reset button
3 Antenna—captive omnidirectional dipole
WLAN antenna (wireless models only)
8 Power connector
4 4-port 10/100 Ethernet switch 9 Earth ground connection
5 Serial port—console or auxiliary 10 Kensington security slot
1. The Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected
to ethernet ports 0 and 1. If this feature was not configured with the factory order, you must order and install it to enable the
PoE function.
2. Depending on the router model, the primary WAN port can be G.SHDSL, VDSLoPOTS, or 10/100 FE. The VDSLoPOTS
port is in the same location as the G.SHDSL port. The 10/100 FE WAN port is located at the bottom left corner. See Figure 1-2
for the location of the 10/100 FE WAN port.
