Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco 860VAE Series ISRs

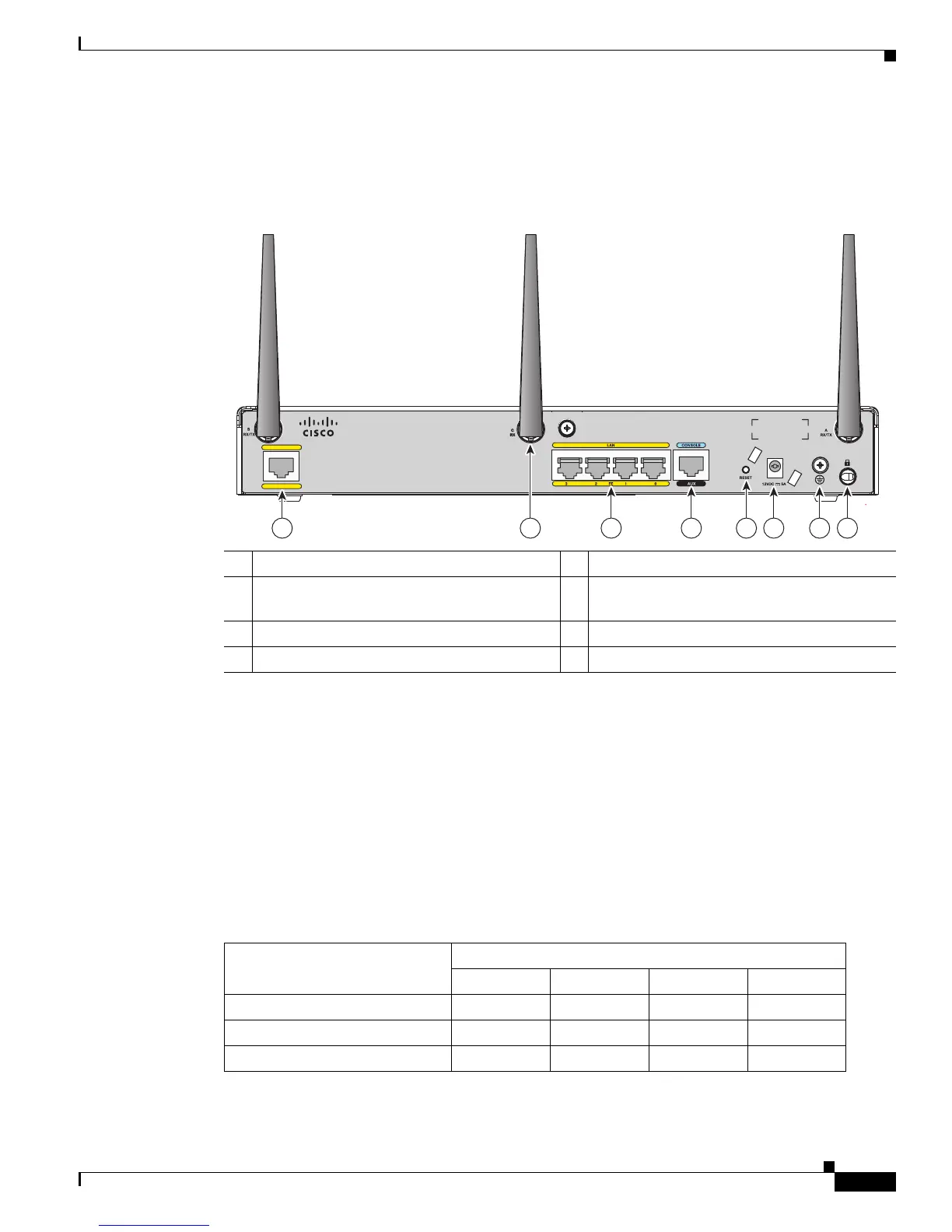

Figure 1-2 shows the back panel details of the Cisco 861 wireless (861W) ISR. Nonwireless routers do
not have antennas on the back panel. However, the feature locations are similar for all Cisco 860 series
routers.
Figure 1-2 Back Panel of the Cisco 861W ISR
Cisco 860VAE Series ISRs
The Cisco 860VAE series ISRs are fixed-configuration data routers. This section describes the features
of the products in this series.
Interfaces
Table 1-1 describes the interfaces of the Cisco 860VAE series routers.
1 Primary WAN port—10/100 5 Reset button
2 Antenna—captive omnidirectional dipole
WLAN antenna (wireless models only)
6 Power connector
3 4-port 10/100 Ethernet switch 7 Earth ground connection
4 Serial port—console or auxiliary 8 Kensington security slot
232181
31 4 6 7 852
WAN
FE 4
Cisco 861W
Table 1-1 Interfaces of the Cisco 860VAE Series ISRs
Interfaces
Model
866VAE 867VAE 866VAE-K9 867VAE-K9
4 FE
1
switch ports xxxx
1 GE
2
switch port — — x x
1 GE WAN port xxxx

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
