Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco C881, C886, and C887 Series ISRs

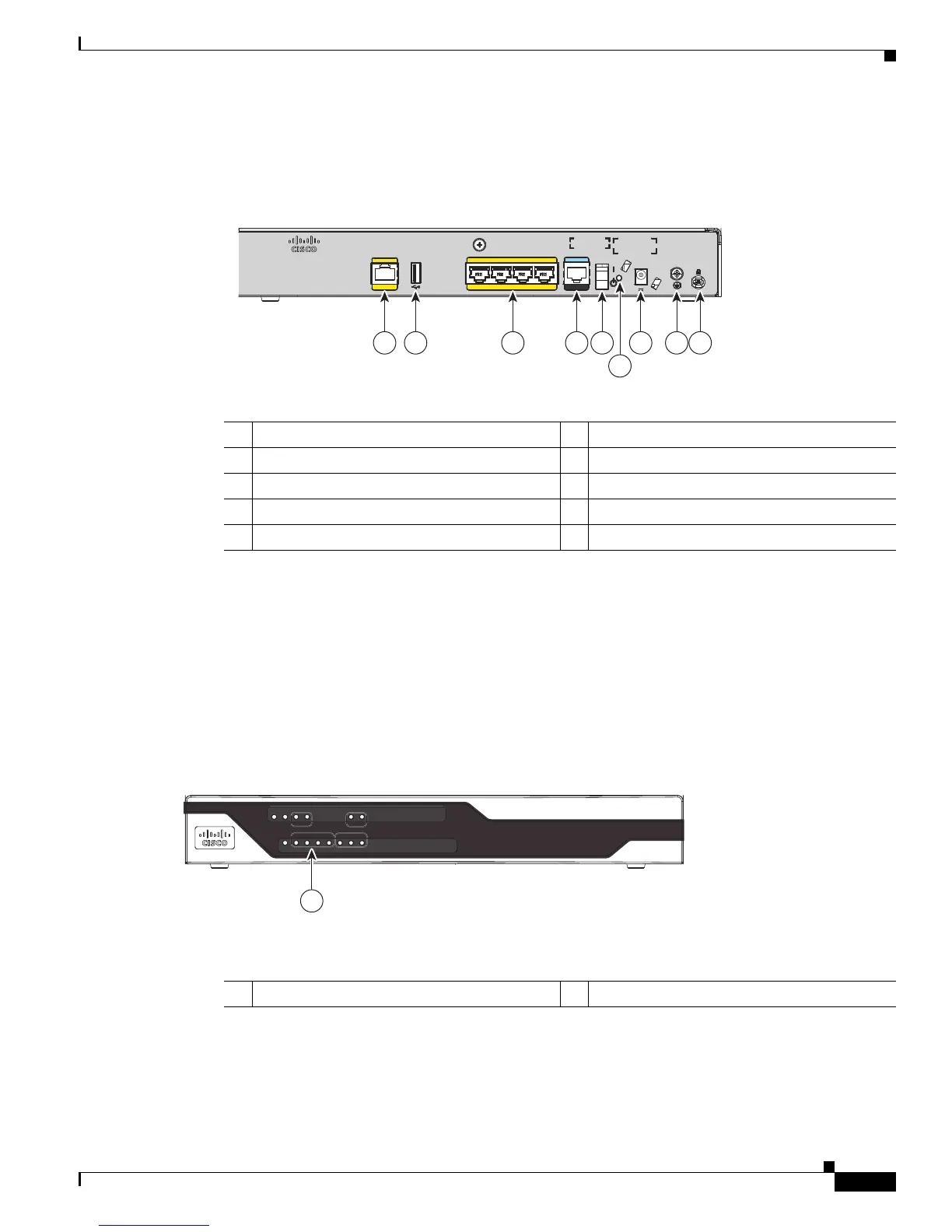

Figure 1-23 shows the back panel of the Cisco C881 Router.
Figure 1-23 Back Panel of the Cisco C881 Router
For information on installing the Cisco C880 Series Routers, see :
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C886VA Router
Figure 1-24 shows the front panel of the Cisco C886VA Router.
Figure 1-24 Front Panel of the Cisco C886VA Router
For detailed description about the LEDs on the Cisco C880 Series Routers, see the “LEDs” section on
page 1-47.
0
Cisco 881
FE LAN
3 210
CONSOLE
AUX
FE WAN
4
12VDC 2 .5-5A
(POE)
RESET
361125
1 2 3 4 5 7 8 9
6
1 Primary WAN port—FE 6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Earth ground connection
4 Serial port—Console or auxiliary 9 Kensington security slot
5 On/Off switch
361126
CiscoCisco
800
Series
OKOK
POEOE
PPPPPP
FE FE LAN
VPN
0 1 2
3
0 1
CD
CD DATA
xDSL
xDSL
ISDNISDN
LINKLINK
B1B1
B2B2
1
1 LEDs

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
