Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco C891 Series ISRs

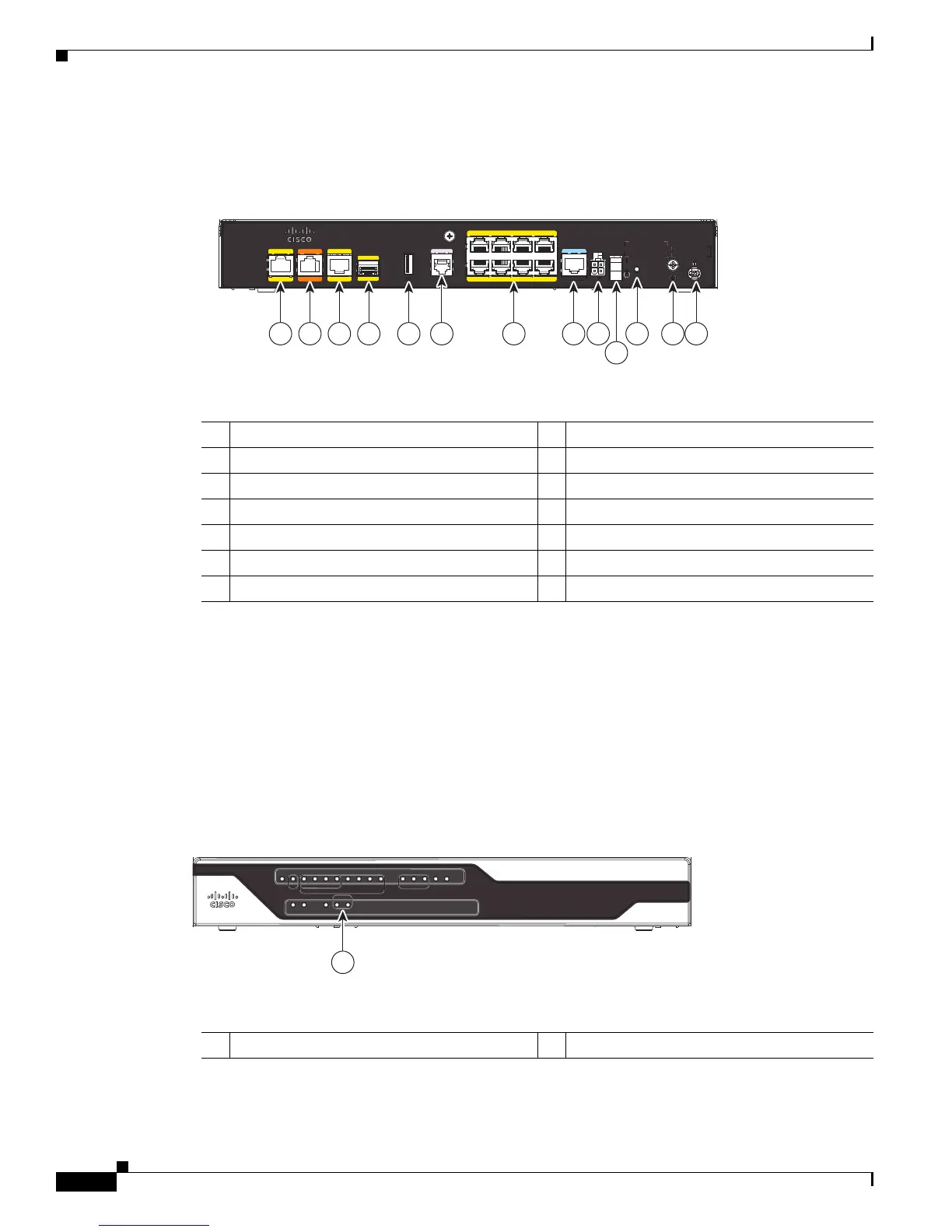

Figure 1-48 shows the back panel of the Cisco C891F Router.
Figure 1-48 Back Panel of the Cisco C891F Router
For information on installing the Cisco C890 Series Routers, see:
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C891FW Router
Figure 1-49 shows the front panel of the Cisco C891FW Router:
Figure 1-49 Front Panel of the Cisco C891FW Router
For detailed description about the LEDs on Cisco C890 Series Router, see “LEDs” section on page 1-47.
361137
FE FE WANAN
ISDNISDN
GE GE WANAN
SFPSFP
V.92.92
7 6 GE GE LANAN
CONONSOLEOLE
CiCisco 89 891F
RESRESET
AUX
UX
5 4
3 2
POE
POE 1
0
0
0
8 8
0
54V54VDC 1.5A.5A
3.5-5A3.5-5A
12V12VDC
(POE)(POE)
1 2 3 4 5 7 8 13129 11
10
6
1 Back up WAN port—FE WAN 8 Console / Auxiliary port
2 ISDN 9 Power connector
3 Primary WAN port—GE WAN 10 On/Off switch
4 SFP 11 Reset button
5 USB port 12 Earth ground connection
6 V.92 backup 13 Kensington security slot
7 8-port 10/100/1000 Ethernet switch
361138
OK
POE
PPP
GE LAN
VPN
V.92
ISDN
OK 0
12
3 4
5
6
7
GE8
SFP8
FE0
5GHz
2.4GHz
WAN
B1
B2
POE
Cisco
800
Series
1
1 LEDs

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
