Chapter 1 Product Overview
Cisco 890 Series ISRs

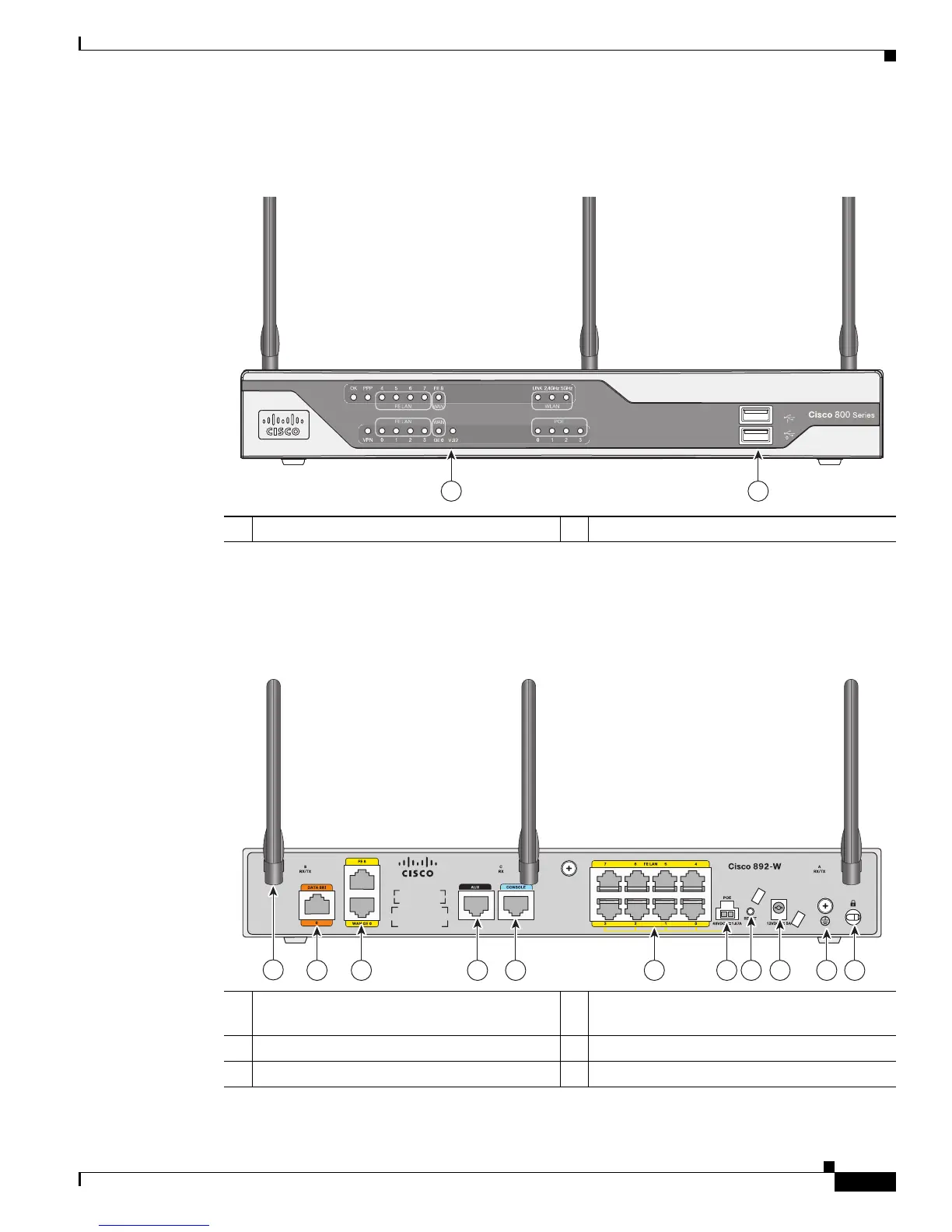

Figure 1-32 shows the front panel details of the Cisco 890 wireless router.
Figure 1-32 Front Panel of the Cisco 890 Series Wireless ISR
Figure 1-33 shows the back panel details of the Cisco 892-W router. Nonwireless routers do not have
RP-TNC antennas or connectors on the back panel. Some of the features that are shown may not be
available on your router. However, the feature locations are similar across all Cisco 890 series routers.
Figure 1-33 Back Panel of the Cisco 892-W Router
1 LEDs 2 USB ports
1 Antenna—dipole swivel antenna attached to
RP-TNC connectors (wireless models only)
7 PoE power connector for optional PoE
module
1
2 Backup—Data BRI
2
or V.92
3
port 8 Reset button
3 Primary WAN port—FE and GE 9 Power connector
272369
1
4 5 6 8 9 10 1172 3
