1-22
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco 880 Series ISRs

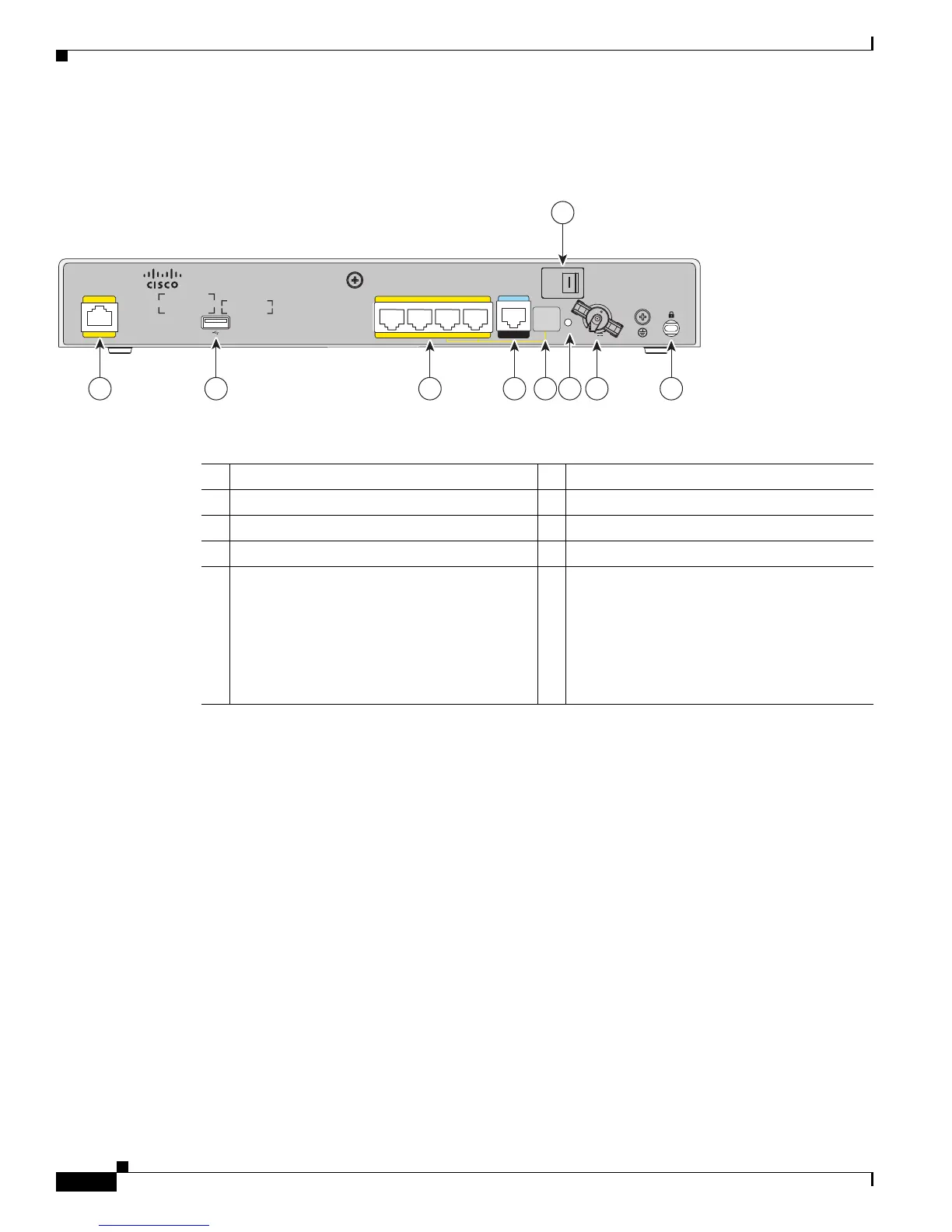

Figure 1-21 shows the back panel details of the C881WD-A-K9 and C881WD-E-K9 ISRs.
Figure 1-21 Back Panel of the C881WD-A-K9 and C881WD-E-K9 ISRs
284987
Cisco 881WD
AUX
CONSOLE
FE LAN
POE OPTION
REQUIRES 5A
POWER
ADAPTOR
3210
RESET
12VDC 5A
0
O
FE WAN
4
9
21 3 4 5 6 7 8
1 Primary WAN port—10/100 FE 6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Kensington security slot
4 Serial port—console or auxiliary 9 Power switch
5
Note No separate PoE power supply is
required for routers with embedded
WLAN antennas. For information on
system power supply requirements
when PoE is enabled, see the “Power
over Ethernet Module” section on
page 1-55.
