1-29
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 1 Product Overview
Cisco C881, C886, and C887 Series ISRs

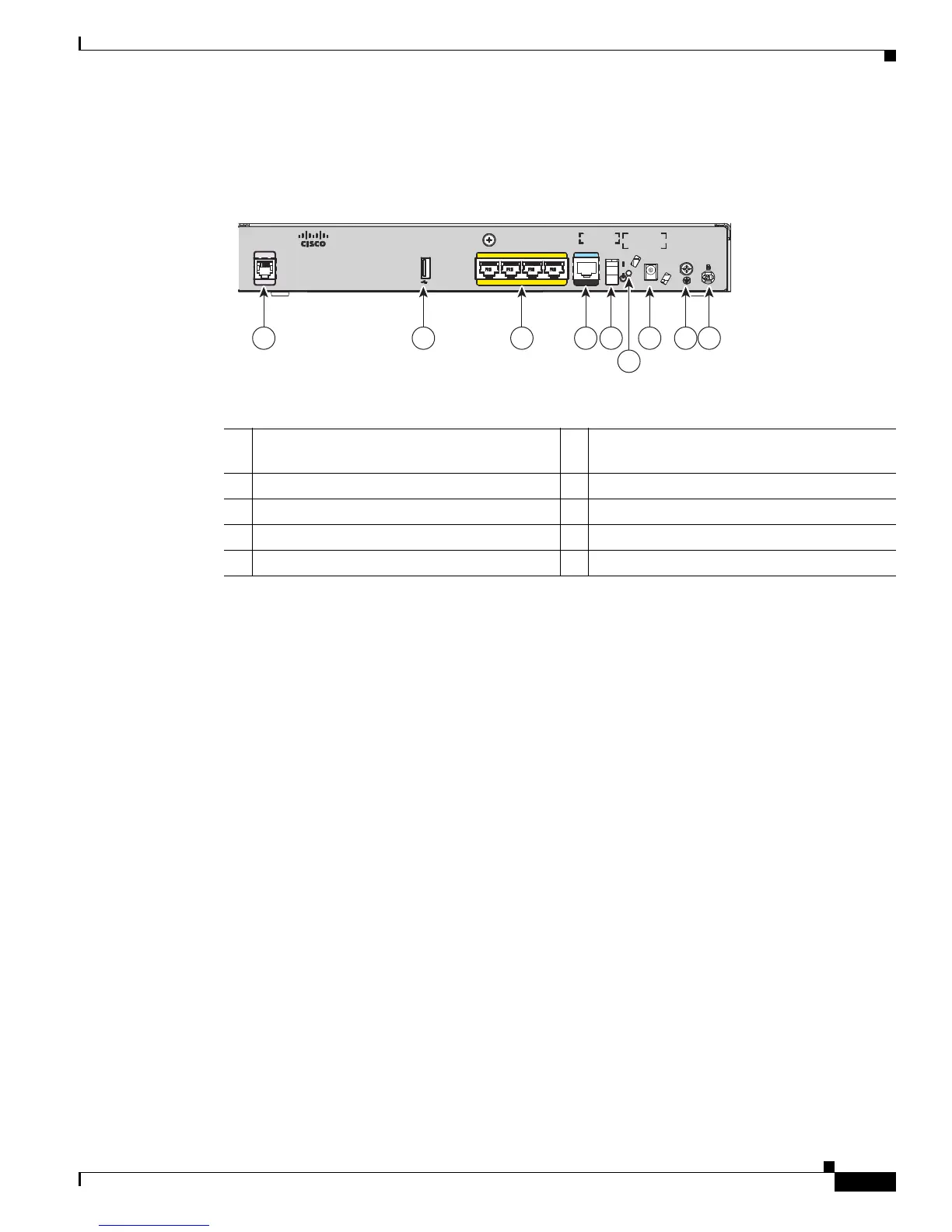

Figure 1-31 shows the back panel of the Cisco C887VAM router.
Figure 1-31 Back Panel of the Cisco C887VAM Router
For information on installing the Cisco C880 Series Routers, see:
361133
0
CiscoCisco 887887VAMAM
VDSL/ADSLVDSL/ADSL
over POTSover POTS
FE LANFE LAN
3 2 1 0
CONSOLE
CONSOLE
AUXAUX
12VDC 2.2.5-5A-5A
(POE)(POE)
RESETRESET
21 3 4 5 7 8 9
6
1 Primary WAN port—VDSL/ADSL over
POTS
6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Earth ground connection
4 Serial port—Console or auxiliary 9 Kensington security slot
5 On/Off switch
