Chapter 1 Product Overview
Cisco 890 Series ISRs

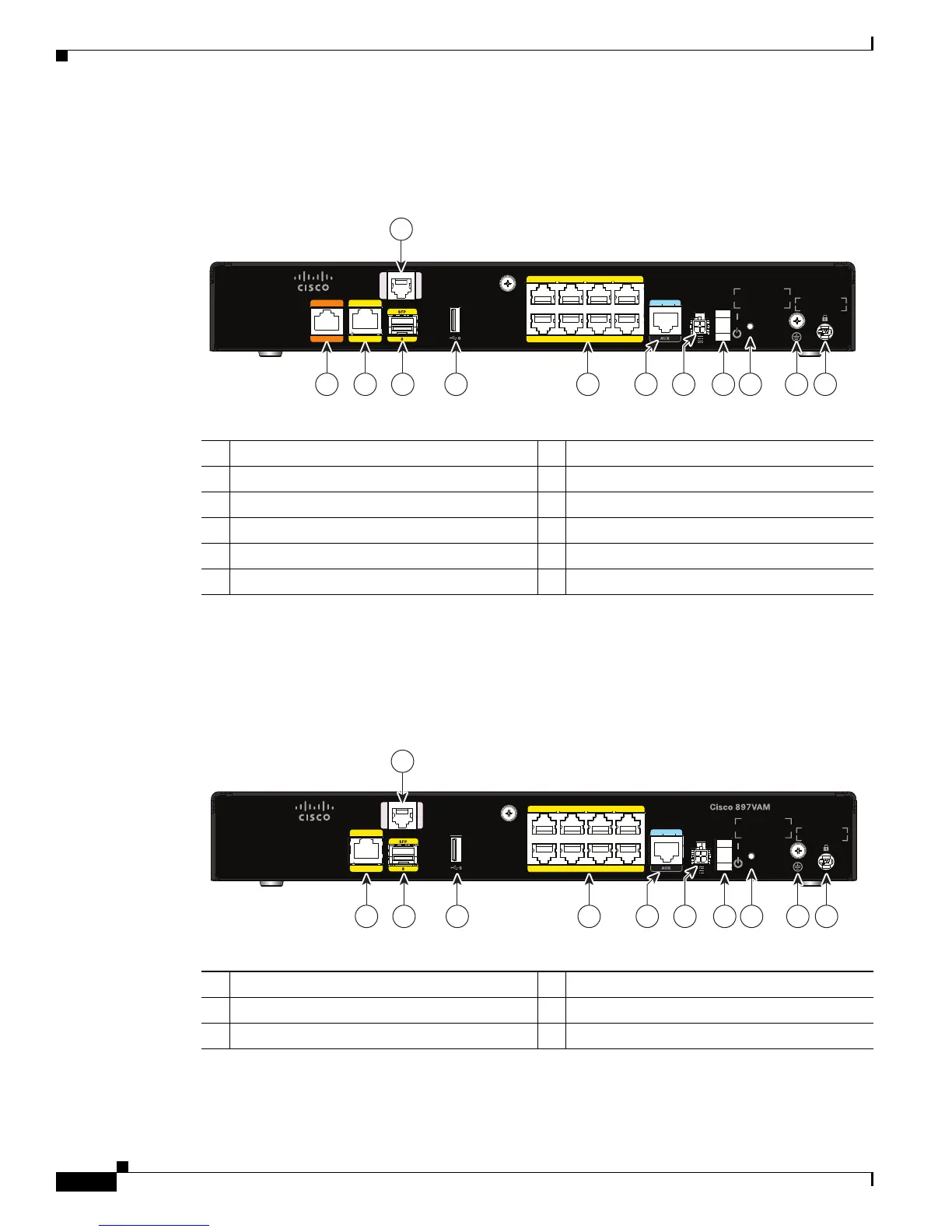

Figure 1-39 shows the back panel of the Cisco 897VA router.
Figure 1-39 Back Panel of the Cisco 897VA Router
Figure 1-40 shows the back panel of the Cisco 897VAM router.
Figure 1-40 Back Panel of the Cisco 897VAM Router
7 6 GELAN 5 4
3 2 POE 1 0
0
ISDN
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overPOTS
CONSOLE
RESET
Cisco 897VA
344767
12
1 2 3 4 5 8 9 10 11
6 7
1 ISDN 7 Power connector
2 GE WAN interface 8 On/Off switch
3 SFP port 9 Reset button
4 USB port 10 Earth ground connection
5 8-port Gigabit Ethernet switch
1
11 Kensington security slot
6 Console / Auxiliary port 12 VDSL / ADSL over POTS
1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with
the factory order, you must order and install it to enable the PoE function.
7 6 GELAN 5 4
3 2 POE 1 0
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overPOTS
CONSOLE
RESET
344769
11
1 2 3 4 7 8 9 10
5 6
1 GE WAN interface 7 On/Off switch
2 SFP port 8 Reset button
3 USB port 9 Earth ground connection

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
