a) Detach power cord, and any other attached cords from the base of the phone, except the handset cord (and
headset cord, if there is a headset).
b) Attach the phone bracket by inserting the tabs into the mounting tabs on the back of the phone. The phone
ports should be accessible through the holes in the bracket.
c) Secure the phone bracket to the IP phone with the self-tapping screws, using the #1 Phillips-head
screwdriver.
d) Reattach the cords and seat them in the clips that are incorporated into the phone body.

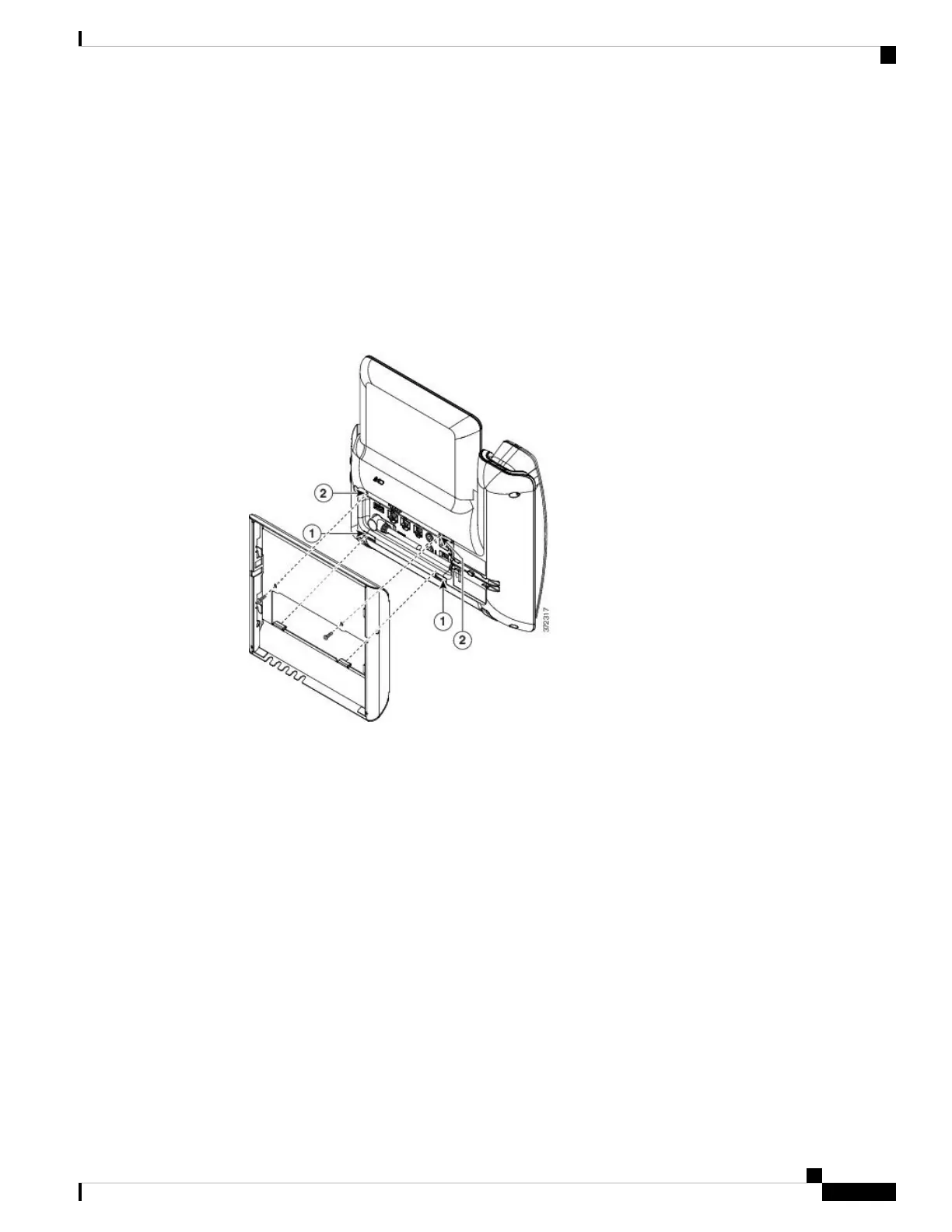

Figure 10: Attach Phone Bracket
The following figure shows how the bracket attaches to the phone.
Step 3 Attach the cables to the phone:
a) Attach the Ethernet cable to the 10/100/1000 SW network port and wall jack.
b) (Optional) If you are connecting a network device (such as a computer) to the phone, attach the cable to
the 10/100/1000 Computer (PC access) port.
c) (Optional) If you are using an external power supply, plug the power cord into the phone and dress the
cord by clipping it into the clips that are incorporated into the phone body next to the PC port.
d) (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.
