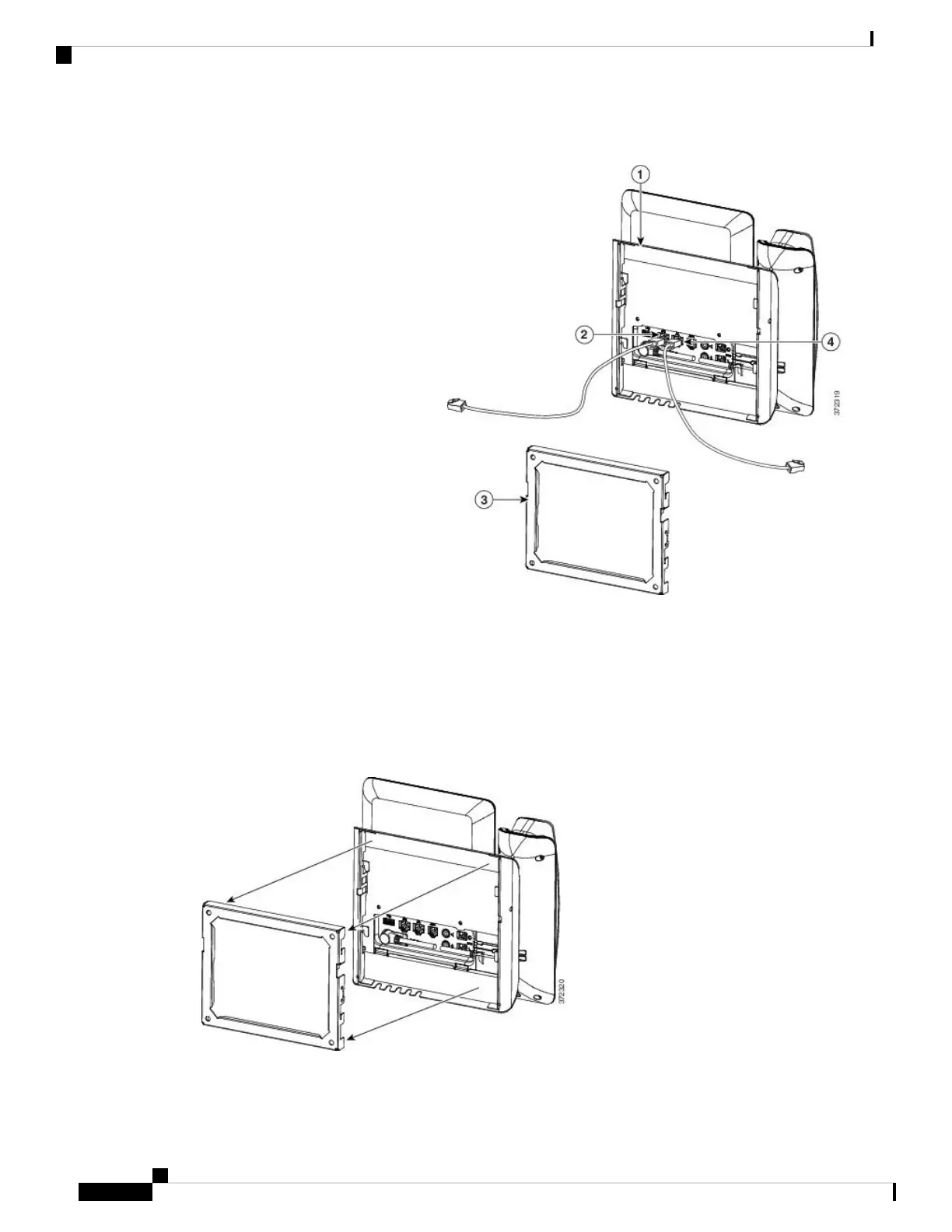

Figure 11: Attach Cables

The following figure shows the cables.

Step 4 Attach the phone to the wall bracket by inserting the tabs on the top of the wall bracket into the slots on the

phone bracket.

For cables that terminate outside of the brackets, use the cable-access openings in the bottom of the bracket

to position the power cord and any other cable that does not terminate in the wall behind the bracket. The

phone and wall bracket openings together form circular openings with room for one cable per opening.

Figure 12: Attach Phone to Wall Bracket

The following figure shows how you attach the phone to the wall bracket.
