Cisco Wireless IP Phone 8821 and 8821-EX Wireless LAN Deployment Guide
77

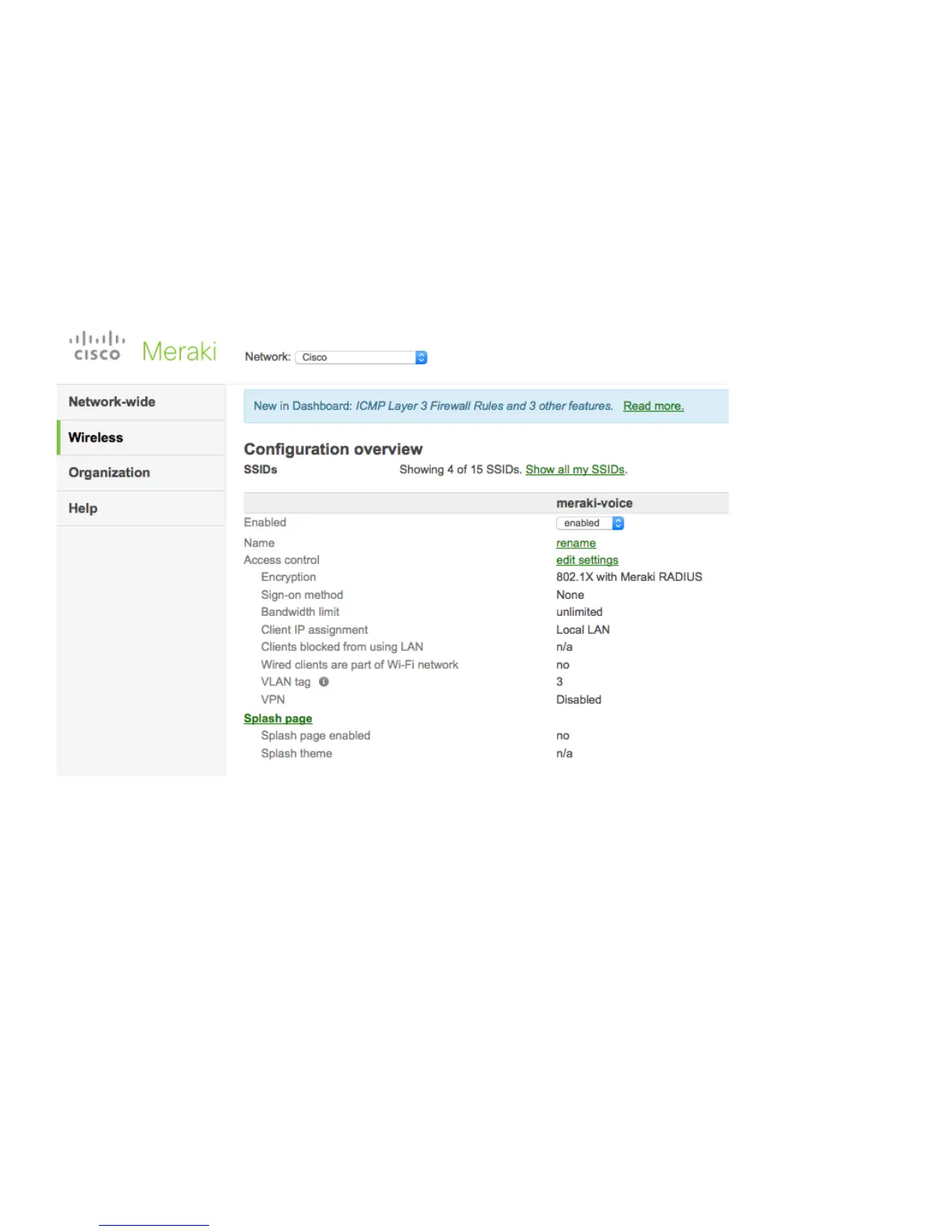

SSID Configuration
To create a SSID, select the desired network from the drop-down menu then select Wireless > Configure > SSIDs.
It is recommended to have a separate SSID for the Cisco Wireless IP Phone 8821 and 8821-EX; data clients and other type of
clients should utilize a different SSID and VLAN.
However, if there is an existing SSID configured to support voice capable Cisco Wireless LAN endpoints already, then that
WLAN can be utilized.
To set the SSID name, select Rename.
To enable the SSID, select Enabled from the drop-down menu.
On the Wireless > Configure > Access control page, select WPA2-Enterprise to enable 802.1x authentication.
The Cisco Meraki authentication server or an external RADIUS server can be utilized when selecting WPA2-Enterprise.
The Cisco Meraki authentication server supports PEAP authentication and requires a valid email address.
Other authentication types (e.g. Pre-Shared Key) are available as well.
Ensure 802.11r is enabled.
Ensure Splash page is set to None to enable direct access.

Table of Contents

Other manuals for Cisco 8821

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco 8821 and is the answer not in the manual?

Cisco 8821 Specifications

General IconGeneral
Wi-FiYes
Ethernet LANNo
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version3.0+HS
Security algorithmsEAP-FAST, EAP-TLS, PEAP, WPA
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r
USB 2.0 ports quantity1
Voice codecsG.711, G.711a, G.722, G.729, G.729ab, iLBC
Volume controlDigital
Product typeIP mobile phone
Product colorBlack
Input frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current0.2 A
Display diagonal2.4 \
Display resolution240 x 320 pixels
Frequency band2.412, 2.472, 5.180, 5.240, 5.260, 5.320, 5.500, 5.700, 5.745, 5.825 GHz
Lines quantity- lines
Phonebook capacity- entries
Storage temperature (T-T)-30 - 60 °C
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 95 %
SafetyUL 60950-1, CAN/CSA 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEC 60529 (IP 67)
Certification● 47 CFR 15 B ● ICES-003 B ● EN 55022 B ● AS/NZS CISPR 22 B ● CISPR 22 B ● VCCI B ● EN 61000-3-2 ● EN 61000-3-3 ● KN 22 B ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN61000-6-3 ● EN 300386 ● EN 60601-1-2 ● KN
Number of handles included1 pc(s)
Harmonized System (HS) code85171800
Weight and Dimensions IconWeight and Dimensions
Depth17 mm
Width56 mm
Height132 mm
Weight126 g
