The QSFP+ or QSFP28 transceiver module is a static-sensitive device. Always use an ESD wrist strap or
similar individual grounding device when handling QSFP+ or QSFP28 transceiver modules or coming into
contact with system modules.
Caution
To install an QSFP+ or QSFP28 transceiver module, follow these steps:
1. Attach an ESD wrist strap to yourself and a properly grounded point on the chassis or the rack.
2. Remove the QSFP+ or QSFP28 transceiver module from its protective packaging.
3. Check the label on the QSFP+ or QSFP28 transceiver module body to verify that you have the correct
model for your network.
4. For optical QSFP+ or QSFP28 transceiver modules, remove the optical bore dust plug and set it aside.
5. For QSFP+ or QSFP28 transceiver modules equipped with a bail-clasp latch, keep the bail-clasp aligned
in a vertical position.
Align the QSFP+ or QSFP28 transceiver module in front of the module’s transceiver socket opening and
carefully slide the QSFP+ or QSFP28 transceiver into the socket until the transceiver makes contact with
the socket electrical connector (see the figure below).
6. For QSFP+ or QSFP28 transceiver modules equipped with a pull-tab, hold the transceiver so that the
identifier label is on the top.
Align the QSFP+ or QSFP28 transceiver module in front of the module’s transceiver socket opening and
carefully slide the QSFP+ or QSFP28 transceiver into the socket until the transceiver makes contact with
the socket electrical connector.

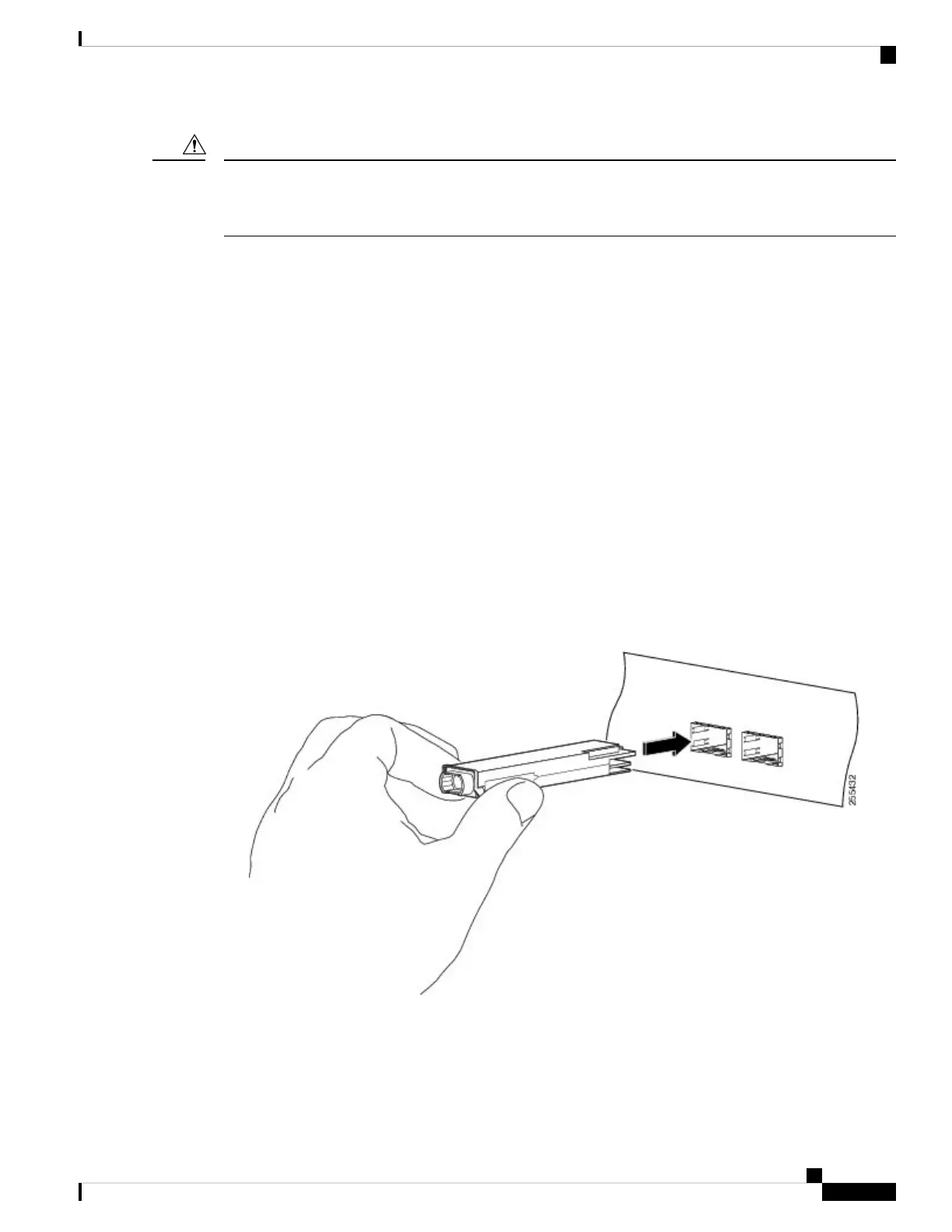

Figure 72: Installing the 40-Gigabit QSFP+ or 100-Gigabit QSFP28 Transceiver Module (Optical Transceiver Equipped with a Bail-Clasp
Latch Shown)
7. Press firmly on the front of the QSFP+ or QSFP28 transceiver module with your thumb to fully seat the
transceiver in the module’s transceiver socket (see the below figure).
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
117
Installing and Removing Line Cards and Transceiver Modules
Installing the 40-Gigabit QSFP+ or 100-Gigabit Transceiver Module
