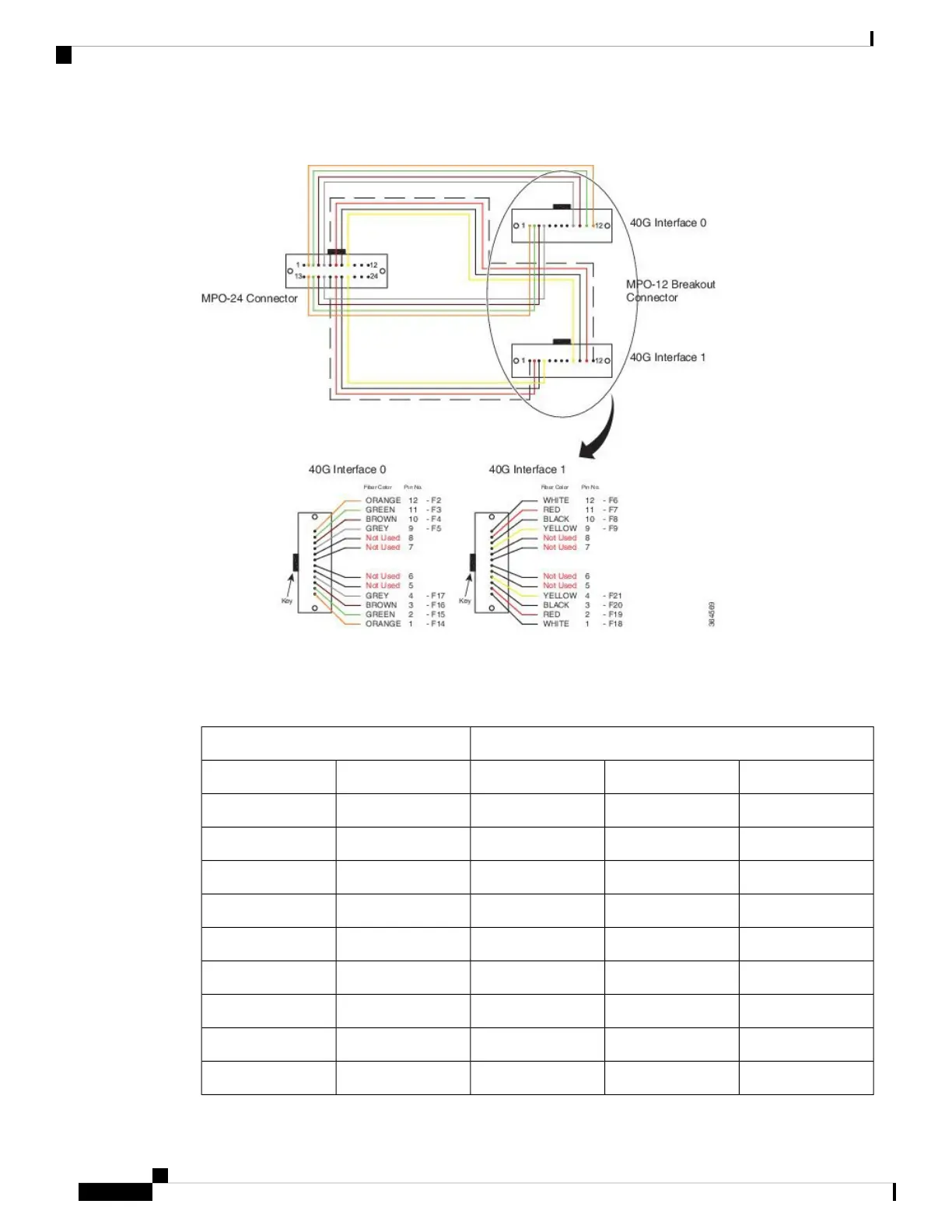

Figure 89: 2x40GE Breakout for CPAK-100G-SR10 Optical Module
The following table shows the pinouts for the 100G side connector. Pins 1, 10, 11, 12, 13, 22, 23, and 24 are
not used.
Table 32: 100G to 2X40G Y-Cable Pinouts (100G Side)
Module ReceptacleConnector
TX/RX40 G Interface_LaneReceptacle FiberFiber IDConnector ID
——1F1MPO1
RX0_02F2MPO2
RX0_13F3MPO3
RX0_24F4MPO4
RX0_35F5MPO5
RX1_06F6MPO6
RX1_17F7MPO7
RX1_28F8MPO8
RX1_39F9MPO9
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
154
Technical Specifications
