100GE CFP connector (two of two)4Ejector lever (one of two)1
Line card status LED5Captive installation screw (one of two)2
100GE CFP connector (one of two)3
4-Port 100-Gigabit Ethernet Line Card with CPAK
The 4-Port 100GE line card provides four CPAK cages for CPAK modules that operate at a rate of 100 Gbps.
The line card is available in -SE (Service Edge Optimized) and -TR (Packet Transport Optimized) variants.
The two variants are functionally equivalent, but vary in configuration scale and buffer capacity.
Each CPAK cage on the 4-port 100GE line card has an adjacent Link LED visible on the front panel. The
Link LED indicates the status of the associated CPAK port, as described in Line Card LEDs, on page 138.

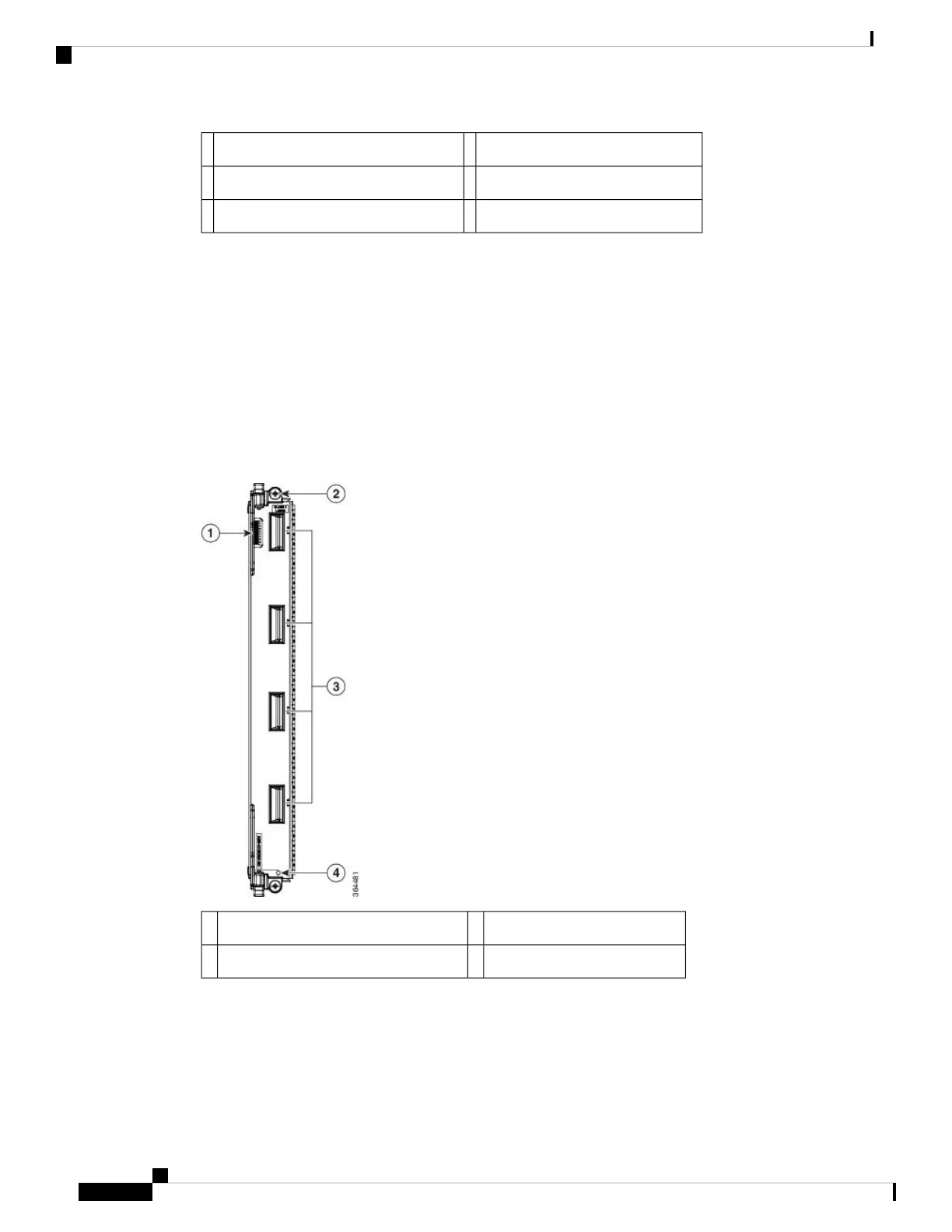

The following figure shows the 4-Port 100GE line card front panel and connectors.
Figure 14: 4-Port 100-Gigabit Ethernet Line Card
Four 100GE CPAK connectors4Ejector lever (one of two)1
Status LED5Captive installation screw (one of two)2
8-Port 100-Gigabit Ethernet Line Card with CPAK
The 8-Port 100-Gigabit Ethernet (GE) line card provides eight CPAK cages for CPAK modules that operate
at a rate of 100 Gbps.
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
38
Overview
4-Port 100-Gigabit Ethernet Line Card with CPAK
