Each CPAK cage on the 8-Port 100GE line card has an adjacent Link LED visible on the front panel. The
Link LED indicates the status of the associated CPAK port as described in Line Card LEDs, on page 138.

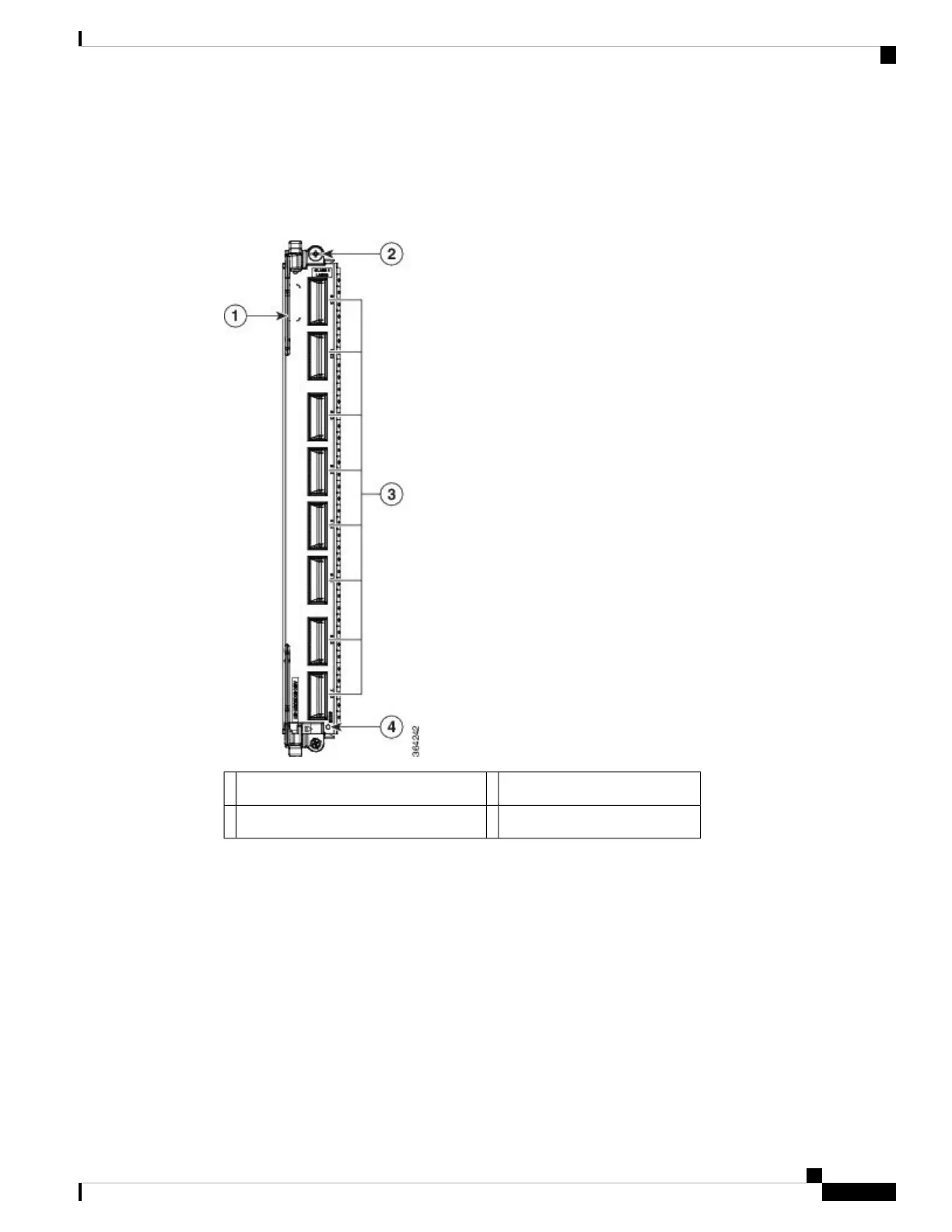

The following figure shows the 8-Port 100GE line card front panel and connectors.
Figure 15: 8-Port 100-Gigabit Ethernet Line Card
Eight 100GE CPAK connectors3Ejector lever (one of two)1
Status LED4Captive installation screw (one of two)2
This line card is available in two versions. The LAN version line card is available as an Service Edge Optimized
(-SE) variant only. The OTN version line card is available in three variants:
• Service Edge Optimized (-SE)
• Packet Transport Optimized (-TR)
• Consumption Model Optimized (-CM)
The -SE and -TR variants are functionally equivalent, but vary in configuration scale and buffer capacity. The
-CM variant is same as the -SE variant except that the -CM variant functions on Consumption Based Pricing
Model supported with Smart Licensing. For details related to the Consumption Based Pricing Model, see the
chapter Software Entitlement on the Cisco ASR 9000 Series Router in Cisco ASR 9000 Series Aggregation
Services Router System Management Configuration Guide. For the -CM variant, you need to purchase a
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
39
Overview
8-Port 100-Gigabit Ethernet Line Card with CPAK
