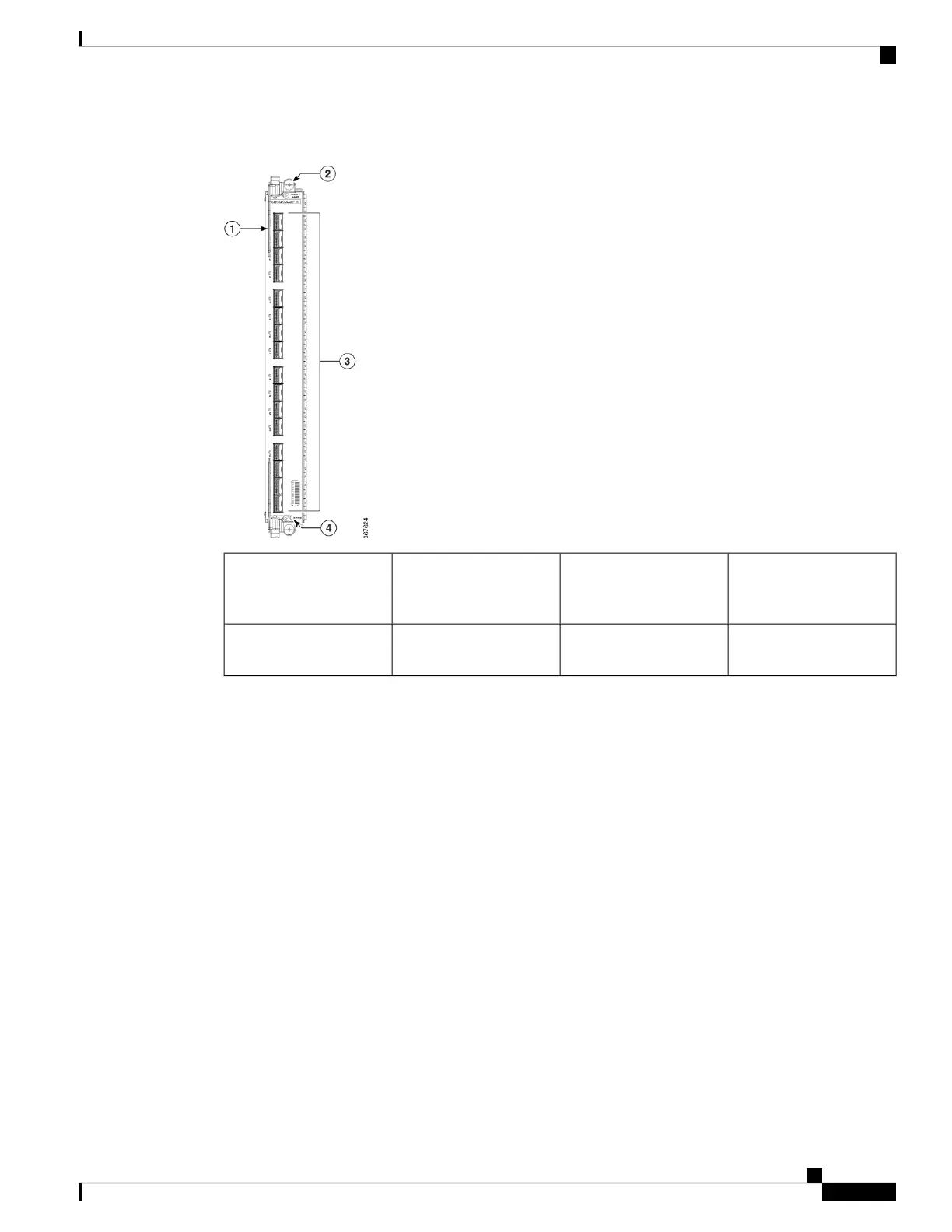

Figure 16: 16-Port 100-Gigabit Ethernet Line Card with QSFP28/QSFP+
Sixteen 100GE
QSFP28/QSFP+
connectors
3Ejector lever (one of two)1
Status LED4Captive installation screw
(one of two)
2
32-Port 100-Gigabit Ethernet Line Card with QSFP28/QSFP+
The 32-Port 100-Gigabit Ethernet (GE) line card provides thirty two ports for QSFP28/QSFP+ modules that
operate at a rate of 100 Gbps.
Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFP+ port on the line
card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs, on page
138.
When the 32-port 100GE Line Card with QSFP28/QSFP+ is inserted in a Cisco ASR 9922 chassis, you must
use the ASR 9922 Fan Tray V3. In a 32-port 100GE Line Card, QSFP+ is permitted only from port 0 to port
20.
The following figure shows the 32-Port 100-GE line card front panel and LEDs.
Cisco ASR 9000 Series Aggregation Services Router Ethernet Line Card Installation Guide
41
Overview
32-Port 100-Gigabit Ethernet Line Card with QSFP28/QSFP+
