In this case, different members of the access bundle can be configured over different ICL bundle links.

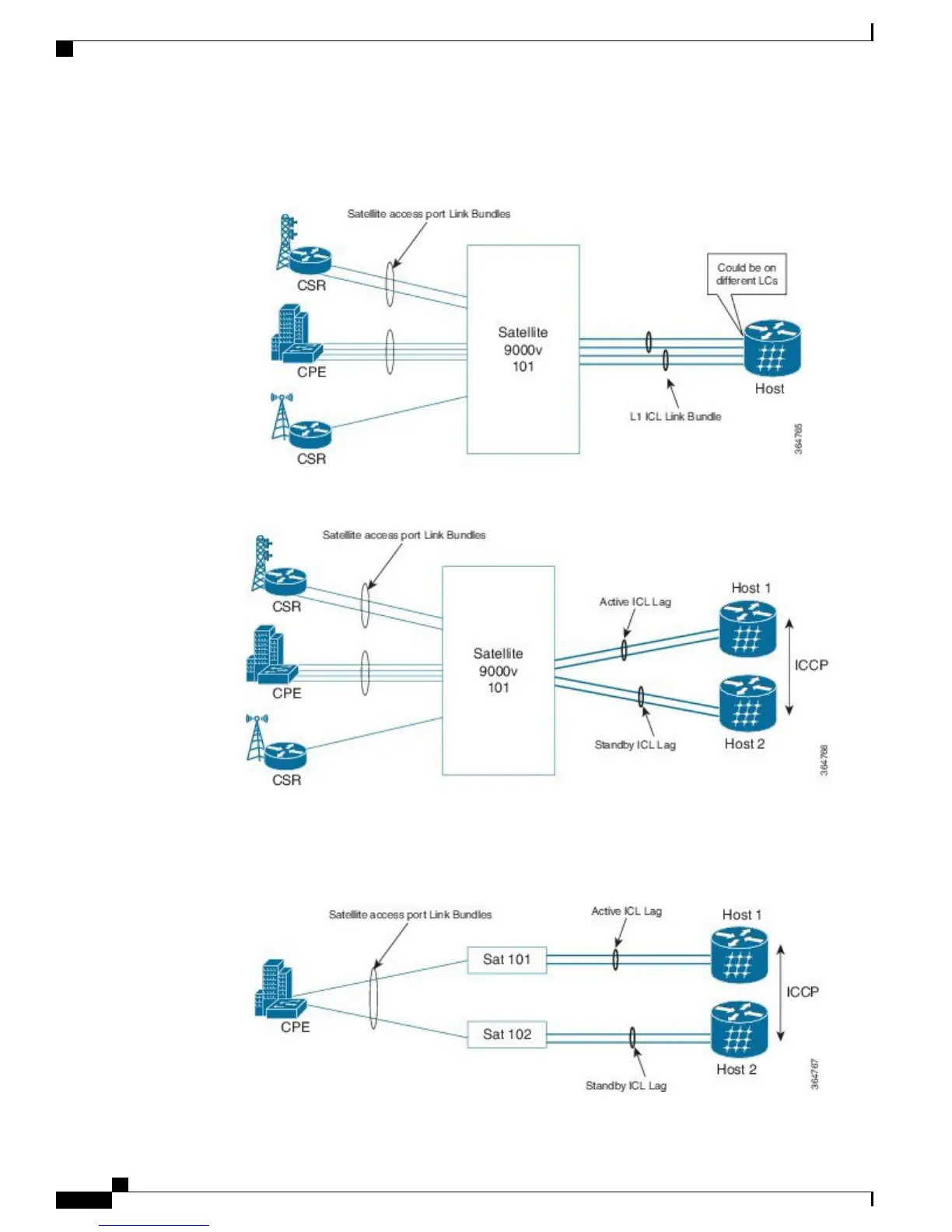

Figure 9: Multiple Access Bundles over many ICL bundles to Single Host
Figure 10: Multiple Access Bundles over many ICL bundles to Dual-Homed Hosts
In this case where MC-LAG solution is provided to CPE device, wherein each member in the CPE bundle is
connected to different satellite box. The satellite is single homed to a Cisco ASR 9000 host.
Figure 11: Access Bundle over ICL Bundles to two different hosts in CPE dual homing
Cisco ASR 9000 Series Aggregation Services Router nV System Configuration Guide, Release 5.3.x
24
Configuring the Satellite Network Virtualization (nV) System
Satellite nV System Access Port Bundles along with ICL Bundles
