1
Cisco Analog Telephone Adaptor Overview
This section describes the hardware and software features of the Cisco Analog Telephone Adaptor
(Cisco ATA) and includes a brief overview of the H.323 protocol.
The Cisco ATA analog telephone adaptors are handset-to-Ethernet adaptors that allow regular analog
telephones to operate on IP-based telephony networks. Cisco ATAs support two voice ports, each with
an independent telephone number. The Cisco ATA 188 also has an RJ-45 10/100
BASE-T data port.
This section covers the following topics:
• H.323 Overview, page 1-2
• Hardware Overview, page 1-5
• Software Features, page 1-7
• Installation and Configuration Overview, page 1-9

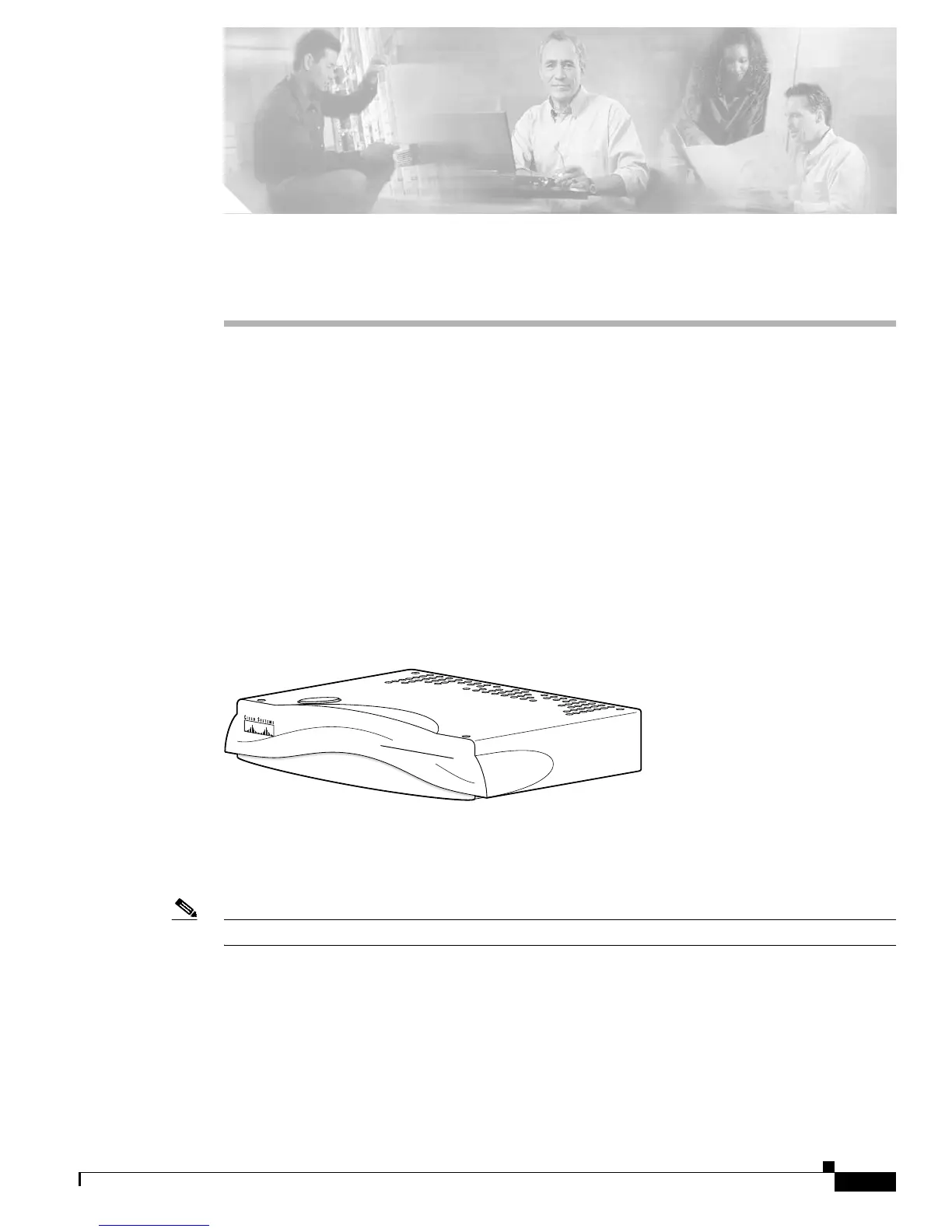

Figure 1-1 Cisco ATA Analog Telephone Adaptor
The Cisco ATA, which operates with Cisco voice-packet gateways, makes use of broadband pipes that
are deployed through a digital subscriber line (DSL), fixed wireless-cable modem, and other Ethernet
connections.
Note The term Cisco ATA refers to both the Cisco ATA 186 and the Cisco ATA 188, unless otherwise stated.
72209
ANALOG TELEPHONE ADAPTO
R
CISCO ATA 186

Cisco ATA 186 Specifications

General

Operating Temperature	32°F to 104°F (0°C to 40°C)
Protocol	SIP, H.323
Network Interface	10/100BASE-T Ethernet
Audio Codec Support	G.729a, G.723.1
Power Supply	5V DC
Weight	0.23 kg (0.5 lb)
Relative Humidity	10 to 90% noncondensing
Ports	2 RJ-11 FXS ports
