Step 3
If the module has a bale-clasp latch, move it to the open, unlocked position.
Step 4
Align the module in front of the slot opening, and push until you feel the connector snap into place.
Step 5
If the module has a bale-clasp latch, close it.
Step 6
For fiber-optic SFP or SFP+ modules, remove the dust plugs and save.
Step 7
Connect the SFP cables.

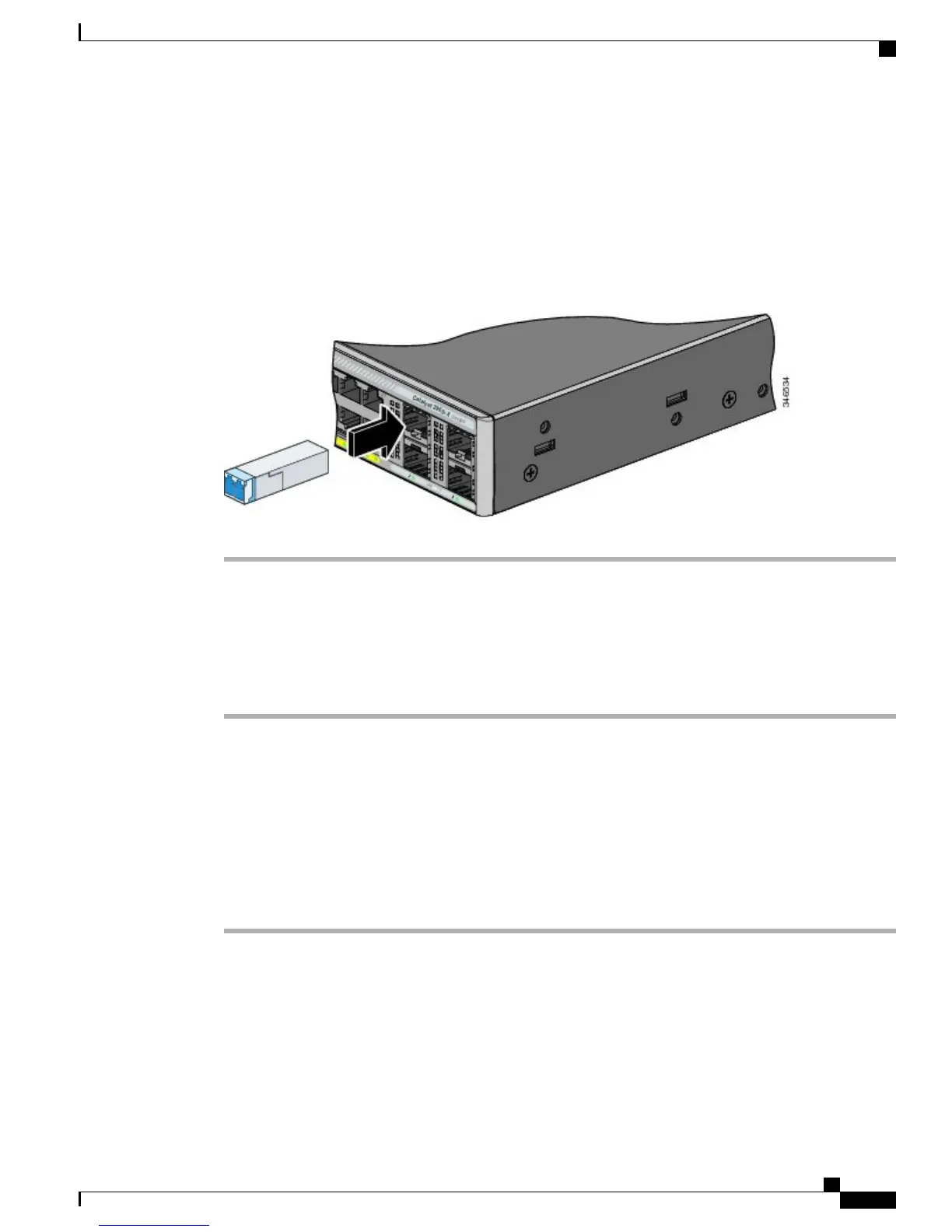

Figure 27: Installing an SFP Module
Removing an SFP or SFP+ Module
Procedure
Step 1
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2
Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send (TX)
and which is receive (RX).
Step 3
Insert a dust plug into the optical ports of the SFP or SFP+ module to keep the optical interfaces clean.
Step 4
If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the latch is obstructed
and you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument to open
the latch.
Step 5
Grasp the SFP or SFP+ module, and carefully remove it from the module slot.
Step 6
Place the module in an antistatic bag or other protective environment.
Connecting to SFP and SFP+ Modules
Related Topics
SFP and SFP+ Module Slots, on page 7
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
OL-28309-02 47
Switch Installation
Removing an SFP or SFP+ Module
