Cisco Catalyst 250 Series Hardware Installation Guide

Cable Pinouts

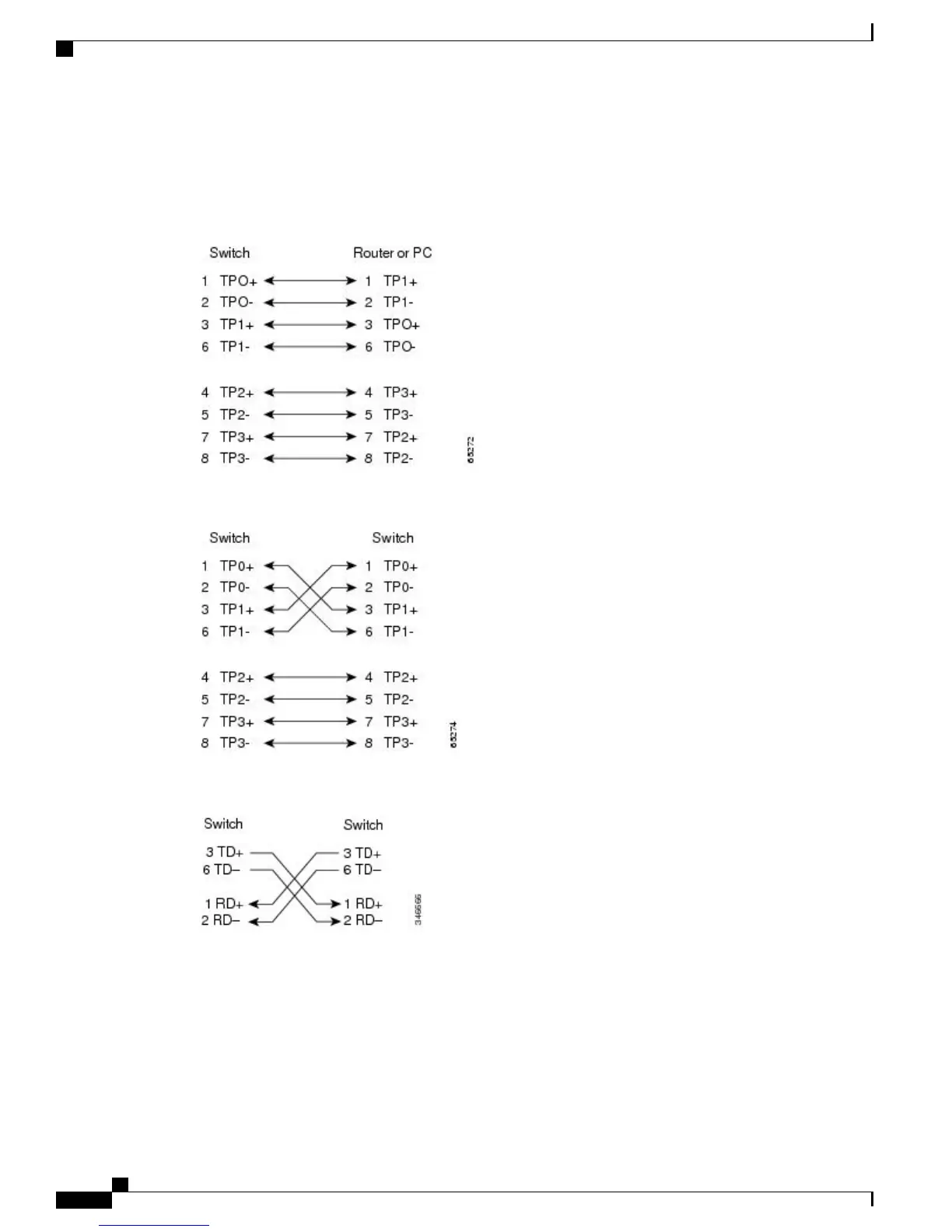

Figure 45: Four Twisted-Pair Straight-Through Cable Schematic
Figure 46: Four Twisted-Pair Crossover Cable Schematic
Figure 47: Two Twisted-Pair Straight-Through Cable Schematic
Figure 48: Two Twisted-Pair Crossover Cable Schematic
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
80 OL-28309-02
Connector and Cable Specifications
Cable Pinouts
