Cisco Catalyst 2960-X Series User Manual

The Catalyst 2960X-48FPD-L switch is shown here as an example. Other switches have similar components.

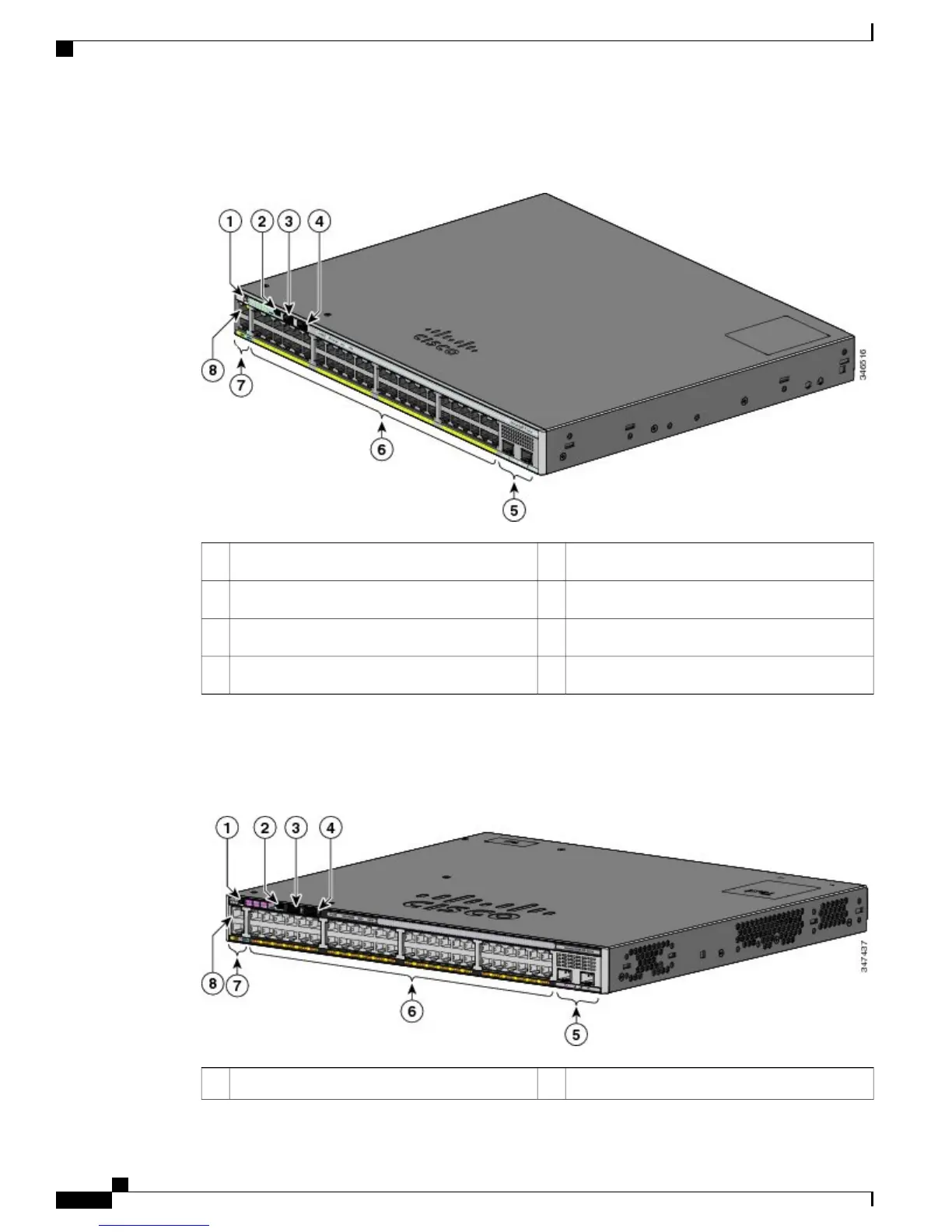

Figure 1: Catalyst 2960X-48FPD-L Front Panel
SFP module slots5Mode button and switch LEDs1
10/100/1000 PoE+ ports6USB mini-Type B (console) port2
RJ-45 console port7USB Type A port3
Ethernet management port8USB Type A port4
The Catalyst 2960XR-48LPD-I switch is shown here as an example. Other Catalyst 2960-XR switches have
similar components.
Figure 2: Catalyst 2960XR-48LPD-I Front Panel
SFP+ module slots5Mode button and switch LEDs1
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
4 OL-28309-02
Product Overview
Front Panel

Cisco Catalyst 2960-X Series Specifications

General

Operating System	Cisco IOS
Form Factor	Rack-mountable
RAM	512 MB
Model	2960-X Series
Ports	48 x Gigabit Ethernet
Uplink Interfaces	Optional 1G or 10G uplinks
Switching Capacity	Up to 160 Gbps
Stacking	Yes, up to 8 switches
Power over Ethernet	PoE+ (IEEE 802.3at) available on selected models
Dimensions	4.4 x 45 x 28.2 cm (1.73 x 17.7 x 11.1 in)
Weight	5.4 kg
VLANs	4096
Jumbo Frame Support	9198 bytes
Power Supply	100-240VAC, 50-60 Hz
Features	Layer 2 and Layer 3 features, QoS, IPv6 support
Software	LAN Base
Operating Temperature	0 to 45°C (32 to 113°F)
