Connecting to the GBIC Module Ports
This section describes how to connect to a GBIC module port. For detailed
instructions on installing, removing, and cabling a GBIC (1000BASE-X module,
1000BASE-T module, or the GigaStack module), refer to your GBIC
documentation.
Connecting to a 1000BASE-X GBIC Module Port
Caution Do not remove the rubber plugs from the fiber-optic port or the rubber caps
from the fiber-optic cable until you are ready to connect the cable. The plugs
and caps protect the fiber-optic port and cable from contamination and
ambient light.
Follow these steps to connect to the 1000BASE-X GBIC port:
Step 1 Remove the rubber plugs from the fiber-optic port on the module, and store them
for future use.
Step 2 Insert the SC connector in the fiber-optic receptacle, as shown in Figure 2-11.

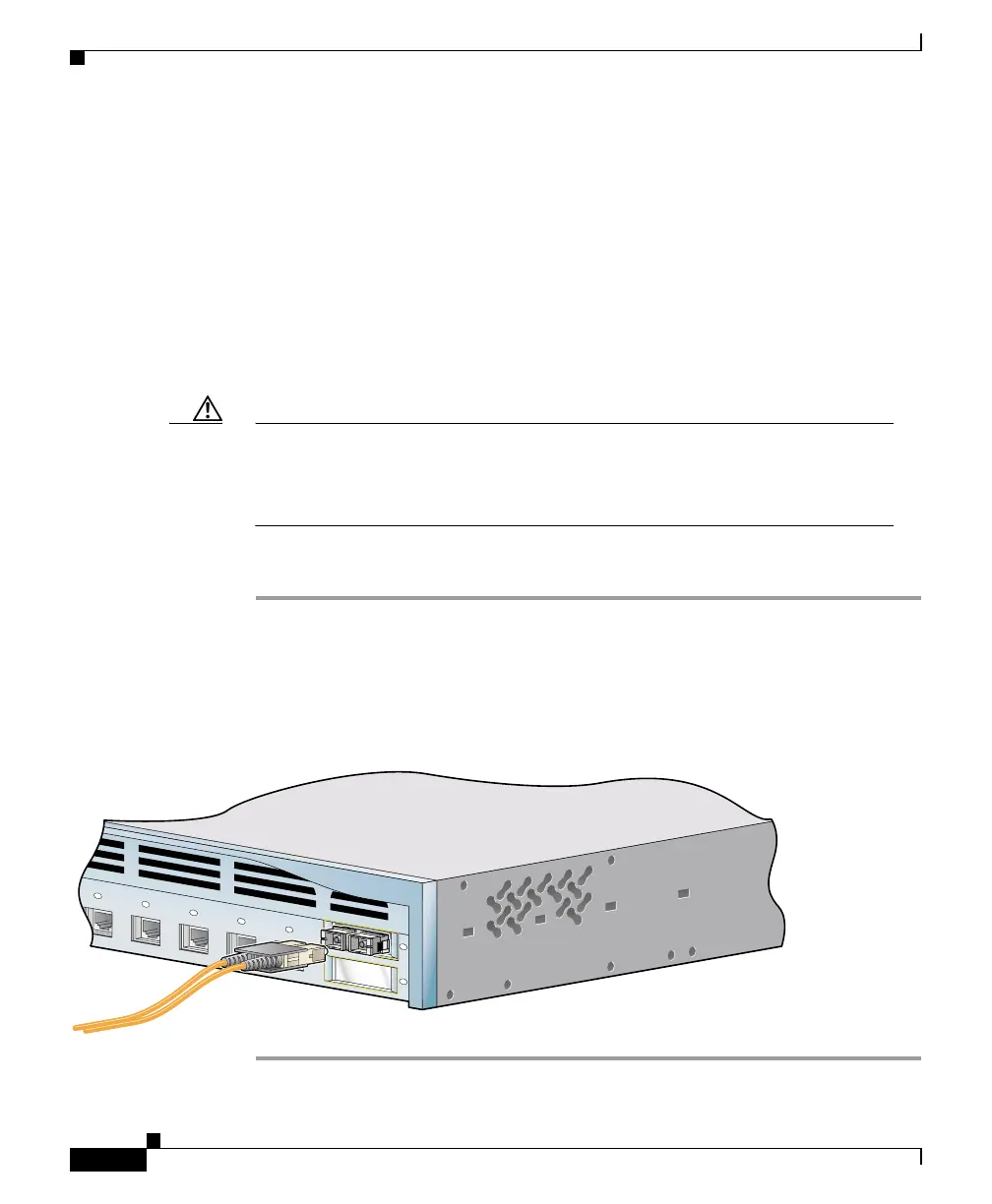

Figure 2-11 Connecting to a 1000BASE-X Port
1
2
Catalyst 3550
6
7
8
9
1
0
1
1
50383
