Cisco Catalyst 4500 Series Overview

1-17
Catalyst 4500 Series Module Installation Guide
78-13267-06
Chapter 1 Module Overview and Specifications
Ethernet and Fast Ethernet Switching Modules

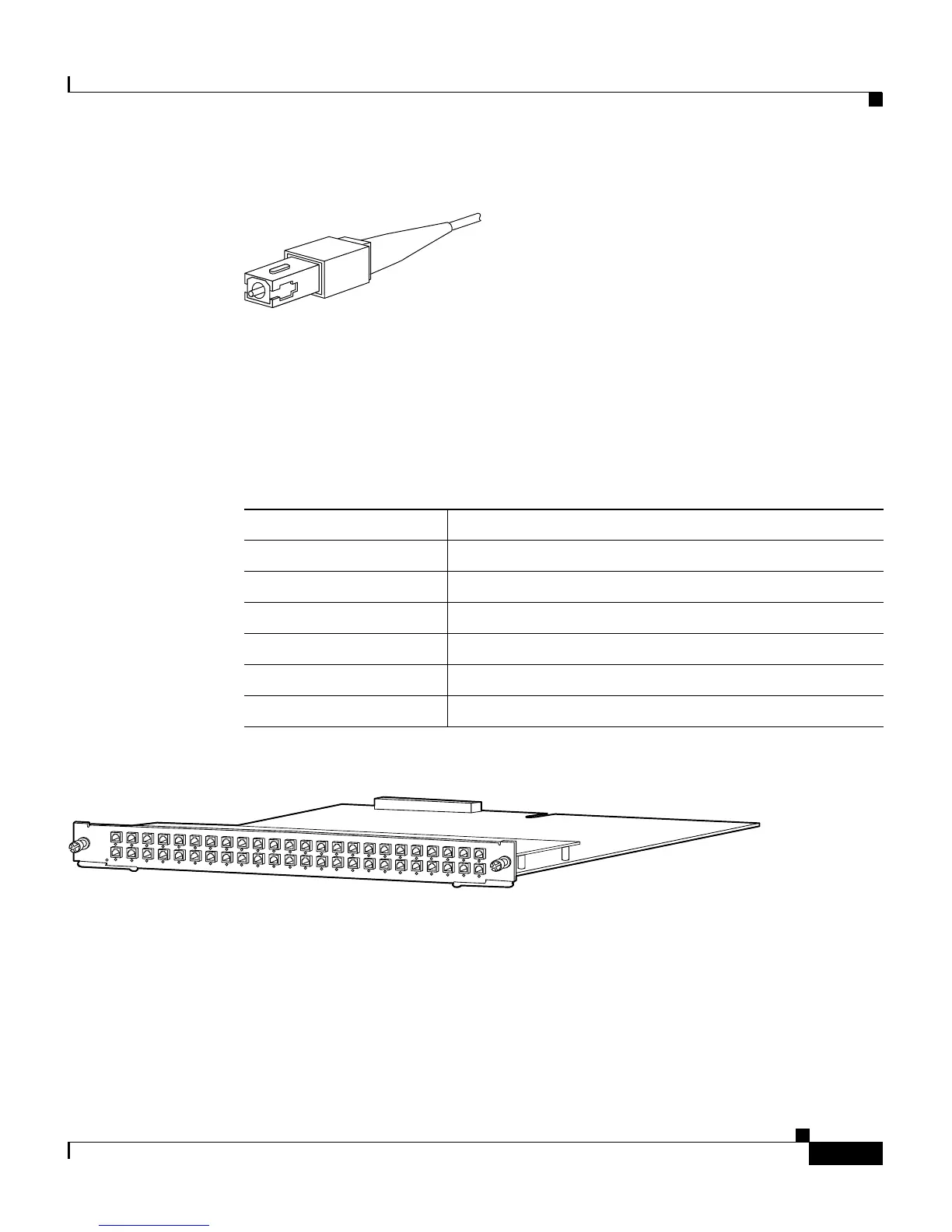

Figure 1-15 Single LC Connector
WS-X4148-FE-LX-MT
The WS-X4148-FE-LX-MT 48-port 100BASE-LX10 Fast Ethernet switching
module (see Figure 1-16) has the following specifications:
Figure 1-16 WS-X4148-FE-LX-MT 48-Port 100BASE-LX-MT Fast Ethernet Switching Module
105887
Specification Description
Module type 100BASE-LX10 Fast Ethernet switching module
Port duplex mode Half or full duplex mode
Port speed 100 Mbps
Number of ports 48
Connector type MT-RJ fiber-optic (See Figure 2-4 on page 2-4.)
Cable type SMF
85381
WS-X4188-FX-MT
STATUS
27
48 PORT 100BASE-FX
SWITCHING MODULE
1
3
5
7
9
11
13
15
17
19
21
23
25
29
31
33
35
37
39
41
43
45
47
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
