Chapter 1 Module Overview and Specifications
Gigabit Ethernet Switching Modules
insertion or removal of SFPs from the module is not recognized by the system.
This activity can be observed on a Catalyst 4500 series switch using Release
12.1(12c)EW1 or later releases.
Solution Reset the module with the hw-module module reset command.
(CSCee05078)
WS-X4548-GB-RJ45V
The WS-X4548-GB-RJ45V 48-port IEEE 802.3af-compliant PoE
10/100/1000BASE-T RJ-45 switching module (see Figure 1-38) has the following
specifications:

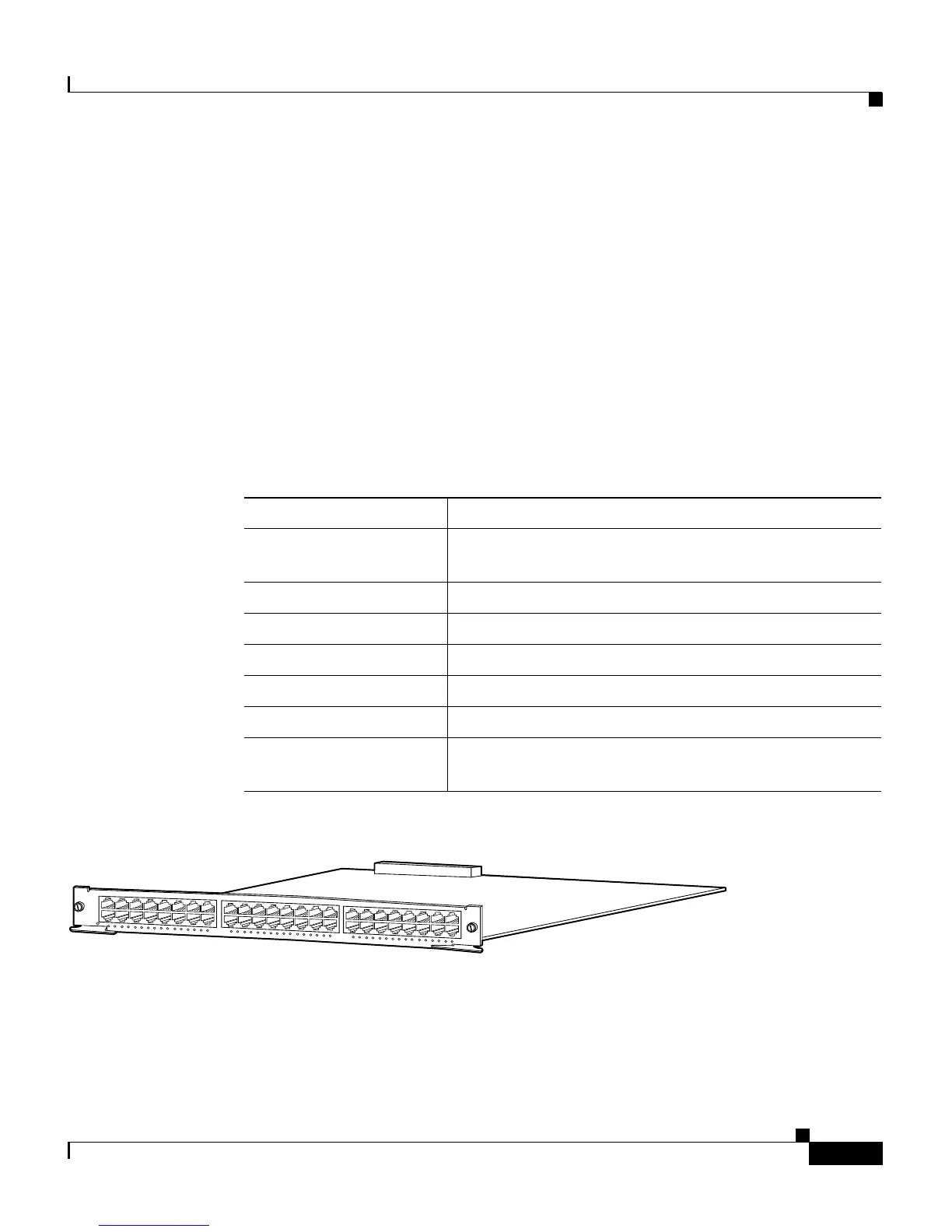

Figure 1-38 WS-X4548-GB-RJ45V 48-Port IEEE-Compliant PoE 10/100/1000BASE-T Switching Module
To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a
Catalyst 4006 switch, you must have a power entry module (PEM) and a power
shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to
powered devices. If the powered devices are using the maximum 15.4 W per port,
Specification Description
Module type 10/100/1000BASE-T Fast Ethernet switching module
with IEEE802.3af PoE
Port duplex mode Half or full duplex mode
Port speed 10, 100, or 1000 Mbps
Number of ports 48
Connector type RJ-45 (See Figure 2-1 on page 2-2.)
Cable type UTP
Power over Ethernet Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)
