Ethernet and Fast Ethernet Switching Modules

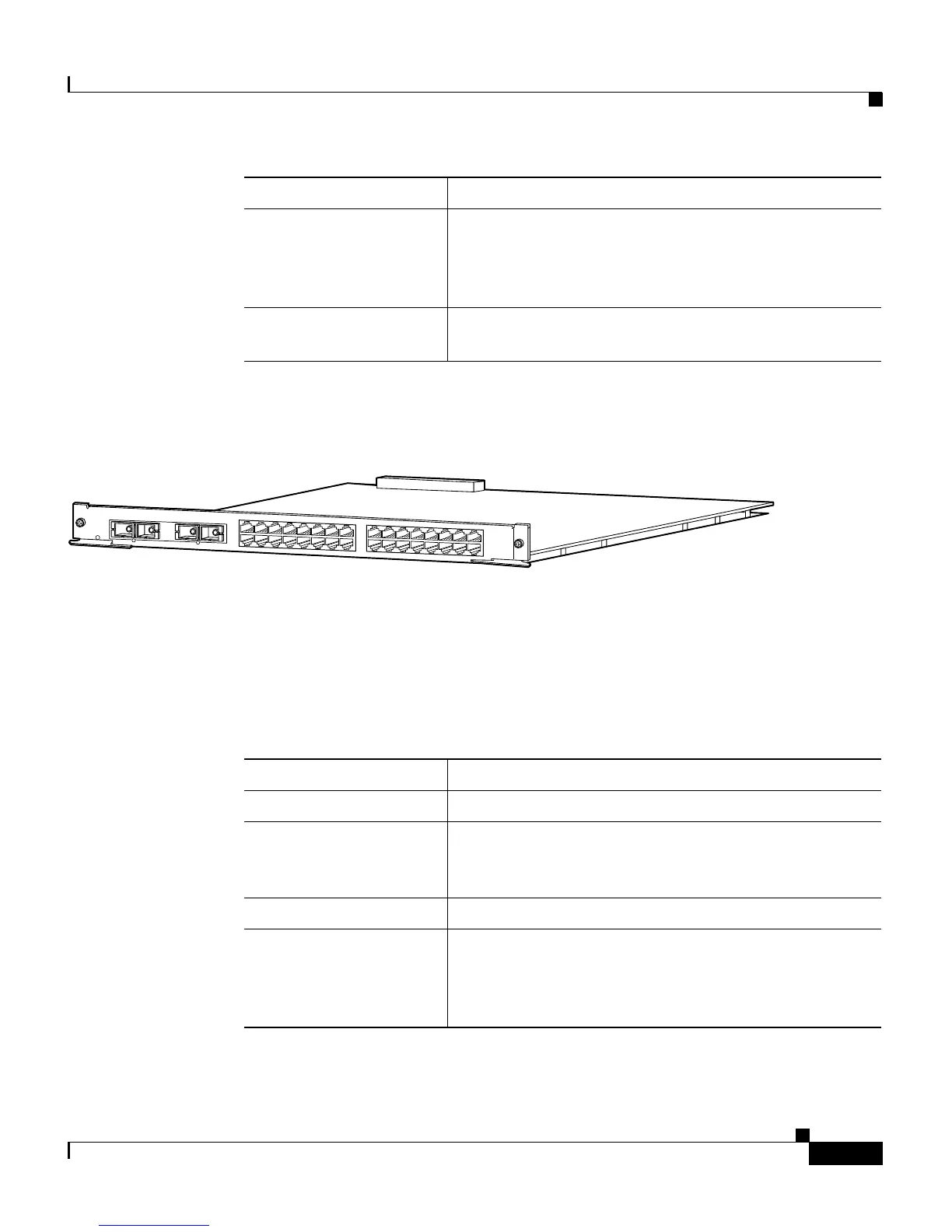

Figure 1-23 WS-X4232-GB-RJ 2-Port Gigabit and 32-Port 10/100BASE-T Ethernet Switching Module
WS-X4232-L3
The WS-X4232-L3 Layer 3 services module (see Figure 1-24) has the following
specifications:
Connector type RJ-45 10/100BASE-TX ports (See Figure 2-1 on
page 2-2.)
SC-type 1000BASE-X ports
1
(See Figure 2-16 on
page 2-18.)
Cable type Category 5 UTP (10/100BASE-TX)
MMF or SMF (1000BASE-X)
1. See the “Installing, Removing, and Maintaining GBICs” section on page 2-8 for GBIC support
information.
Specification Description
16672
1
13
1
13
Specification Description
Module type Layer 3 services module
Port duplex mode Half or full duplex mode on the 10/100BASE-TX
ports
Full duplex mode on the 1000BASE-X Layer 3 ports
Port speed 10, 100, and 1000 Mbps
Number of ports 32 10/100BASE-TX ports
2 1000BASE-X ports
1 console port
1 10BASE-T uplink port

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
