Cisco Catalyst 4500 Series Overview

Chapter 1 Module Overview and Specifications
Ethernet and Fast Ethernet Switching Modules
1-14
Catalyst 4500 Series Module Installation Guide
78-13267-06
WS-X4124-FX-MT

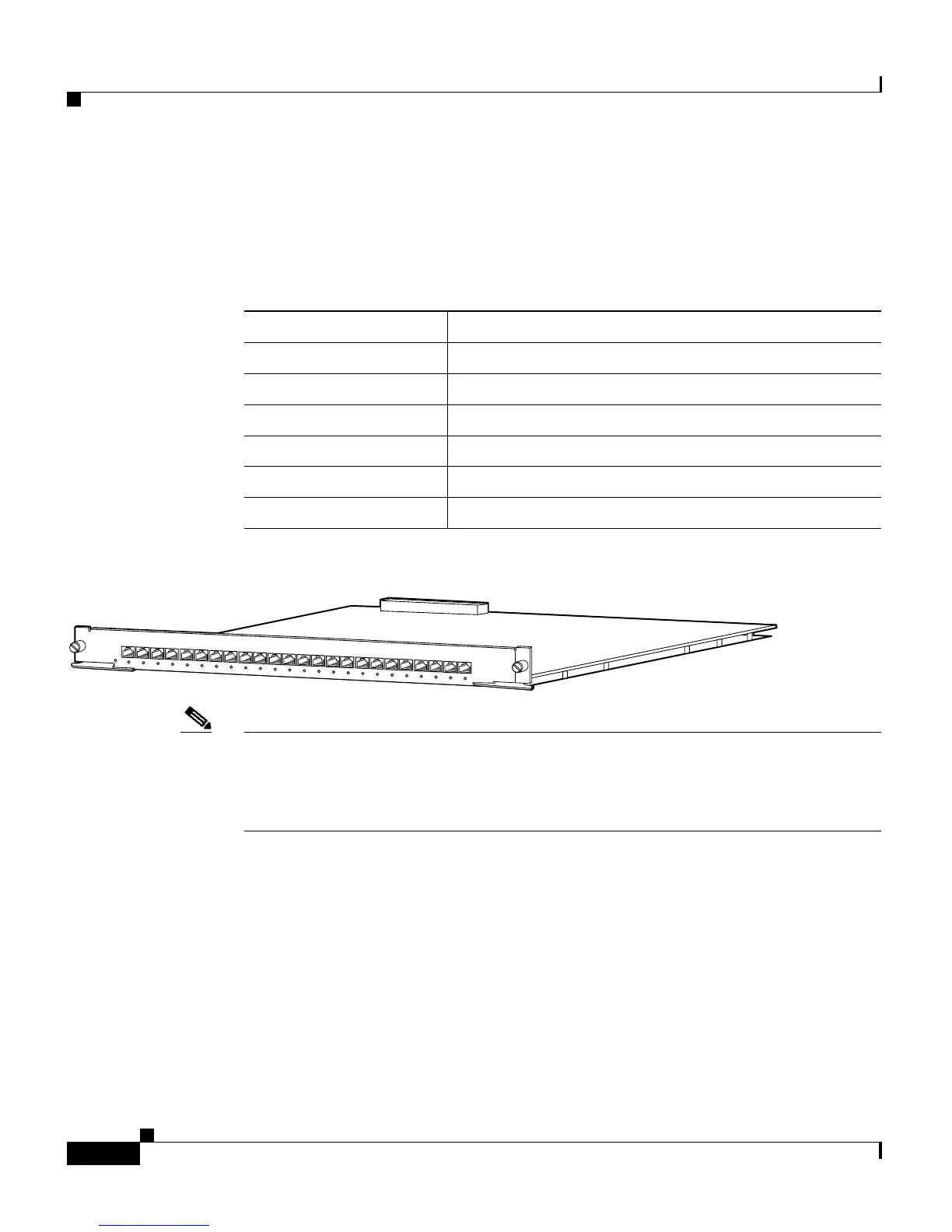

The WS-X4124-FX-MT 24-port Fast Ethernet switching module (see
Figure 1-11) has the following specifications:
Figure 1-11 WS-X4124-FX-MT 24-Port 100BASE-FX Fast Ethernet Switching Module
Note Catalyst 4000 WS-X4124-FX-MT modules with hardware revisions 1.5 and
earlier are supported with the Supervisor Engines I (WS-X4012) and II
(WS-X4013) only. Contact your technical support representative for a
replacement if you need to use this module with another supervisor.
Specification Description
Module type 100BASE-FX Fast Ethernet switching module
Port duplex mode Half or full duplex mode
Port speed 100 Mbps
Number of ports 24
Connector type MT-RJ fiber-optic (See Figure 2-4 on page 2-4.)
Cable type MMF
29216
1
STATUS
W
S
-X
4
1
2
4
-F
X
-M
T
2
4
P
O
R
T
1
0
0
B
A
S
E
-F
X
S
W
IT
C
H
IN
G
M
O
D
U
L
E
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
2
2
2
3
2
4

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
