Cisco Catalyst 4500 Series Overview

Chapter 1 Module Overview and Specifications
Gigabit Ethernet Switching Modules
1-30
Catalyst 4500 Series Module Installation Guide
78-13267-06

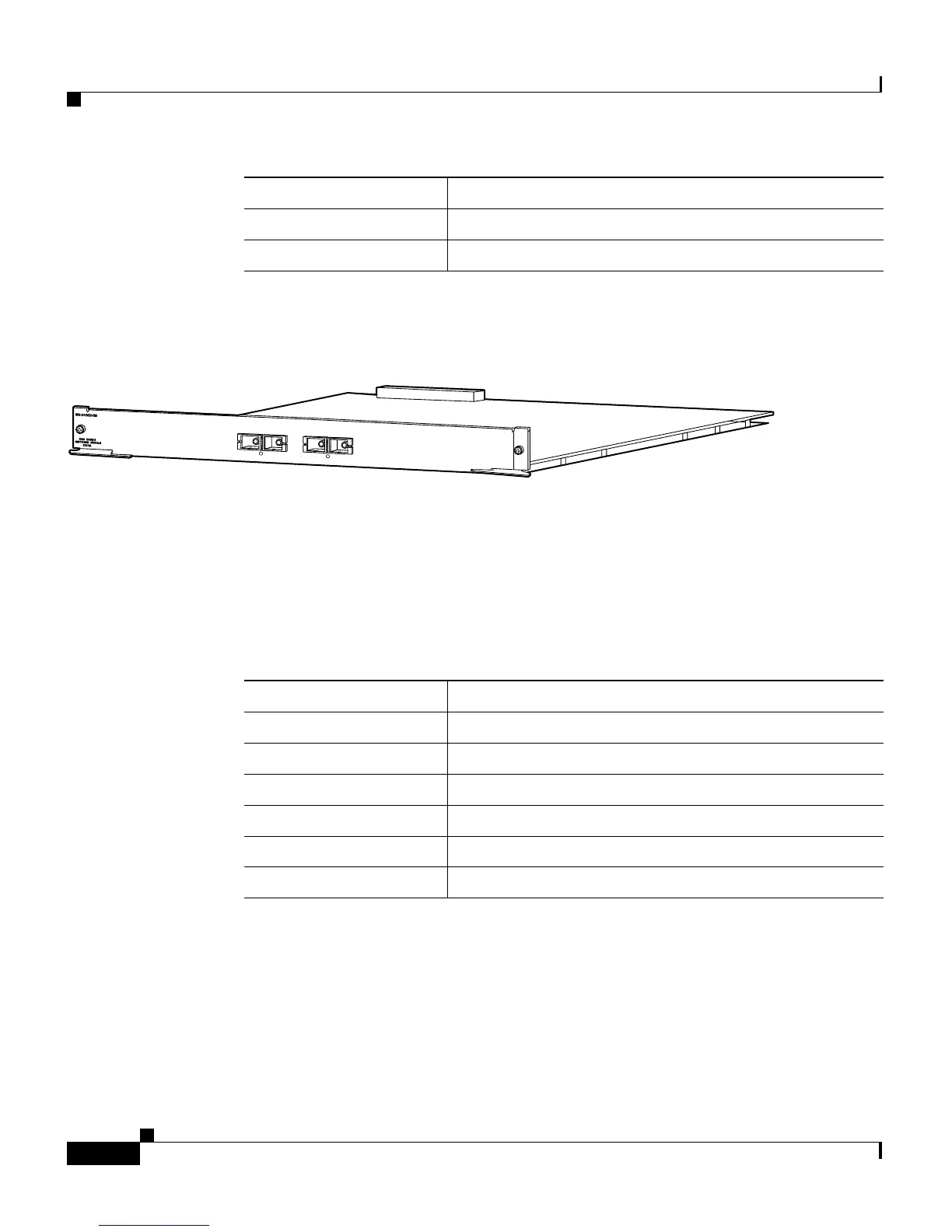

Figure 1-27 WS-X4302-GB 2-Port Gigabit Ethernet Switching Module
WS-X4306-GB
The WS-X4306-GB 6-port Gigabit Ethernet switching module (see Figure 1-28)
has the following specifications:
Connector type SC type
1
(See Figure 2-16 on page 2-18.)
Cable type MMF or SMF
1. See the “Installing, Removing, and Maintaining GBICs” section on page 2-8 for GBIC support
information.
Specification Description
94138
1
2
Specification Description
Module type 1000BASE-X Gigabit Ethernet switching module
Port duplex mode Full duplex mode
Port speed 1000 Mbps
Number of ports 6
Connector type SC type
1
(See Figure 2-16 on page 2-18.)
1. See the “Installing, Removing, and Maintaining GBICs” section on page 2-8 for GBIC support
information.
Cable type MMF or SMF

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
