Chapter 1 Module Overview and Specifications
Gigabit Ethernet Switching Modules

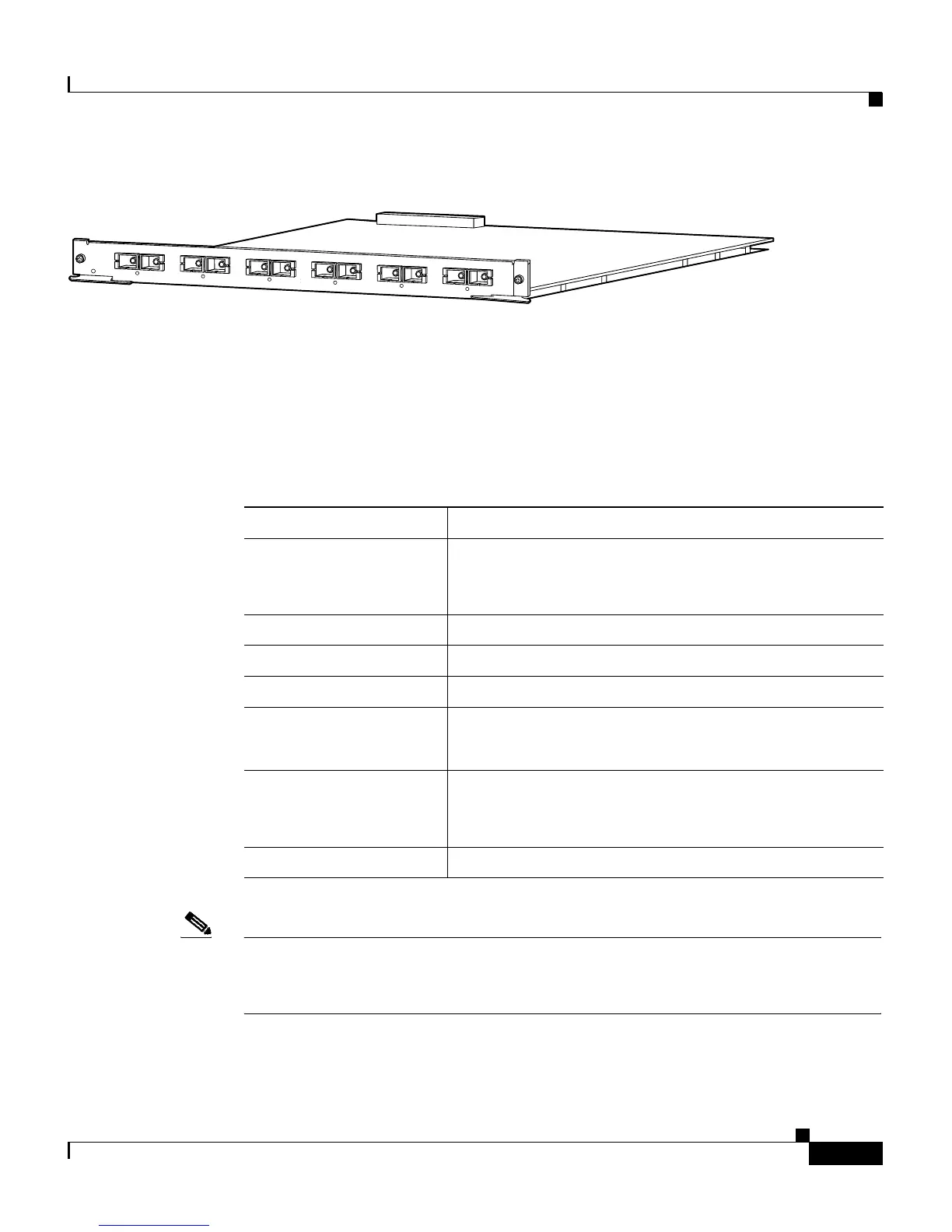

Figure 1-28 WS-X4306-GB 6-Port Gigabit Ethernet Switching Module
WS-X4506-GB-T
The WS-X4506-GB-T 6-port Gigabit Ethernet switching module (see
Figure 1-28) has the following specifications:
Note There are six10/100/1000BASE-T and six 1000BASE-X SFP Gigabit Ethernet
connectors present. Use the select media sfp | rj45 command to set whether a
specific port number uses the SFP or RJ-45 connector. SFP is the default.
16673
Specification Description
Module type 10/100/1000BASE-T Fast Ethernet with IEEE802.3af
PoE or 1000BASE-X SFP Gigabit Ethernet switching
module
Port duplex mode Half or full duplex mode
Port speed 10, 100, or 1000 Mbps
Number of ports 6 total
Connector type RJ-45 (See Figure 2-1 on page 2-2.)
LC type (See Figure 2-9 on page 2-6.)
Cable type Category 5 UTP (1000BASE-T)
MMF or SMF (1000BASE-X, LX fiber-optic cable
only)
Power over Ethernet Up to 15.4 W per powered device on all 6 ports

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
