Cisco Catalyst 4500 Series Overview

Chapter 1 Module Overview and Specifications
Supervisor Engines
1-8
Catalyst 4500 Series Module Installation Guide
78-13267-06

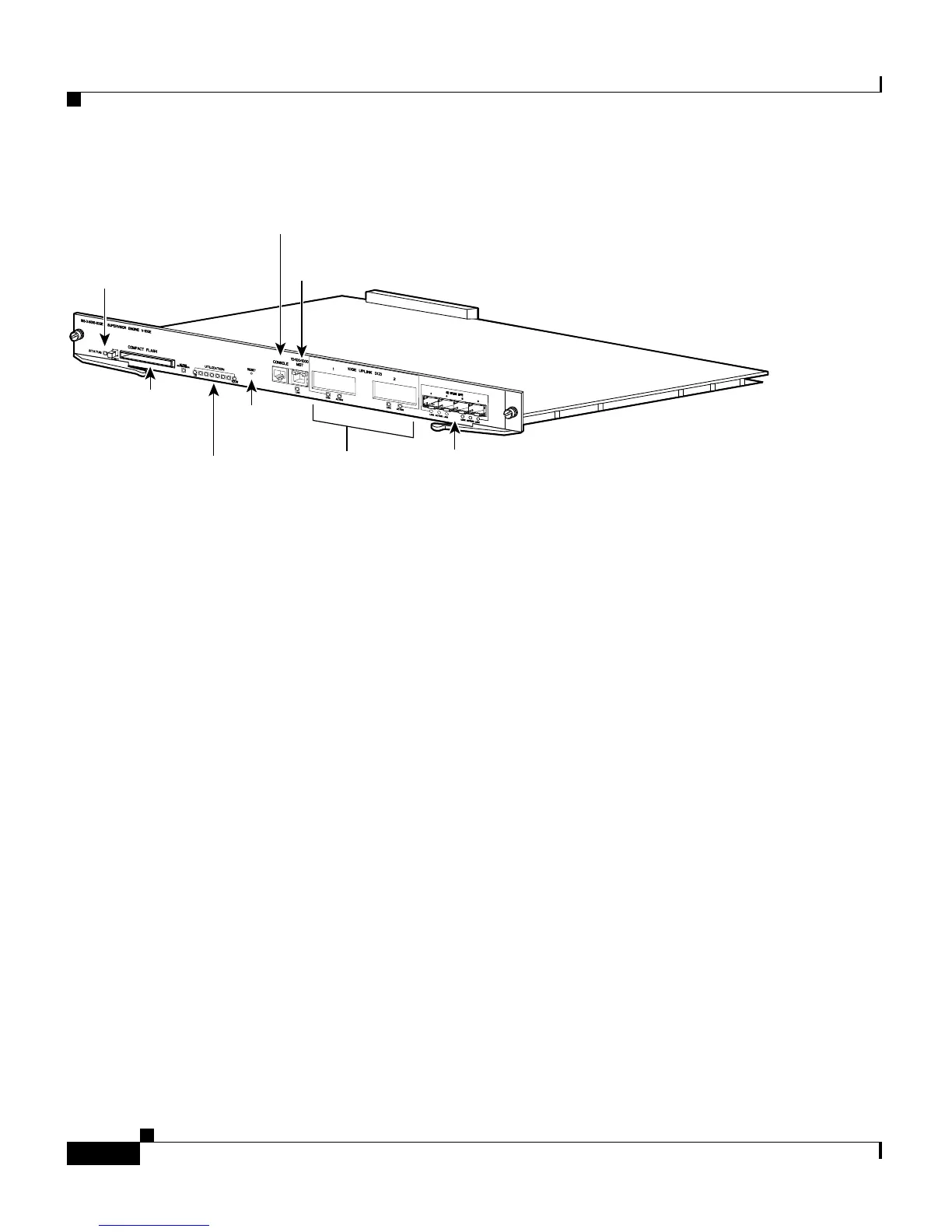

Figure 1-9 Supervisor Engine V-10GE (WS-X4516-10GE)
Front-Panel Components
The following connectors, LEDs, and buttons are located on the front panel of the
supervisor engine:
• The STATUS LED, which indicates the operating state of the module
• Two Gigabit uplink ports (WS-X4013, WS-X4013+, WS-X4014, and
WS-X4515 supervisor engines only)
• Four SFP Gigabit uplinks ports and 2 10-Gigabit uplink ports on
WS-X4013+10GE and WS-X4016-10GE.
• Eight unmarked switch load indicator LEDs, which provide an approximation
of the current traffic across the backplane
• A console port (DB-25 for the WS-X4012; RJ-45 for the WS-X4013,
WS-X4013+, WS-X4013+ TS, WS-X4013+10GE, WS-X4014, WS-X4515,
WS-X4516, and WS-X4516-10GE supervisor engines)
• An Ethernet management port (RJ-45)
• A link status LED, which provides status for the management port
(10BASE-T on the WS-X4012 and 10/100BASE-T on the WS-X4013,
WS-X4013+, WS-X4013+ TS, WS-X4013+10GE, WS-X4014, WS-X4515,
WS-X4516, and WS-X4516-10GE supervisor engines)
120474
STATUS LED
RESET
button
10 GE uplink
ports
Gigabit SFP
ports
Switch load
indicators
CONSOLE port
Ethernet
management port
Compact
Flash
port

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
