C9124AXE Connectors and Ports on the Top

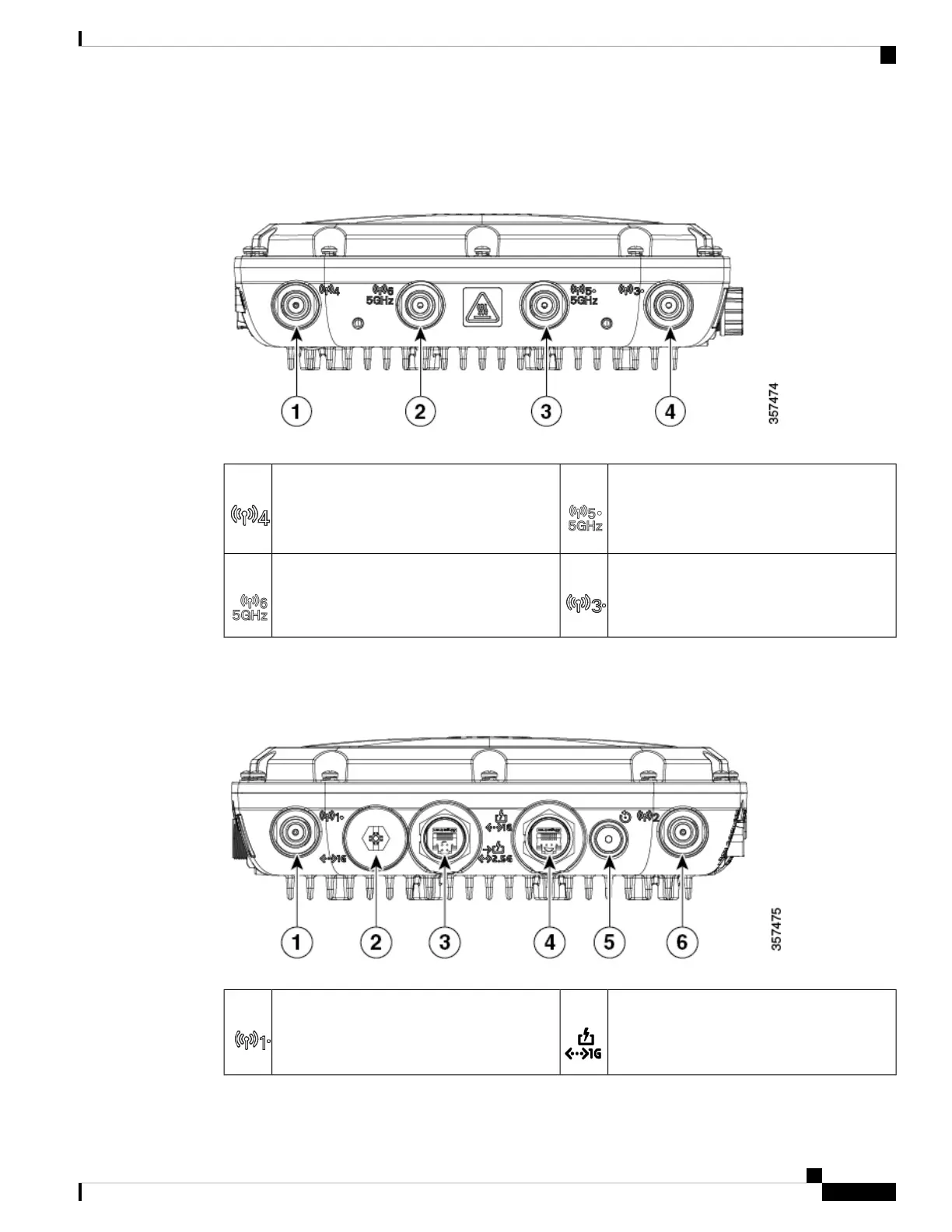

Figure 2: Model C9124AXE Top Connectors and Ports
Port 5
This port supports 5-GHz antenna only.
This port supports SIA with 5-GHz band only.
3Port 41
Port 3
This port supports SIA.
4Port 6
This port supports 5-GHz antenna only.
2
C9124AXE Connectors and Ports on the Base
Figure 3: Model C9124AXE Base Connectors and Ports
1 Gig PSE (PoE-OUT) Ethernet Port4Port 1
This port supports SIA.
1
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
9
Hardware Features
Connectors and Ports on the AP

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
