C9124AXI and C9124AXD Connectors and Ports on the Base

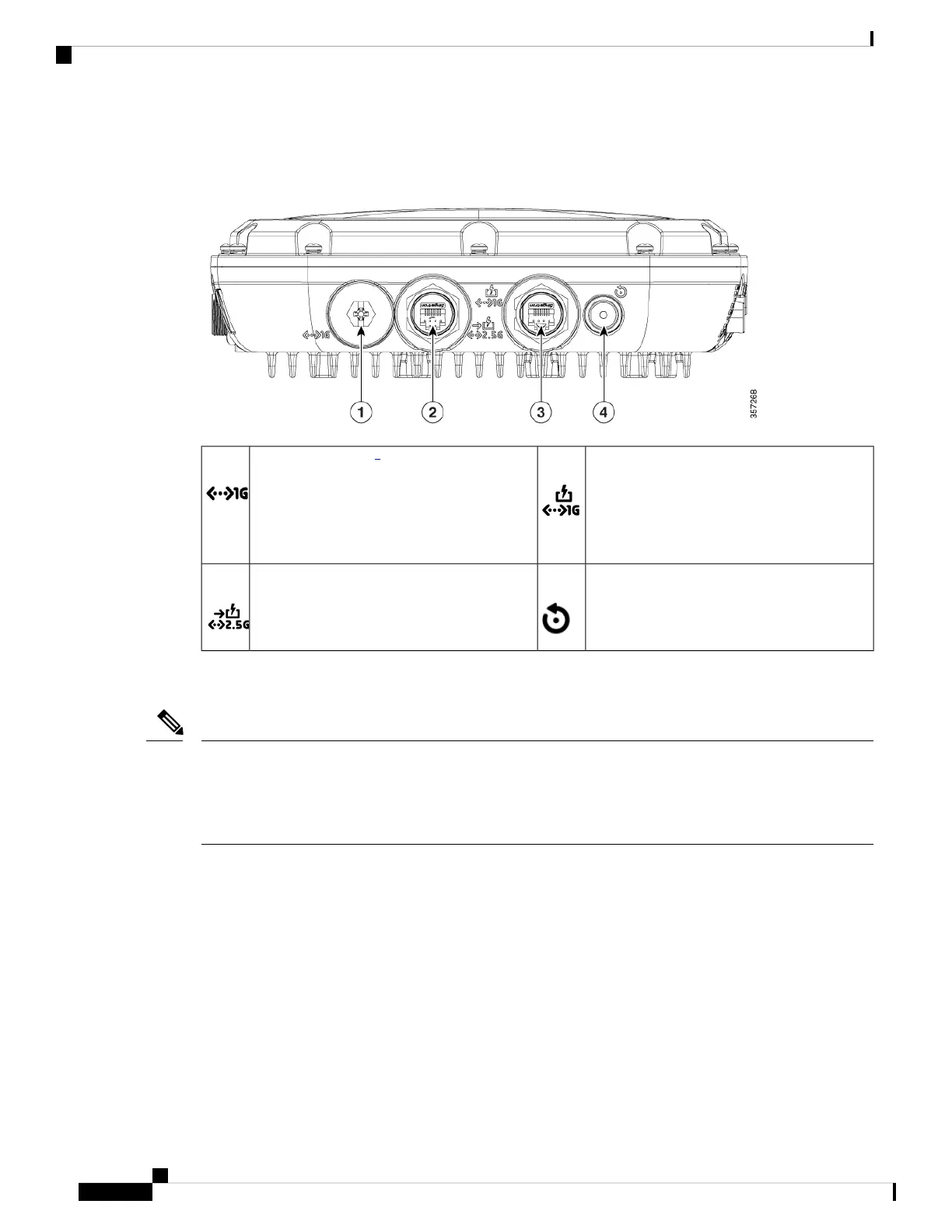

Figure 1: Models C9124AXI and C9124AXD Base Connectors and Ports

1 Gig PSE (PoE-OUT) Ethernet Port3SFP port for uplink

. The SFP port only

supports DC power IN.

If the port is not used, do not remove the

covering plug. Otherwise, it might lead to

water leaking into the AP

Reset / Status LED42.5G mGig PD (PoE-IN) Ethernet port2

Use the SFP port or the Gigabit Ethernet port as the uplink port. However, if you do this, you cannot

use the Ethernet port as a local client port. Connectors on the Sides

Using SFP port for uplink uses wired0 MAC address as the source-MAC even though the packets get routed

out from the wired1 interface. So all data packets going out of the AP, including the 802.1x packets use the

wired0 MAC address.

The only exception is the CDP and LLDP packets that would use the wired1 MAC address as the source-MAC.

Note

Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide

Hardware Features

Connectors and Ports on the AP
