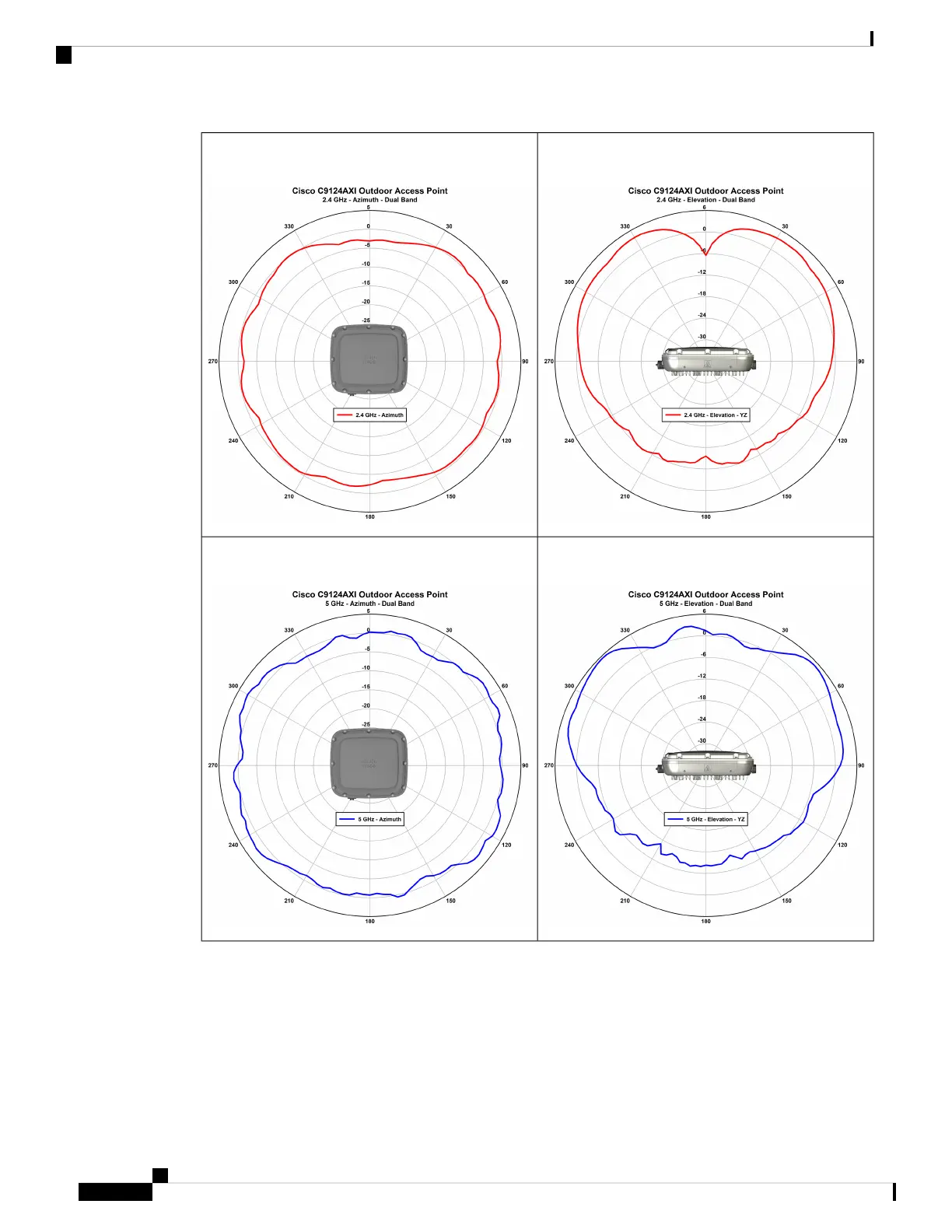

Figure 6: C9124AXI–Dual-Band Antenna Radiation Pattern (2.4–GHz
Elevation)
Figure 5: C9124AXI–Dual-Band Antenna Radiation Pattern (2.4–GHz
Azimuth)
Figure 8: C9124AXI–Dual-Band Antenna Radiation Pattern (5–GHz
Elevation)
Figure 7: C9124AXI–Dual-Band Antenna Radiation Pattern (5–GHz
Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
12
Hardware Features
C9124AXI (Internal Antenna) Model: Antenna Radiation Patterns
