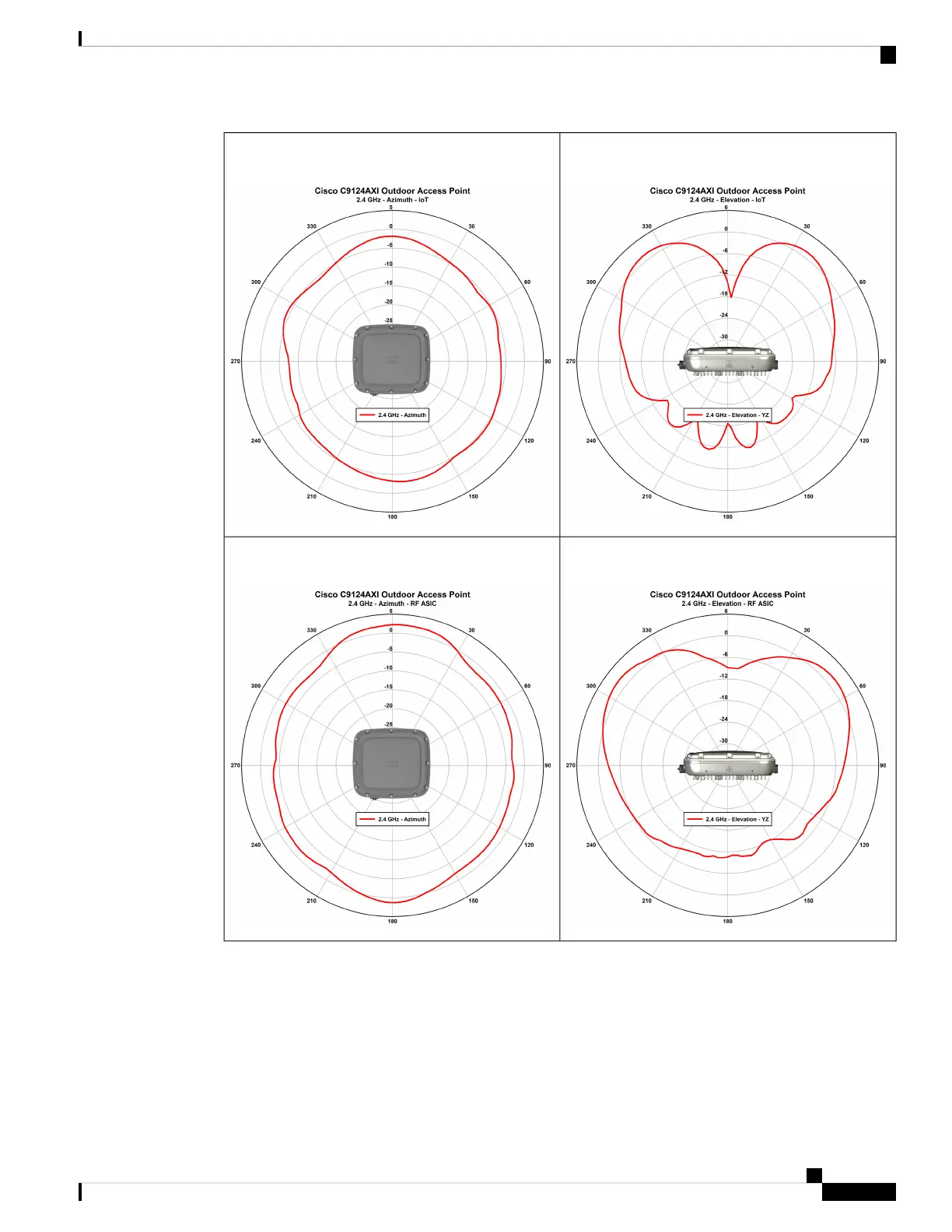

Figure 10: C9124AXI–IoT Antenna Radiation Pattern (2.4–GHz
Elevation)
Figure 9: C9124AXI–IoT Antenna Radiation Pattern (2.4–GHz
Azimuth)
Figure 12: C9124AXI–AUX RF ASIC Antenna Radiation Pattern
(2.4–GHz Elevation)
Figure 11: C9124AXI–AUX RF ASIC Antenna Radiation Pattern
(2.4–GHz Azimuth)
