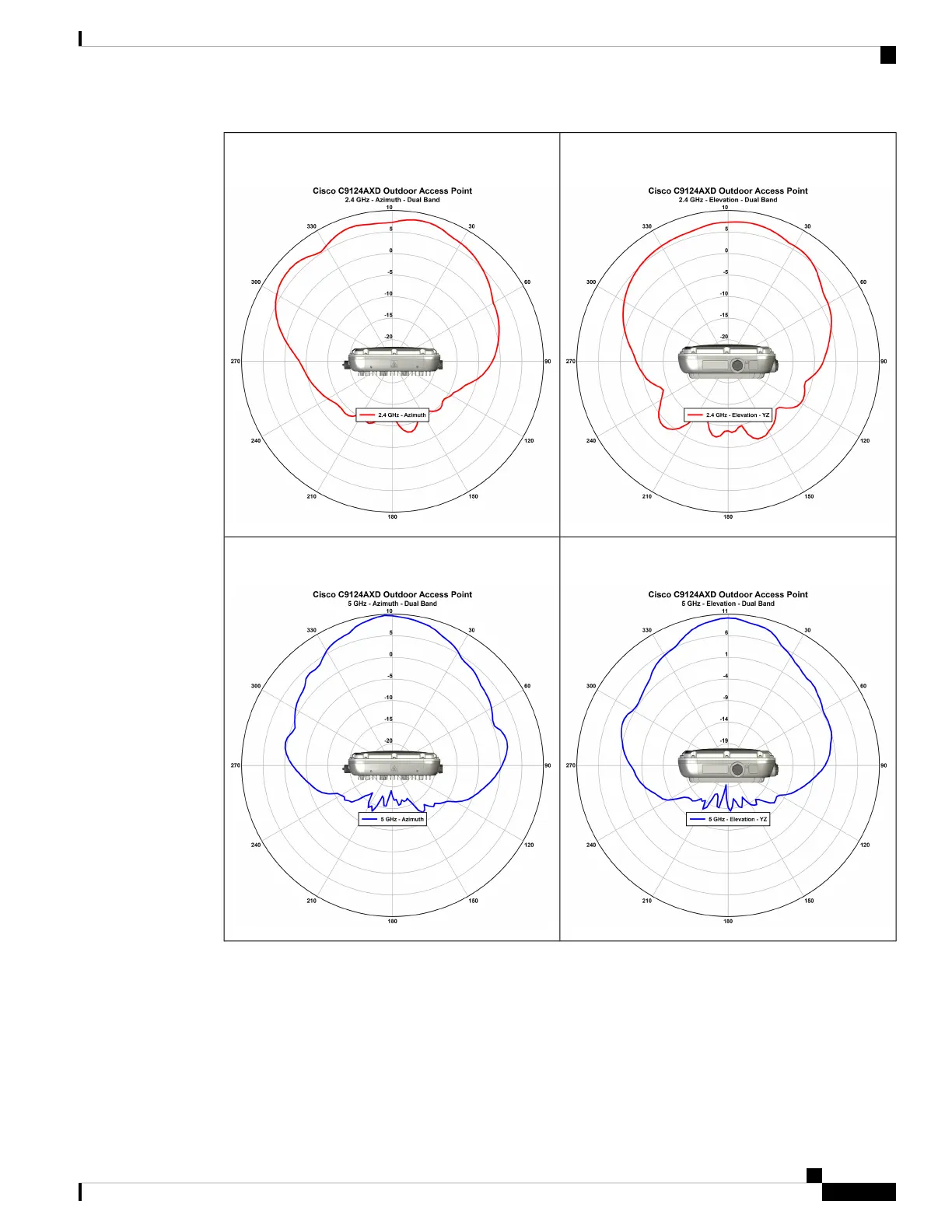

Figure 16: C9124AXD–Dual-Band Antenna Radiation Pattern
(2.4–GHz Elevation)
Figure 15: C9124AXD–Dual-Band Antenna Radiation Pattern
(2.4–GHz Azimuth)
Figure 18: C9124AXD–Dual-Band Antenna Radiation Pattern (5–GHz
Elevation)
Figure 17: C9124AXD–Dual-Band Antenna Radiation Pattern (5–GHz
Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
15
Hardware Features
C9124AXD (Directional Antenna) Model: Antenna Radiation Patterns
