Cisco Catalyst 9124AX Series - Page 24

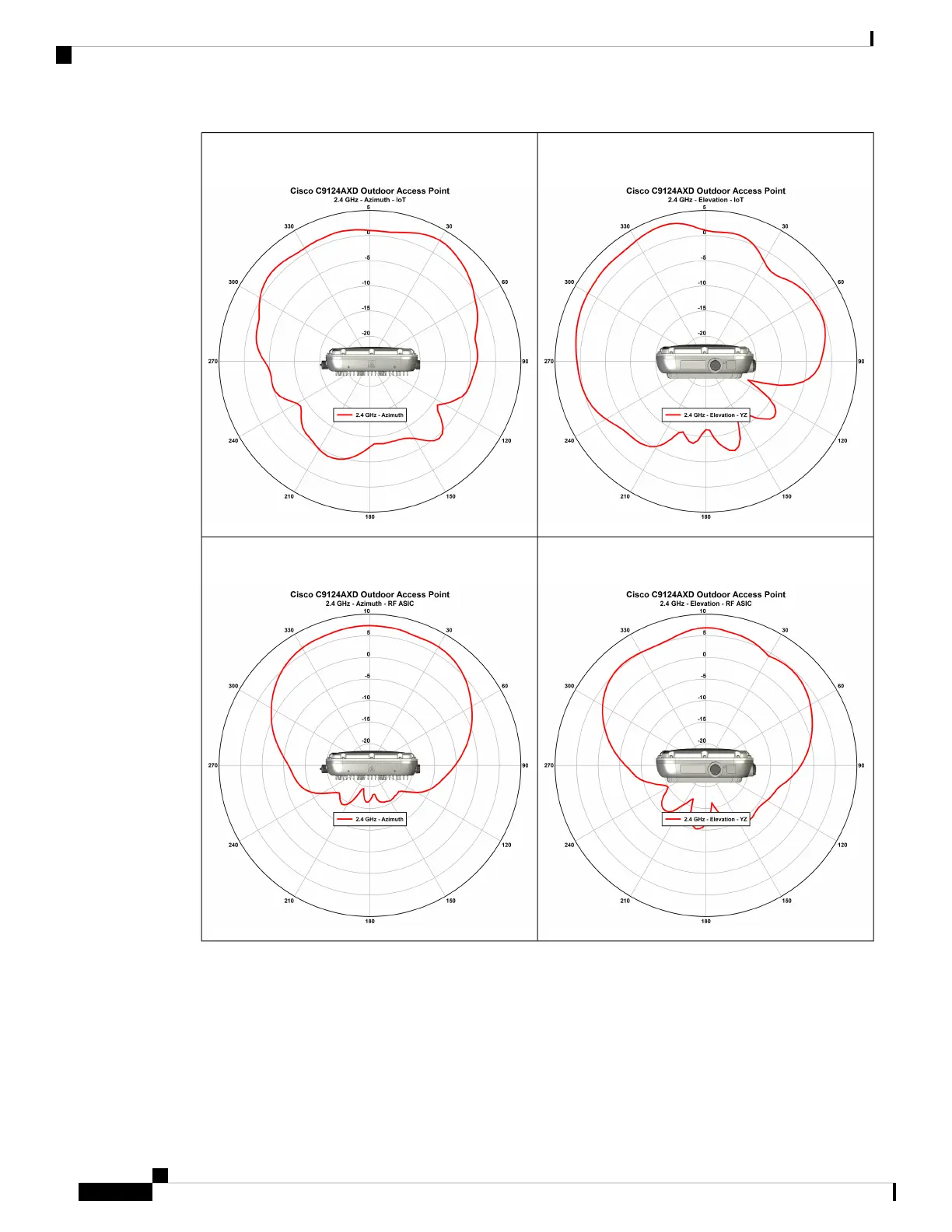

Figure 20: C9124AX–IoT Antenna Radiation Pattern (2.4–GHz
Elevation)
Figure 19: C9124AX–IoT Antenna Radiation Pattern (2.4–GHz
Azimuth)
Figure 22: C9124AXD–AUX RF ASIC Antenna Radiation Pattern
(2.4–GHz Elevation)
Figure 21: C9124AXD–AUX RF ASIC Antenna Radiation Pattern
(2.4–GHz Azimuth)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
16
Hardware Features
C9124AXD (Directional Antenna) Model: Antenna Radiation Patterns
