Cisco Catalyst 9124AX Series User Manual

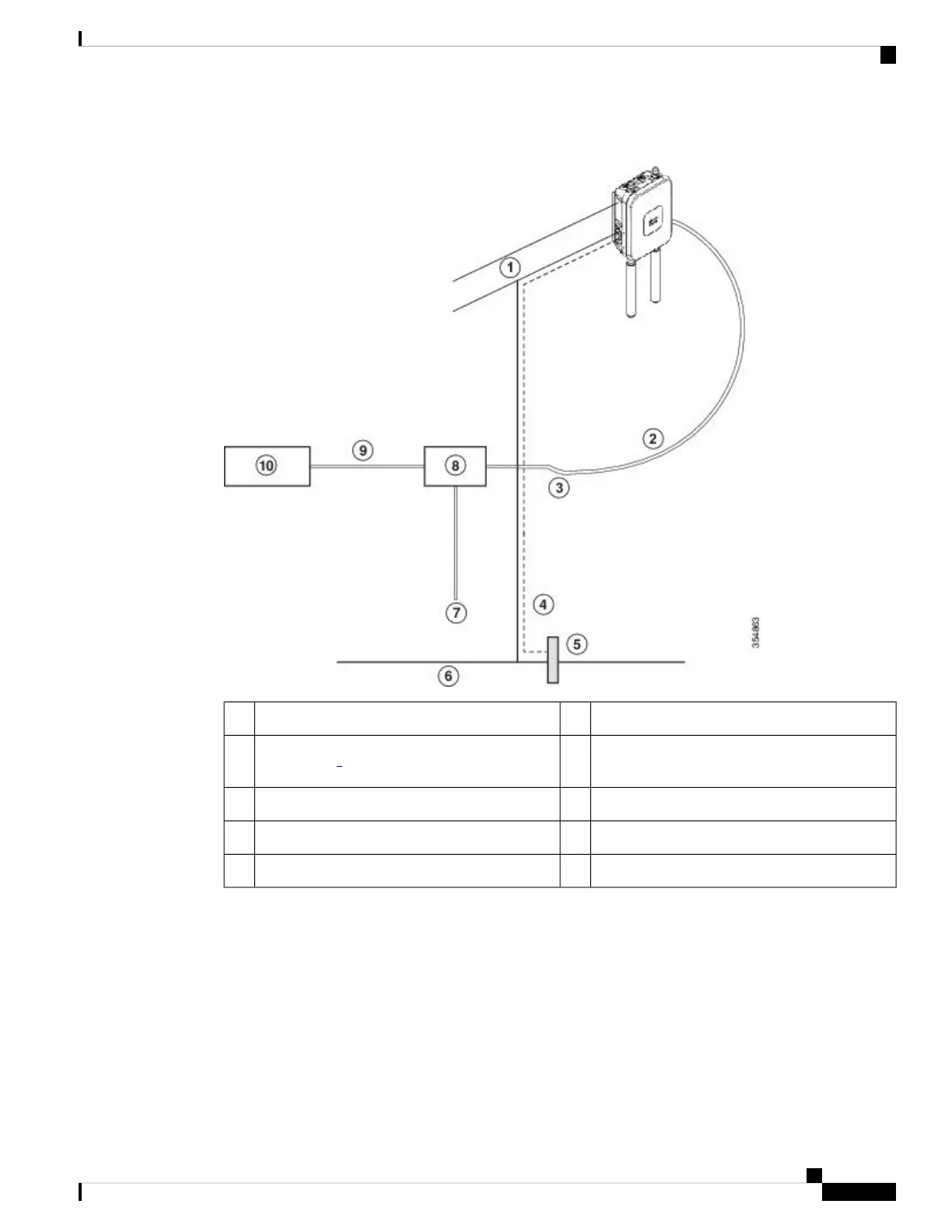

Figure 51: Components in a Typical Access Point Installation
Ground6Building roof overhang1
Power cord7Shielded outdoor-rated Ethernet (CAT5e or
better) cable
3
2
Power injector8Water drip loop3
Shielded Ethernet (CAT5e or better) cable
1
96-AWG copper grounding wire
1
4
Controller (through a switch)10Ground rod
1
5
3
Independently sourced by the user.
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
33
Unpacking Your Access Point
Typical Access Point Installation Components

Cisco Catalyst 9124AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
MIMO	4x4
IP Rating	IP67
Spatial Streams	4
Power Options	802.3at PoE+, DC power adapter
Radios	Dual Radio (2.4 GHz and 5 GHz)
Antenna	Internal
Power over Ethernet	Yes
Mounting	Wall, ceiling, pole
Weight	1.2 kg
Security	WPA3, WPA2, WPA
Management	Cisco DNA Center, CLI, WebUI
Ethernet Ports	1 x 10/100/1000/2500 Multigigabit Ethernet (RJ-45)
Dimensions	220 x 220 x 66 mm
