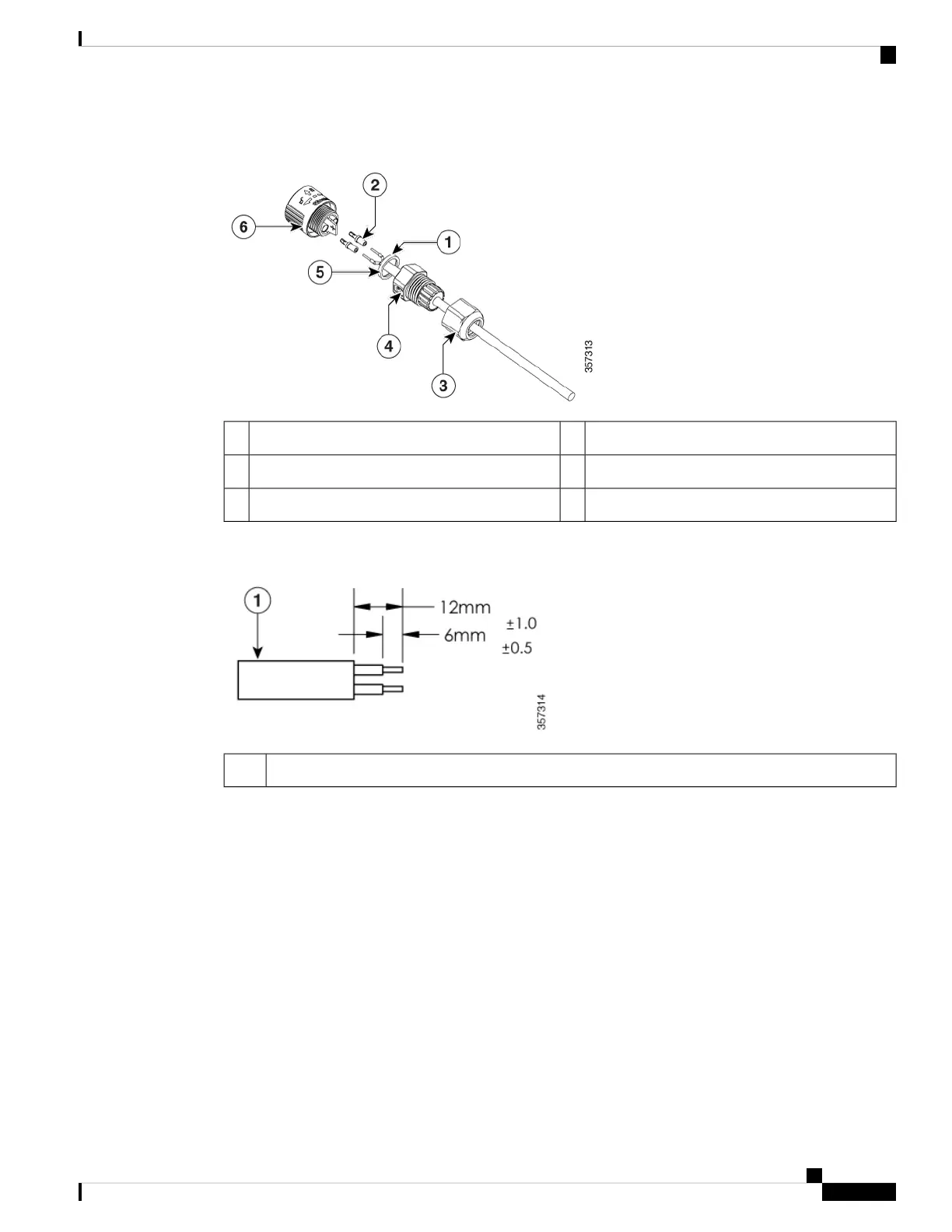

Figure 78: Terminating DC plug to the cable

Grommet and Seal Ring4DC 2-conductor 18 AWG cable1

Gasket5Crimp Pins2

Connector body6Seal Nut3

Figure 79: Wire Stripping Length

cable1

a) Dis-assemble the DC plug .

b) Pass the cable through the plug components.

c) Strip the cable end.

Remove the wire jacket and tin the wire strands. Tinning the strands helps to insert the wire

into the crimp pins.

Note

d) Insert wire conductor into crimp pins. Using a 0.10 inch (2.54 mm) Hex crimp tool, crimp the pin to the

wire to secure it in place. Repeat for the second pin. If you must re-do the crimping process, you can use

the 2 extra pins supplied.

e) Insert the crimped pins and wire into the female barrel of the connector body. Be sure to insert the proper

wire polarity into the corresponding barrel shown on the body. Push to be sure the pin is fully seated into

the barrel.

Pin 1 (+V) Pin 2 (-V), the connector body is marked (+) and (-) to show polarity pin assignments.

Note

Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide

Installation Overview

Connecting a DC Power Cable to the Access Point
