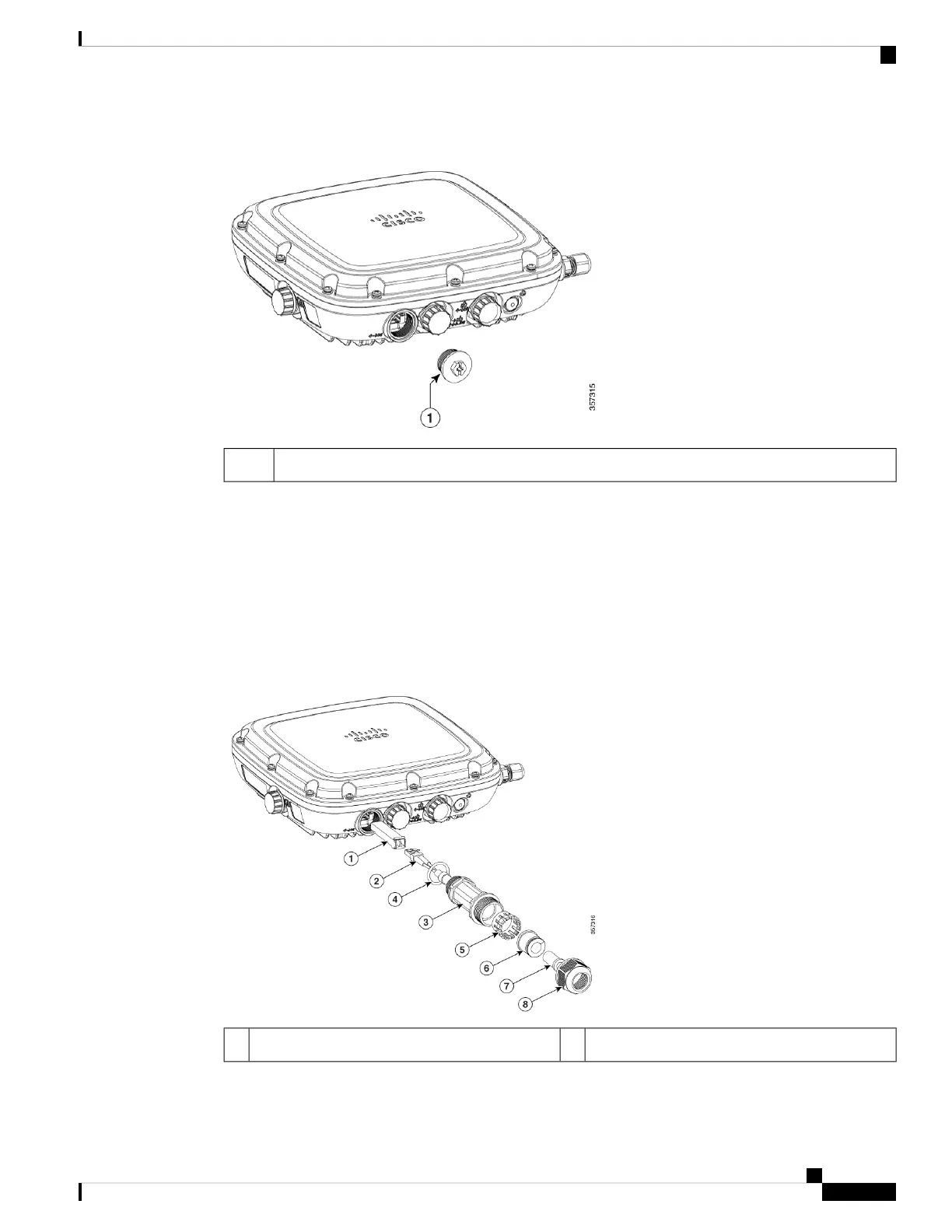

Figure 83: Removing the SFP port plug

SFP Port Plug1

Do not discard the plug unless you are sure the SFP port will never need to be sealed in the future.

a) Place the AP on its back (resting on the heat fins) on a stable but padded surface to avoid scratching the

paint.

b) Using a 12-mm wrench or large flat blade, or Philips screwdriver, turn the SFP port plug counterclockwise

and remove it.

Step 3 Insert the SFP module into the SFP port and ensure that it latches properly.

Step 4 Loosen and dis-assemble the SFP adapter gland components.

Figure 84: Exploded view of Fiber-Optic cable and Gland assembly

Gland Compression Ferrule5SFP Transceiver Module1

Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide

Installation Overview

Connecting a Fiber-optic Cable to the AP (AIR-SFP-KIT1=)
