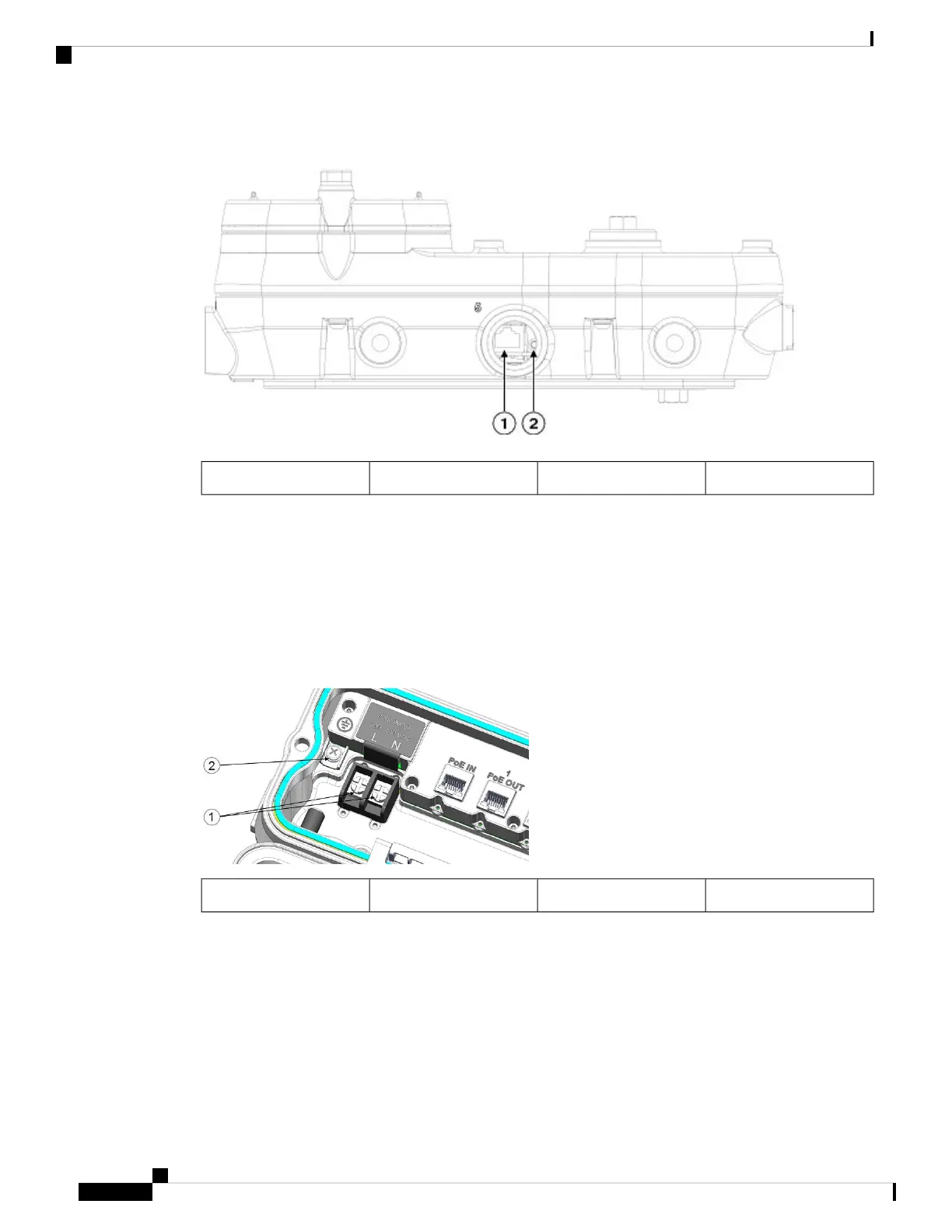

Figure 3: W-6300H Access Point Console Port and Reset Button
Reset button2Console port1
Inspect the seal of the plug and properly tighten it at the time of installation, and also every time the plug is
removed and replaced. Tighten the plug to 5-6 lb-ft. If you do not tighten the plug properly, it will not meet
IP66/67 criteria, and may lead to water leaking into the unit.
Power Connector
The following figure shows the power connector of access point model IW-6300H-AC-x-K9.
Figure 4: Power Connector of Access Point Model IW-6300H-AC-xK9
Internal ground2AC Power-IN1
The following figure shows the power connector of access point model IW-6300H-DCW-x-K9.
Cisco Catalyst IW6300 Heavy Duty Series Access Point Hardware Installation Guide
6
Overview
Power Connector
