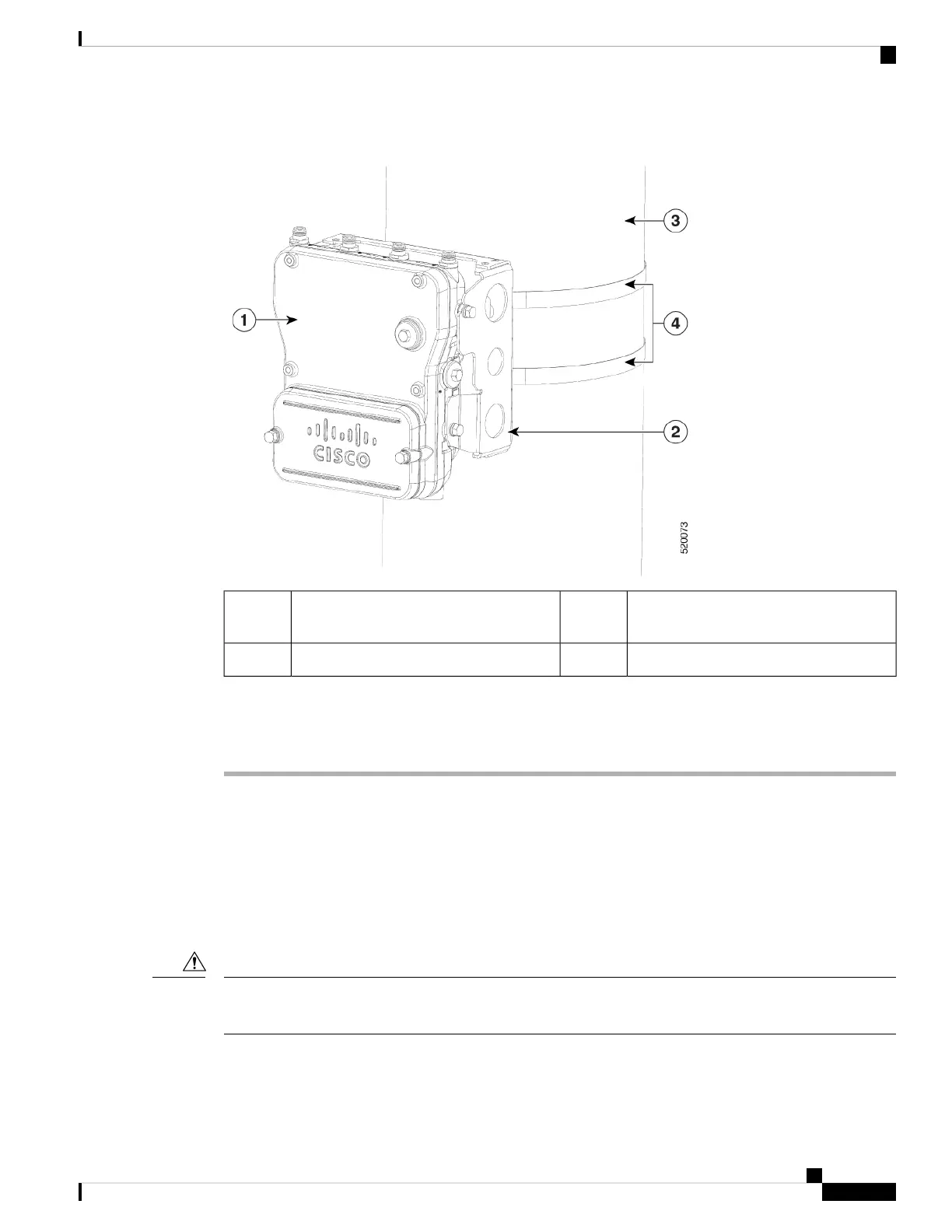

Figure 20: Assembled Access Point Hanging in Mounting Bracket
Pole (wood, metal, or fiberglass)2 to 16 in.
(5.1 to 40.6 cm) diameter
3Access point1
Stainless steel mounting straps4Mount bracket2
Step 14 When using the Cisco Aironet Dual-Band Omnidirectional Antennas, connect them to the access point.
Hand-tighten the antennas to the access point.
Step 15 Continue with Grounding the Access Point , on page 38 and Powering the Access Point, on page 40.
Working with the Access Cover
This section details opening and closing the access cover of the access point.
Opening the Access Cover
The access cover must not be opened unless the area is considered non-hazardous and the AP has been powered
off.
Caution
You need to open the access cover to access the AC or DC terminal block, the Ethernet ports, and when you
are installing the fiber-optic SFP module.
Cisco Catalyst IW6300 Heavy Duty Series Access Point Hardware Installation Guide
33
Installing the Access Point
Working with the Access Cover

Cisco Catalyst IW6300 Series Specifications

General

Model	Cisco Catalyst IW6300 Series
Category	Wireless Access Point
MU-MIMO	Yes
Ingress Protection	IP67
Power Options	PoE, DC power
Frequency Bands	2.4 GHz and 5 GHz
MIMO	4x4
Input Power	48V DC
Power over Ethernet	802.3at
Mounting	Wall, Pole, Ceiling
Security	WPA3
Management	Cisco DNA Center
