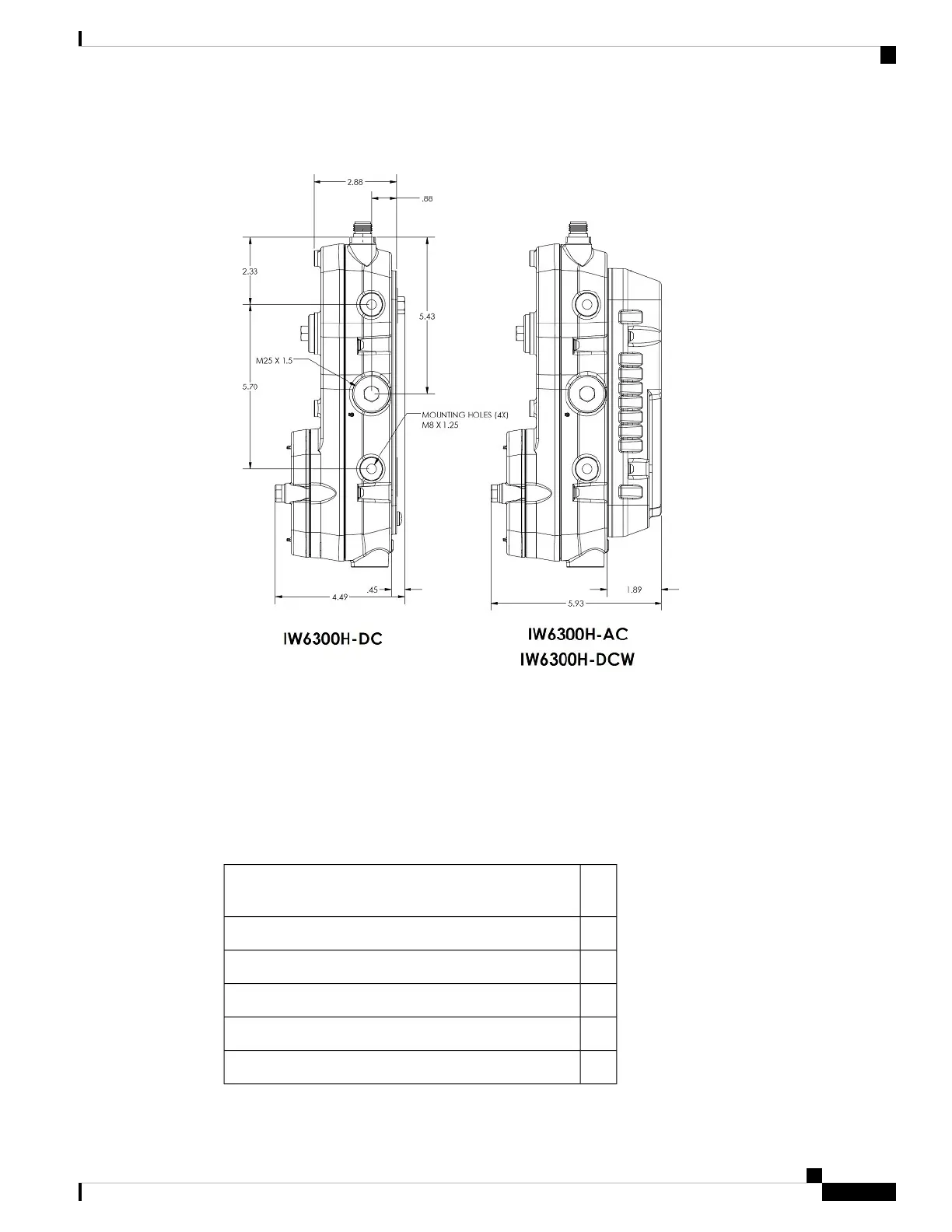

Figure 10: Unit Dimension - Side
Mounting the Access Point on a Wall
The optional pole mount kit contains a mounting bracket for wall mounting. You can use the mounting bracket
as a template to mark the positions of the mounting holes for your installation. You then install the mounting
plate, and attach the access point when you are ready. The following table lists the material that you will need
to provide in addition to the pole mount kit.
Table 3: Material Needed to Mount Access Point to a Vertical Wall
In
Kit
Materials Required
YesGround lug and screws (provided with access point)
NoCrimping tool for ground lug
NoFour M8 or 5/16 in. (31 mm) screws
NoFour wall anchors (specified for wall material)
NoDrill bit for wall anchors
