A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022
Warning
When installing or replacing the unit, the ground connection must always be made first and disconnected last.
Statement 1046
Warning
Always install the ground wire before connecting all power leads.
Caution
Procedure
Step 1 Open the access point cover. See Opening the Access Cover, on page 33 for instructions.
Step 2 Ensure a 6 AWG (13.3 mm
2
) ground wire is connected to the access point (see Grounding the Access Point
, on page 38).
Step 3 Route the AC power cable through the 1/2-NPT port.

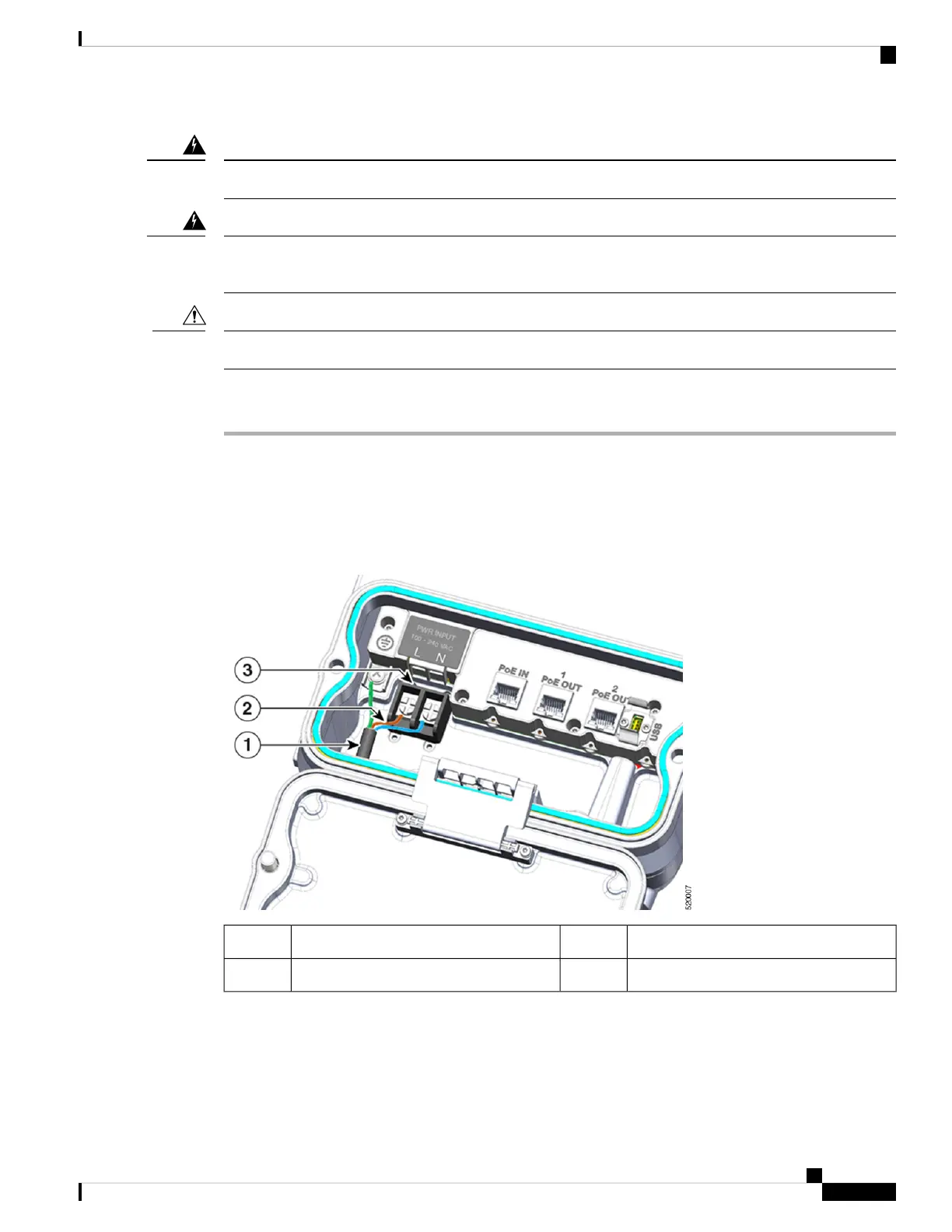

Figure 24: Connecting Internal Ground and AC Power Connection for IW-6300H-AC-X-K9
Terminal block3Customer-supplied harness1
Customer-supplied cable (ATEX only)2
Step 4 Use a wire stripper tool to remove the insulation from each wire. Remove only enough wire to provide a solid
connection in the terminal block. The hot wires should have no bare wire exposed after the connection is
made.
Step 5 Insert the ground wire into the internal ground.
Cisco Catalyst IW6300 Heavy Duty Series Access Point Hardware Installation Guide
43
Installing the Access Point
Connecting AC Power to IW-6300H-AC-x-K9
