Cisco 1800 Series Integrated Services Routers (Fixed) Hardware Installation Guide
OL-6425-03
Chapter 7 Installing and Upgrading Internal Modules
Removing and Installing CompactFlash Cards

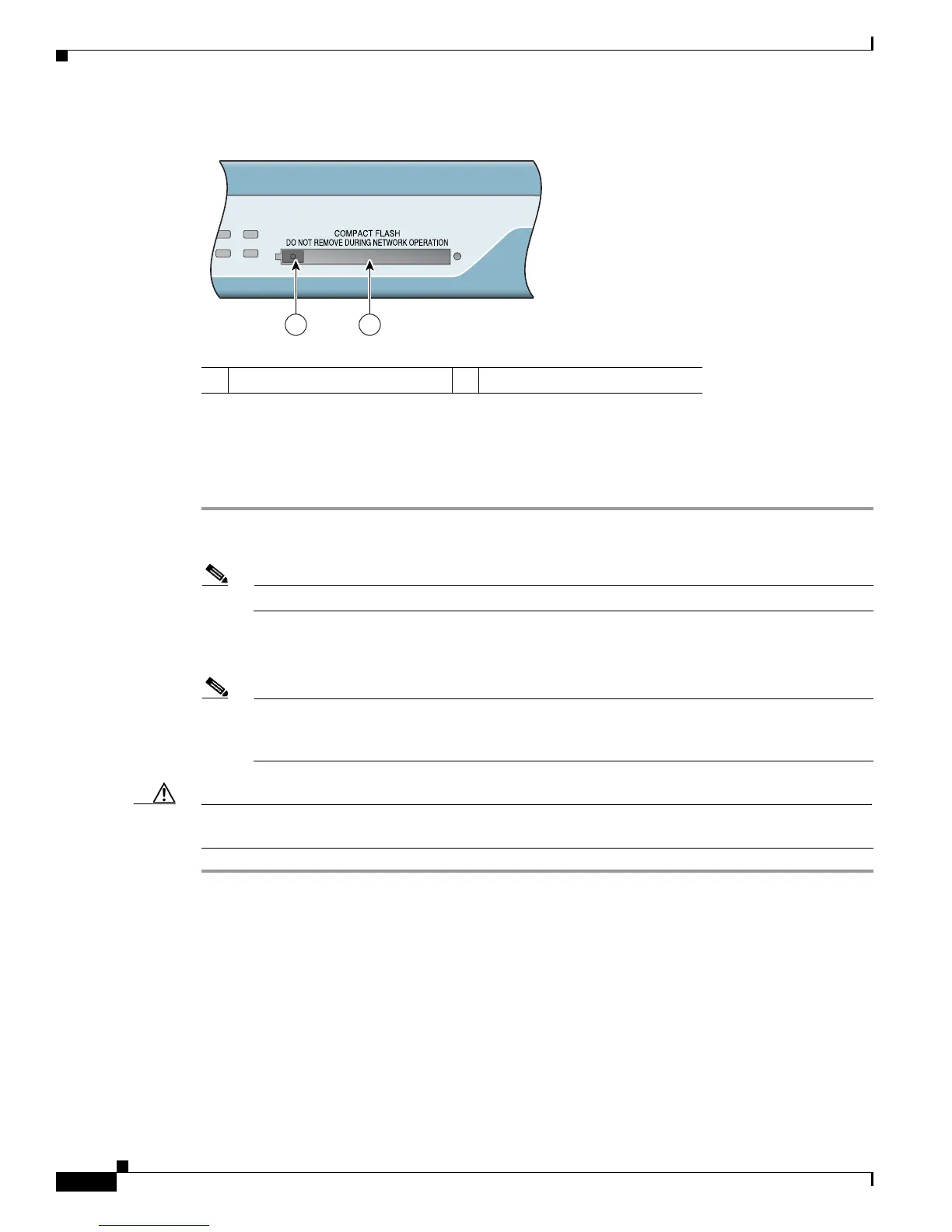

Figure 7-5 CompactFlash Memory Card Slot in Cisco 1800 Series Fixed-Configuration Routers
Installing a CompactFlash Memory Card
To install a CompactFlash memory card, perform the following steps (see Figure 7-5):
Step 1 Make sure that the ejector button is pressed flush with the front panel, so that it does not project beyond
the panel.
Note If the ejector button is projecting beyond the panel, push it in until it is flush with the bezel.
Step 2 Insert the CompactFlash memory card into the slot until it is fully seated. The ejector button remains
flush with the panel.
Note If the ejector button is projecting from the panel after you insert the CompactFlash memory card,
remove the CompactFlash memory card, press the ejector button until it clicks, and reinsert the
CompactFlash memory card.
Caution To prevent damage to the ejector mechanism, the ejector button must remain pressed flush against the
front panel when it is not being used to eject a CompactFlash memory card.
1 CompactFlash slot 2 Ejector button
B2 CF
PPP VPN
Cisco 1
127170
12
