Appendix B Installation In a Hazardous Environment
Adding Modules to the Switch

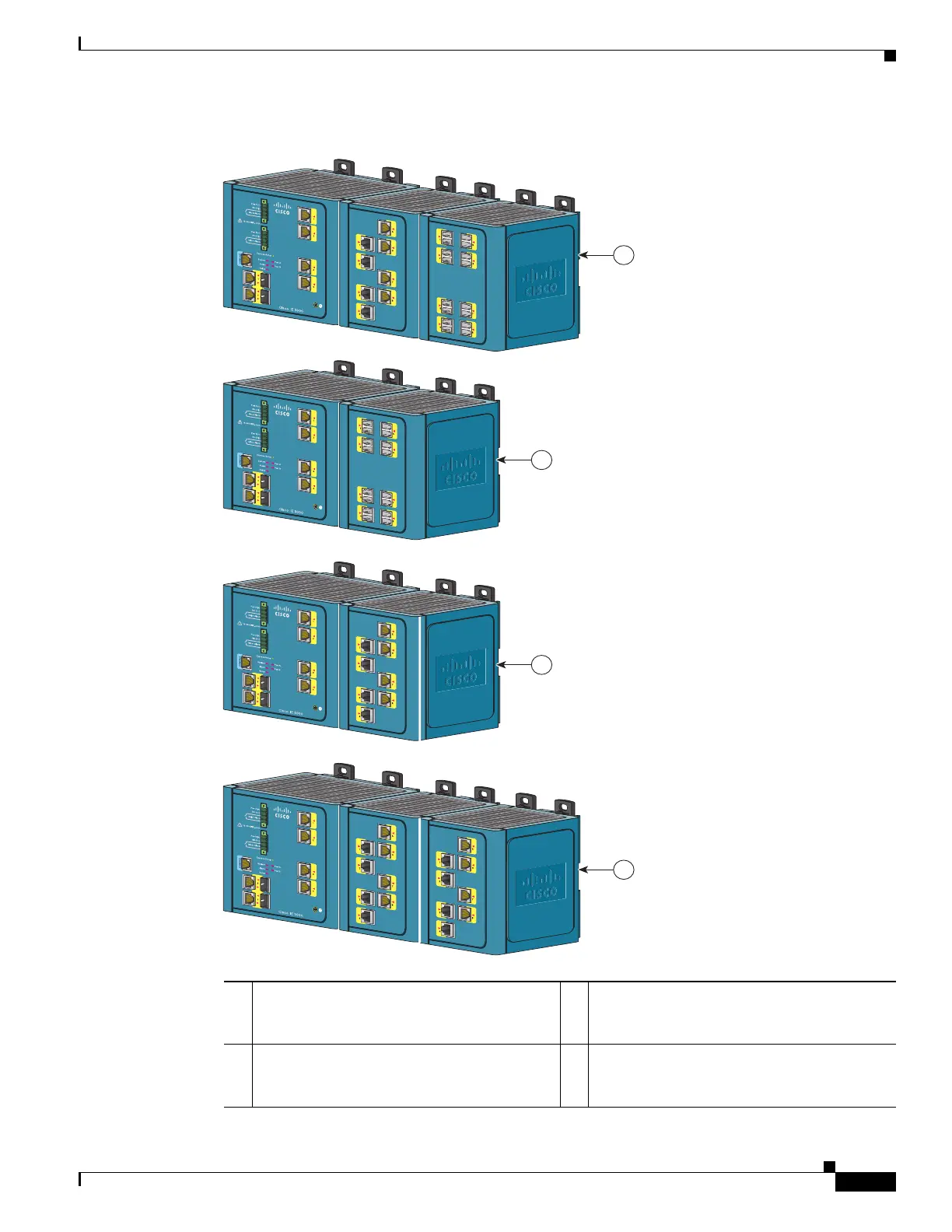

Figure B-1 Sample Combinations of Expansion Modules
1 IE-3000-4TC switch with IEM-3000-8TM
and Cisco IEM-3000-8FM expansion
modules (12 FE and 8 FX ports)
3 IE-3000-4TC switch with one
IEM-3000-8TM expansion modules (12 FE
ports)
2 IE-3000-4TC switch with one
IEM-3000-8FM expansion module (4 FE and
8 FX ports)
4 IE-3000-4TC switch with two
IEM-3000-8TM expansion modules (20 FE
ports)
1
2
3
4
201827

Cisco IE 3000 Specifications

General

Operating Temperature	-40 to 75°C (-40 to 167°F)
DRAM	128 MB
Flash Memory	32 MB
Uplink Ports	2 x 10/100/1000Base-T or SFP
MAC Address Table Size	8000
Mounting	DIN rail, Wall
