Cisco IE 3000 Hardware Installation Guide

C-4
Cisco IE 3000 Switch Hardware Installation Guide
Appendix C Cable and Connectors
Connector Specifications
For information about configuring and monitoring PoE ports, see the switch software configuration
guide.
SFP Transceiver Ports
The switch uses SFP transceivers for fiber-optic uplink ports (see Figure C-3) and for copper SFP ports
(see Figure C-4). See the switch release notes for a list of supported SFP transceivers.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments.

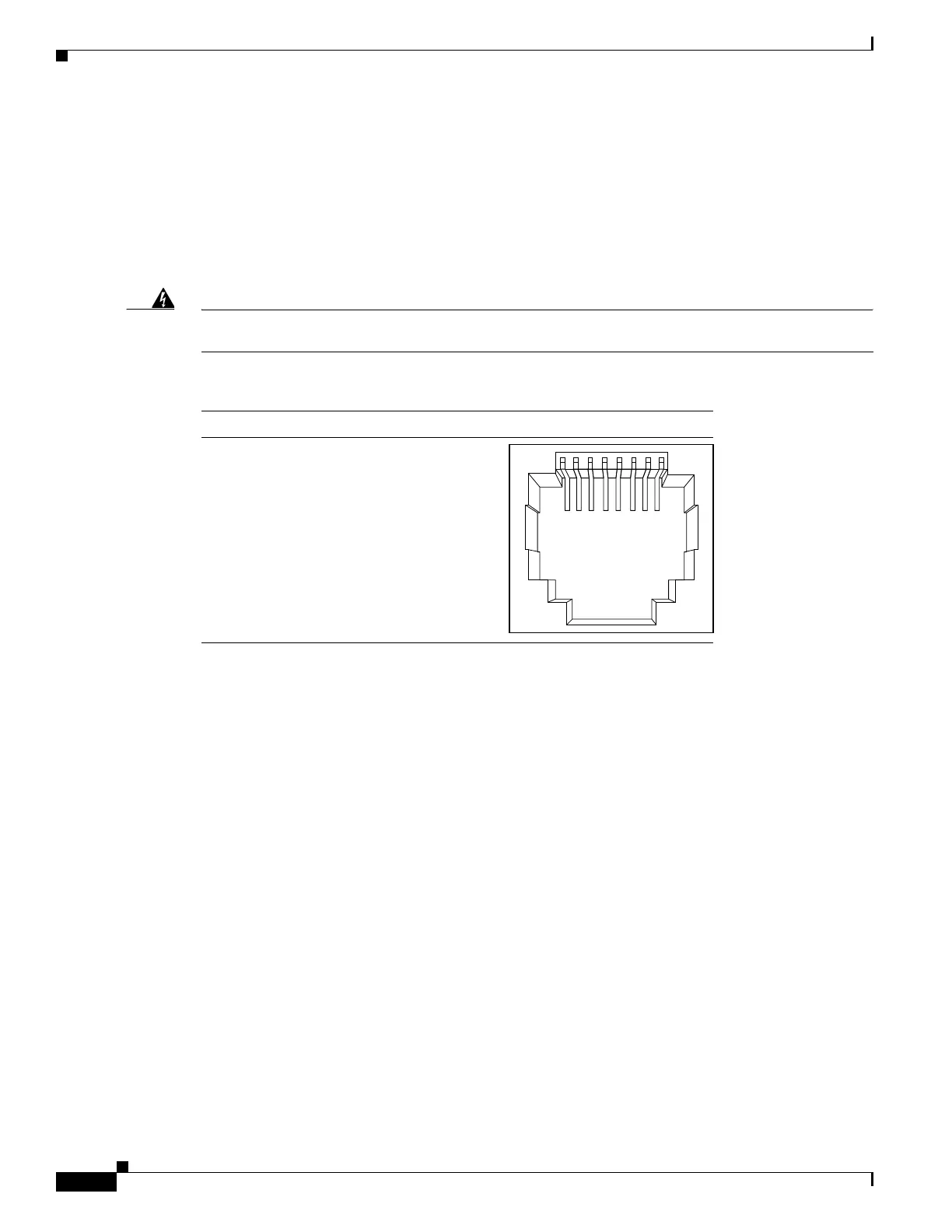

Figure C-4 Copper SFP Transceiver RJ-45 Connector
60915
2 31 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
